462 - brake piping (chassis) for Nissan Presage NU30

	Frame / Series NU30 / U30 body W (wagon ) engine KA24DE (gasoline 2400) drive 4WD (4 wheel drive ) Manufacture period 06.1998 - 08.2001 grade C1 transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec

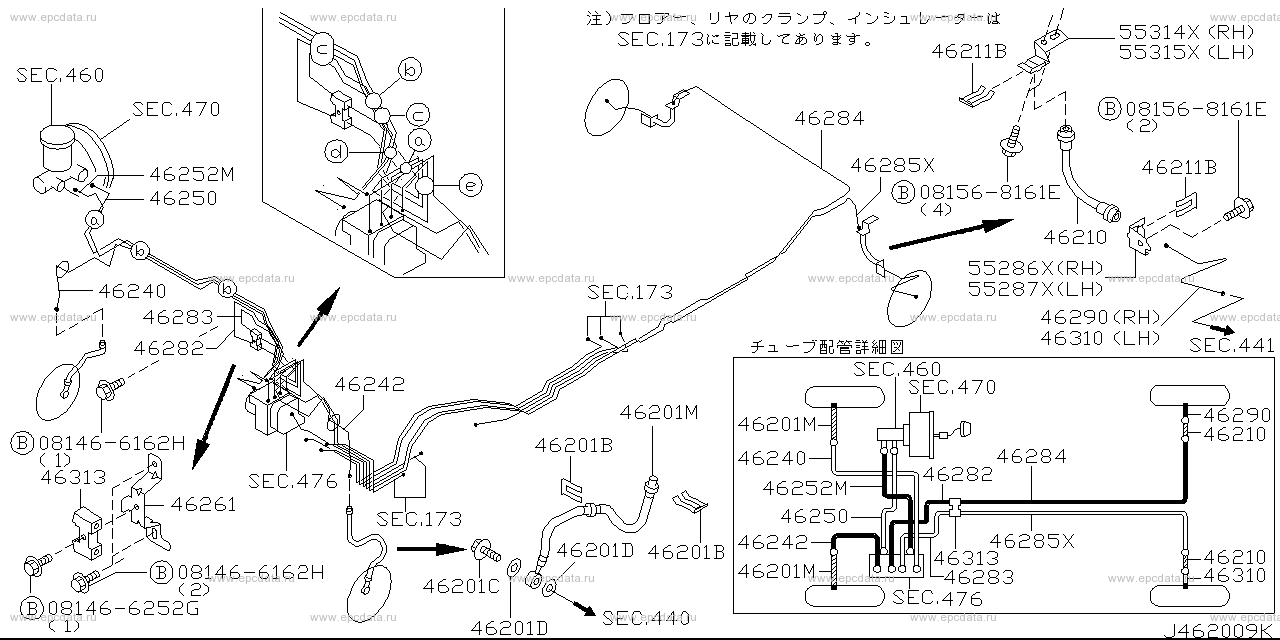

W.4WD.KA24DE	06.1998 - 10.1999	パイピング

Open full screen picture Up to the top

081466162H 081466252G 081568161E 081568202F 081A68162A 46201B - spring, lock brake hose 46201C - bolt, union front brake hose 46201D - gasket, brake hose 46201M - hose assembly, brake front 46210 - hose assembly, brake rear 46211B - spring, lock brake hose 46240 - tube assembly, brake front RH 46242 - tube assembly, brake front LH 46250 - tube assembly, brake front master cylinder 46252M - tube assembly, brake rear master cylinder 46261 - bracket, brake tube 46282 - tube assembly, brake rear 46283 - tube assembly, brake rear 46284 - tube assembly, brake rear 46285X - tube assembly, brake rear 46286N - tube assembly, brake rear 46287M - tube assembly, brake rear 46290 - tube assembly, rear brake RH 46310 - tube assembly, rear brake LH 46313 - connector, brake tube 46400Q - valve assembly, dual proportioning 55286X - bracket, brake hose rear RH 55287X - bracket, brake hose rear LH 55314X - bracket, brake hose rear RH 55315X - bracket, brake hose rear LH

---

Applies for models	Manufacture period	Spec

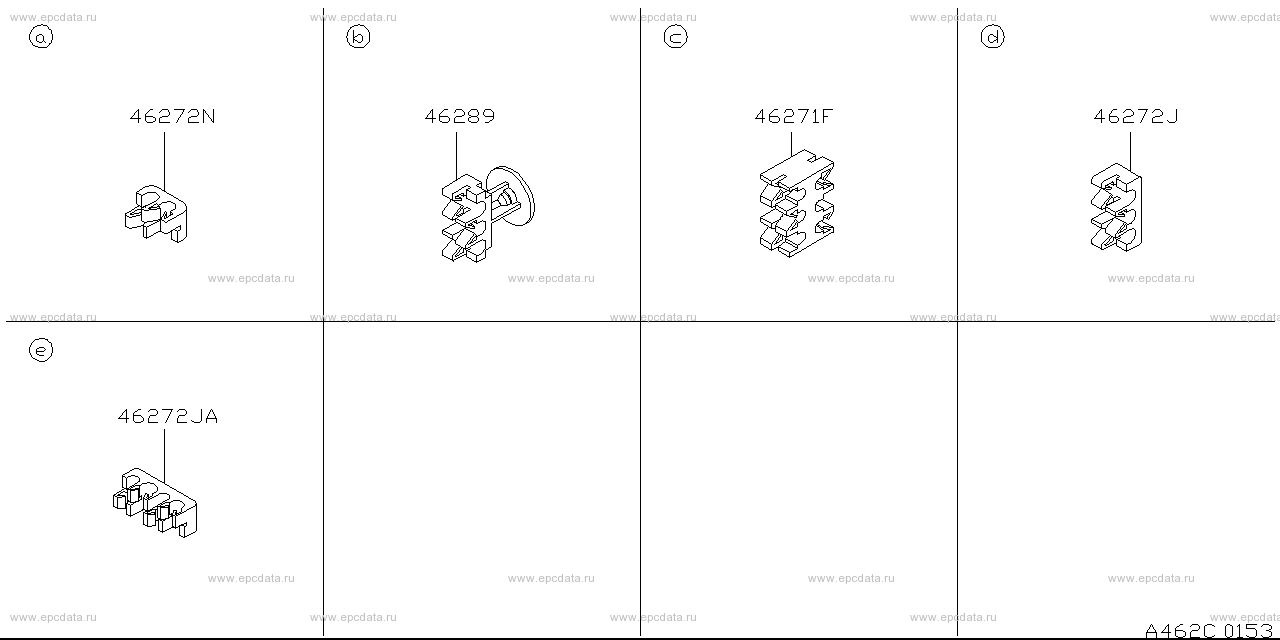

W.4WD.KA24DE	06.1998 - 10.1999	クリップ ＆ インシュレーター
W.4WD.KA24DE	10.1999 - 08.2001	クリップ ＆ インシュレーター

Open full screen picture Up to the top

46271F - clamp, brake tube 46272J - insulator 46272JA - insulator 46272N - spacer, brake tube 46289 - clamp

---

Applies for models	Manufacture period	Spec
W.4WD.KA24DE	07.2000 - 08.2001	パイピング

Open full screen picture Up to the top

081466162H 081466252G 081568161E 46201B - spring, lock brake hose 46201C - bolt, union front brake hose 46201D - gasket, brake hose 46201M - hose assembly, brake front 46201MA - hose assembly, brake front 46210 - hose assembly, brake rear 46211B - spring, lock brake hose 46240 - tube assembly, brake front RH 46242 - tube assembly, brake front LH 46250 - tube assembly, brake front master cylinder 46252M - tube assembly, brake rear master cylinder 46261 - bracket, brake tube 46282 - tube assembly, brake rear 46283 - tube assembly, brake rear 46284 - tube assembly, brake rear 46285X - tube assembly, brake rear 46290 - tube assembly, rear brake RH 46310 - tube assembly, rear brake LH 46313 - connector, brake tube 55286X - bracket, brake hose rear RH 55287X - bracket, brake hose rear LH 55314X - bracket, brake hose rear RH 55315X - bracket, brake hose rear LH

---

Applies for models	Manufacture period	Spec
W.4WD.KA24DE.(C2+C3+PACFQ+C3/LTD) +W.4WD.C1	10.1999 - 07.2000	パイピング

Open full screen picture Up to the top

081466162H 081466252G 081568161E 46201B - spring, lock brake hose 46201C - bolt, union front brake hose 46201D - gasket, brake hose 46201M - hose assembly, brake front 46210 - hose assembly, brake rear 46211B - spring, lock brake hose 46240 - tube assembly, brake front RH 46242 - tube assembly, brake front LH 46250 - tube assembly, brake front master cylinder 46252M - tube assembly, brake rear master cylinder 46261 - bracket, brake tube 46282 - tube assembly, brake rear 46283 - tube assembly, brake rear 46284 - tube assembly, brake rear 46285X - tube assembly, brake rear 46290 - tube assembly, rear brake RH 46310 - tube assembly, rear brake LH 46313 - connector, brake tube 55286X - bracket, brake hose rear RH 55287X - bracket, brake hose rear LH 55314X - bracket, brake hose rear RH 55315X - bracket, brake hose rear LH
