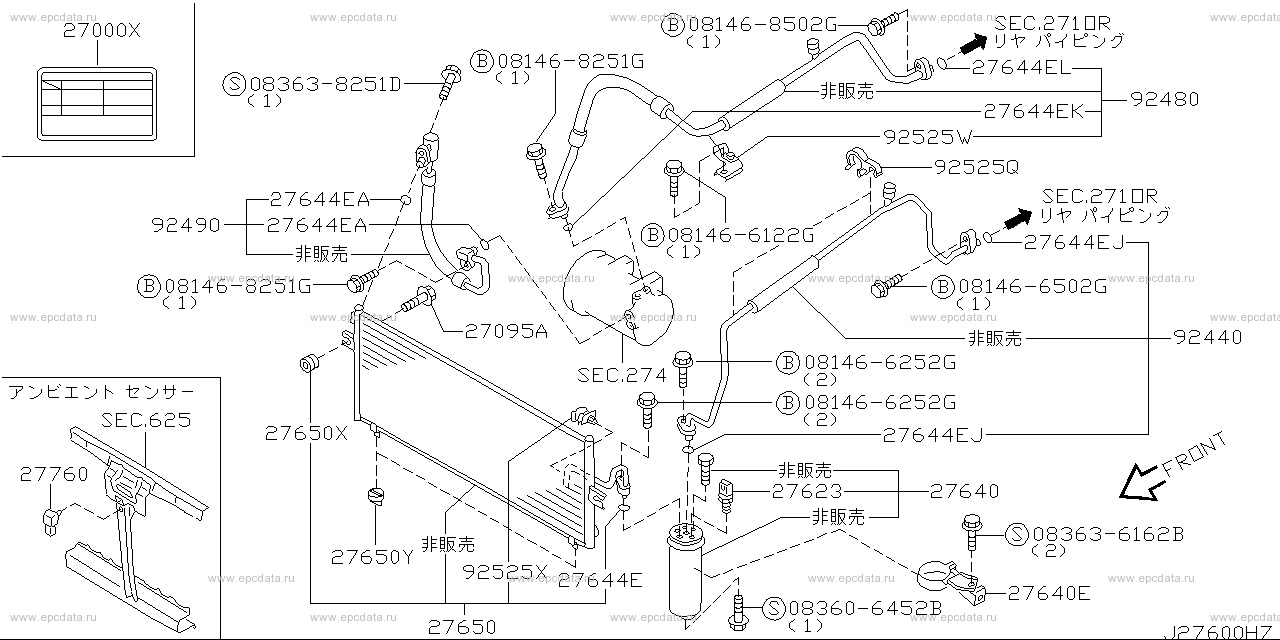

276 - air conditioner (engine room) (Denso) for Nissan Presage NU30
| |||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.KA24DE | 06.1998 - 10.1999 | フロント |
| 081466122G 081466162G 081466252G 081466502G 081468251G 081468502G 083638251D 27000X - label, air conditioner 27095A - screw 27623 - switch assembly, pressure 27640 - tank assembly, liquid 27640E - bracket, liquid tank 27644E - seal,O ring 27644EA - seal,O ring 27644EJ - seal,O ring 27644EK - seal,O ring 27644EL - seal,O ring 27650 - condenser assembly 27650X - mounting rubber, condenser upper 27650Y - mounting rubber, condenser lower 27760 - sensor assembly, ambient 92440 - pipe, front cooler high 92480 - hose, flexible low 92490 - hose, flexible high 92525Q - clip 92525W - clip 92525X - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.KA24DE | 06.1998 - 10.1999 | リヤ |
| 081466162H 081466252G 089112062H 27466R - plate 27644EE - seal,O ring 27644EF - seal,O ring 27644EG - seal,O ring 27644EH - seal,O ring 27644EM - seal,O ring 27644EN - seal,O ring 27675J - grommet, screw 27675JA - grommet, screw 27675JB - grommet, screw 27675JC - grommet, screw 27775D - grommet, screw 27775DA - grommet, screw 27775DB - grommet, screw 27775DC - grommet, screw 92460 - pipe, rear cooler high 92460B - screw 92460BA - screw 92460BB - screw 92460BC - screw 92460BD - screw 92464L - pipe assembly, rear cooler high D 92473L - pipe assembly, rear cooler low C 92474M - pipe assembly, rear cooler lower D 92484 - connector, pipe cooler 92498 - cover, rear cooler pipe 92498+A - cover, rear cooler pipe 92498+B - cover, rear cooler pipe 92498+C - cover, rear cooler pipe 92525WA - clip 92525WB - clip 92525WC - clip 92529A - clip 92560Q - grommet 92570Q - plug 92590M - hose, drain |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.KA24DE | 10.1999 - 08.2001 | フロント |
| 081466122G 081466252G 081466502G 081468251G 081468502G 083606452B 083636162B 083638251D 27000X - label, air conditioner 27095A - screw 27623 - switch assembly, pressure 27640 - tank assembly, liquid 27640E - bracket, liquid tank 27644E - seal,O ring 27644EA - seal,O ring 27644EJ - seal,O ring 27644EK - seal,O ring 27644EL - seal,O ring 27650 - condenser assembly 27650X - mounting rubber, condenser upper 27650Y - mounting rubber, condenser lower 27760 - sensor assembly, ambient 92440 - pipe, front cooler high 92480 - hose, flexible low 92490 - hose, flexible high 92525Q - clip 92525W - clip 92525X - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.KA24DE | 10.1999 - 08.2001 | リヤ |
| 081466162H 081466252G 089112062H 27466R - plate 27644EE - seal,O ring 27644EF - seal,O ring 27644EG - seal,O ring 27644EH - seal,O ring 27644EM - seal,O ring 27644EN - seal,O ring 27675J - grommet, screw 27675JA - grommet, screw 27675JB - grommet, screw 27675JC - grommet, screw 92460 - pipe, rear cooler high 92460B - screw 92460BA - screw 92460BB - screw 92460BC - screw 92460BD - screw 92464L - pipe assembly, rear cooler high D 92473L - pipe assembly, rear cooler low C 92474M - pipe assembly, rear cooler lower D 92484 - connector, pipe cooler 92498 - cover, rear cooler pipe 92498+A - cover, rear cooler pipe 92498+B - cover, rear cooler pipe 92498+C - cover, rear cooler pipe 92525WA - clip 92525WB - clip 92525WC - clip 92529A - clip 92560Q - grommet 92570Q - plug 92590M - hose, drain |
