NissanPrairie / LibertyRM1205.2001 - 09.2002AccessoriesZA4 - turning seat

ZA4 - turning seat for Nissan Prairie / Liberty RM12



Frame / SeriesRM12 / M12 body W (wagon )engine QR20DE (2000 gasoline )drive 2WD (two-wheel drive )
Manufacture period05.2001 - 09.2002grade G/Stransmission CVT (continuously variable transmission )


Scheme ZA4__001 Scheme ZA4__006 Scheme ZA4__007 Scheme ZA4__008 Scheme ZA4__009 Scheme ZA4__010 Scheme ZA4__011
Applies for modelsManufacture periodSpec
ｱﾝｼｬﾝﾃ ｱｼｽﾄ ｼｰﾄ01.1999 - ...シート アッセンブリー

Open full screen pictureOpen full screen picture
Up to the top

009225065A
081208202F
081270201E
081570501E
0831061275
0834040642
0854351042
089111052G
089154351A
089182401A
Z73940Z - grip assembly, assist
Z86400W - headrest assembly, front seat
Z86843Z - buckle assembly, front seat LH
Z87050Z - seat assembly, front LH
Z87052Z - frame assembly, cushion & back front seat
Z87320Z - trim assembly, cushion front seat LH
Z87350Z - cushion assembly, front seat LH
Z87370Z - trim assembly, seat cushion LH
Z87451Z - device assembly, reclining front seat
Z87468Z - knob, reclining device lever LH
Z87602Y - holder assembly, head rest lock
Z87603Y - holder assembly, head rest free
Z87650Z - back assembly, front seat LH
Z87670Z - trim assembly, back front seat LH
Z87700P - cover, armrest front seat
Z87700Y - arm rest assembly, front seat
Z87750Y - arm rest assembly, front seat
Z87868Z - belt assembly, breast
ZA4745N - cover, reclining device inner
ZA4870 - leg assembly, seat upper
ZA4870G - pin, stopper
ZA4870P - striker, upper
ZA4873C - bracket, cover front seat
ZA4873E - cap, screw
ZA4873F - clip
ZA4873M - finisher assembly cushion front seat LH outer
ZA4873N - finisher assembly cushion front seat LH inner
ZA4876R - bolt, special
ZA4882 - cover, front seat front
ZA4882E - cap, screw
ZA4882M - cover, front seat RH
ZA4882N - cover, front seat LH
ZA4883 - foot rest
ZA4883E - bush, foot rest
ZA4885 - cover, front seat chain
ZA4885P - bracket, cover front seat chain
ZA4885R - cover, front seat rear
Applies for modelsManufacture periodSpec
ﾁﾙﾄ ｱｯﾌﾟ ｼｰﾄ05.2000 - ...スイベル アッパー

Open full screen pictureOpen full screen picture
Up to the top

0092211210
0092211510
0092250510
0092250710
081208201A
081208201F
083405162A
0836051025
083605142D
089111082G
089154362A
0891543810
ZA4875H - leg assembly, seat
ZA4875N - member, leg
ZA4875P - carpet, foot rest
ZA4875V - hook
ZA4875W - foot rest assembly
ZA4877P - bracket assembly, bearing RH
ZA4877Q - bracket assembly, bearing LH
ZA4883B - cap, bearing
ZA4883C - cap
ZA4883D - cap, bolt
ZA4886B - plate, switch
Applies for modelsManufacture periodSpec
ﾁﾙﾄ ｱｯﾌﾟ ｼｰﾄ05.2000 - ...スイベル ロア

Open full screen pictureOpen full screen picture
Up to the top

0092211010
081106162G
0812061633
081208201F
081240202F
083405102A
083605142D
0891110637
0891543610
089154401A
ZA4871 - swivel assembly, upper
ZA4871P - plate, slide A
ZA4874L - member assembly, cross
ZA4874V - bracket, motor
ZA4874X - holder assembly
ZA4875D - bracket, switch
ZA4877M - carriage assembly,RH
ZA4877N - carriage assembly,LH
ZA4877R - shaft, foot rest
ZA4877U - spring
ZA4886D - bracket, switch
Applies for modelsManufacture periodSpec
ﾁﾙﾄ ｱｯﾌﾟ ｼｰﾄ05.2000 - ...スイベル ロア

Open full screen pictureOpen full screen picture
Up to the top

009214302A
0092250610
0092250710
009231081A
081106162G
081206251F
081206302F
081208201F
081208352F
081208402F
081240252F
083405162A
083606122G
089111052G
0891110637
089152481A
089154382A
089154401A
089155382A
ZA4871 - swivel assembly, upper
ZA4871B - nut
ZA4871C - washer, lock
ZA4871J - cap, adjusting
ZA4872 - swivel assembly, lower
ZA4872J - needle
ZA4872U - rail, needle
ZA4872V - guide, needle
ZA4873Q - striker, front seat rear
ZA4873R - shim, striker rear
ZA4874C - guide, motor
ZA4874D - bracket, motor
ZA4874H - motor assembly, slope LH
ZA4874M - rail assembly, upper
ZA4874N - rail, upper
ZA4877 - protector, swivel rear
ZA4877B - pin, swivel
ZA4877C - pin, motor
ZA4877D - spacer, motor
ZA4877E - shaft, swivel
ZA4877F - rail, lower plate A
ZA4877G - rail assembly, lower plate B
ZA4877H - shock absorber
ZA4877J - spacer, shock absorber
ZA4877L - stopper, bracket
ZA4877V - shaft, guide motor
ZA4877X - rail, lower plate C
ZA4877Y - rail, lower plate D
ZA4882F - gear
ZA4886A - bracket, switch
ZA4887W - rivet, blind
Applies for modelsManufacture periodSpec

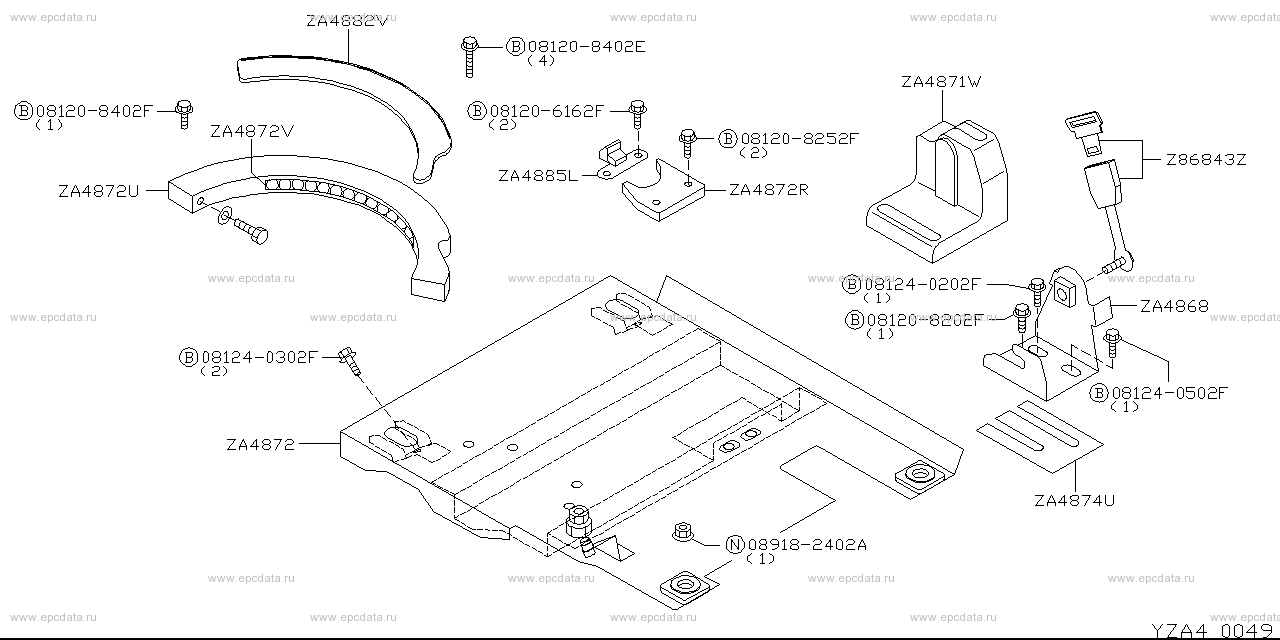

ｱﾝｼｬﾝﾃ ｱｼｽﾄ ｼｰﾄ01.2001 - ...スイベル ロワー

Open full screen pictureOpen full screen picture
Up to the top

081206162F
081208202F
081208252F
081208402E
081208402F
081240202F
081240302F
089182402A
Z86843Z - buckle assembly, front seat LH
ZA4868 - bracket, belt
ZA4871W - bracket
ZA4872 - swivel assembly, lower
ZA4872R - retainer, swivel lower
ZA4872U - rail, needle
ZA4872V - guide, needle
ZA4874U - shim mounting plate RH
ZA4882V - gear
ZA4885L - male, dovetail
Applies for modelsManufacture periodSpec
ｱﾝｼｬﾝﾃ ｱｼｽﾄ ｼｰﾄ05.2001 - ...スイベル アッパー，シート モーター

Open full screen pictureOpen full screen picture
Up to the top

083606505A
0836361247
089111062A
0891533610
ZA4852M - female assembly, dovetail
ZA4870X - pin, swivel gear
ZA4871 - swivel assembly, upper
ZA4871B - nut
ZA4871C - washer, lock
ZA4871J - cap, adjusting
ZA4873H - spacer, sprocket drive
ZA4874D - bracket, motor
ZA4874G - motor assembly, slope RH
ZA4882F - gear
Applies for modelsManufacture periodSpec

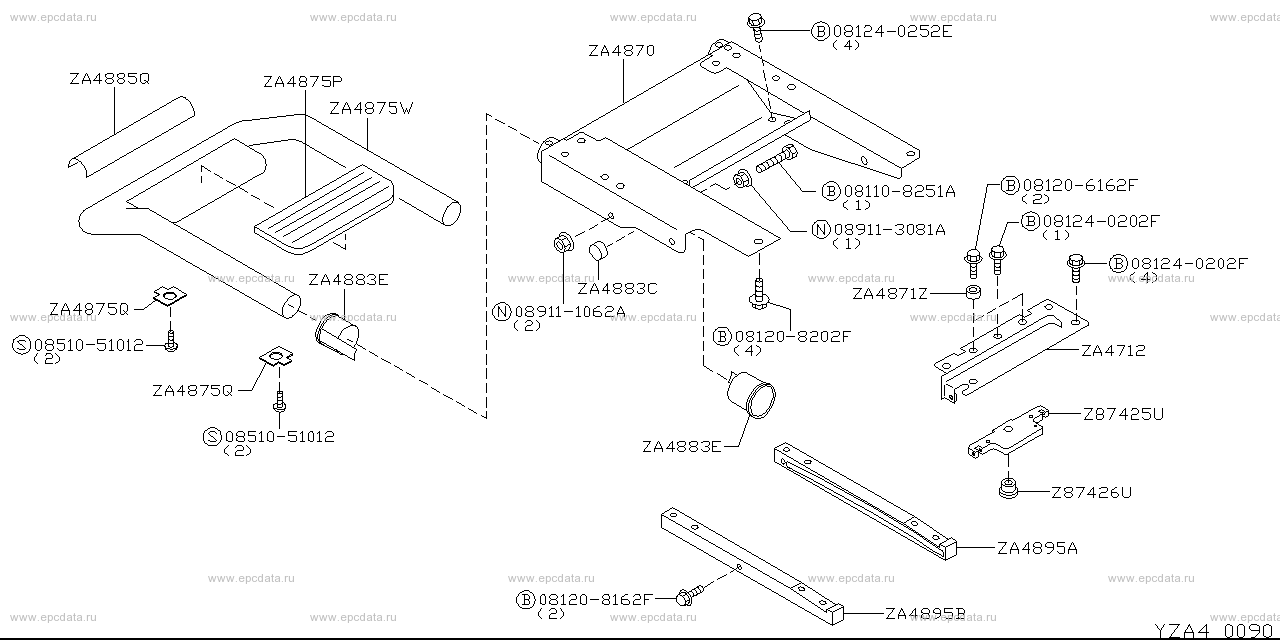

ｱﾝｼｬﾝﾃ ｱｼｽﾄ ｼｰﾄ05.2001 - ...スライド レール，シート レッグス

Open full screen pictureOpen full screen picture
Up to the top

081108251A
081206162F
081208162F
081208202F
081240202F
081240252E
0851051012
089111062A
089113081A
Z87425U - equalizer, chain
Z87426U - guide, equalizer
ZA4712 - member, cross outer rear
ZA4870 - leg assembly, seat upper
ZA4871Z - pin, guide
ZA4875P - carpet, foot rest
ZA4875Q - collar, rubber
ZA4875W - foot rest assembly
ZA4883C - cap
ZA4883E - bush, foot rest
ZA4885Q - rubber, grip foot rest
ZA4895A - rail, seat
ZA4895B - rail, seat B
