NissanPinoHC24S01.2007 - ...Chassis and transmission310 - automatic transmission, transaxle & fit (unit)

310 - automatic transmission, transaxle & fit (unit) for Nissan Pino HC24S



Frame / SeriesHC24S / TA0 body HB (hatchback )engine K6A (K6A engine )drive 2WD
Manufacture period01.2007 - ...grade Etransmission 4AT

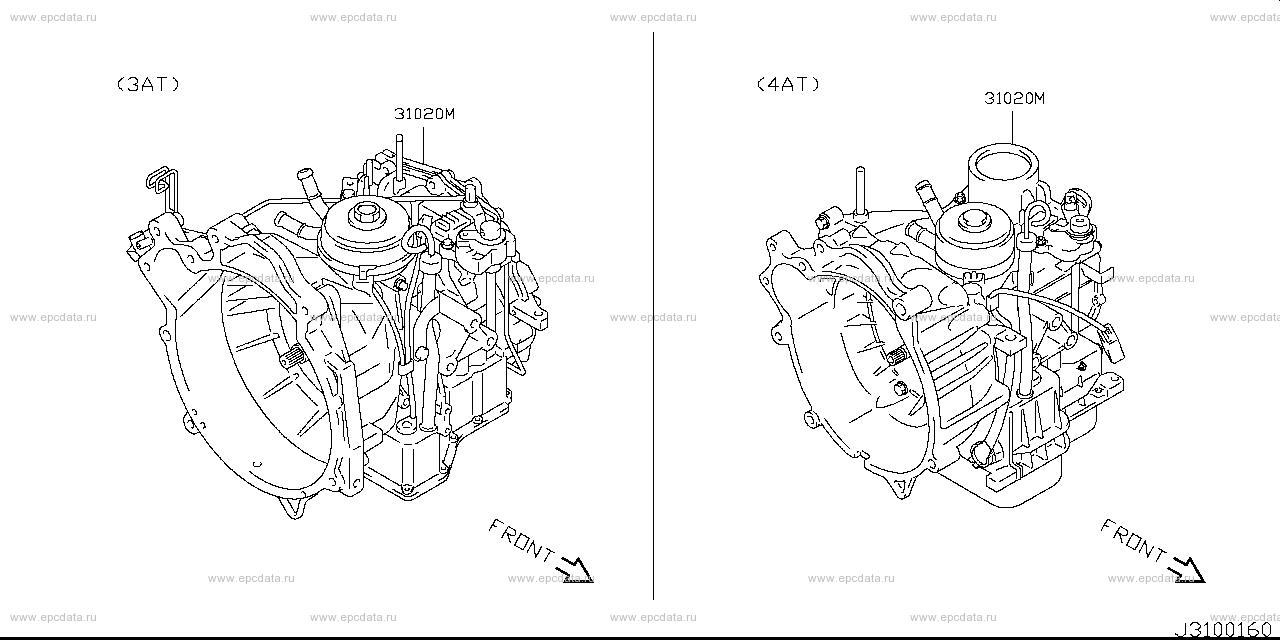

Scheme 310A_001 Scheme 310A_003
Applies for modelsManufacture periodSpec
3AT +4AT01.2007 - ...アッセンブリー

Open full screen pictureOpen full screen picture
Up to the top

31020M - transaxle assembly, automatic

Applies for modelsManufacture periodSpec
4AT01.2007 - ...フィッティング パーツ

Open full screen pictureOpen full screen picture
Up to the top

16439A - clamp, hose
21435Z - label, caution
21616X - cooler assembly, automatic transmission
21626 - washer, seal
21633M - hose, oil cooler
21633N - hose, oil cooler
21696 - seal,O ring
31036P - clip . harness
31080 - pipe assembly, oil charging
31080E - hose, breather
31084 - seal,O ring
31084E - plug
31086 - gauge assembly, oil level
31088A - bolt
31182E - clip
31182EA - clip
