NissanMocoMG21S08.2003 - 02.2004Body parts880 - rear seat (trim)

880 - rear seat (trim) for Nissan Moco MG21S



Frame / SeriesMG21S / SA0 body W (5-door wagon )engine K6ANA (K6A no turbo )drive 2WD
Manufacture period08.2003 - 02.2004grade BLIMITED (B LIMITED)transmission AT.R4 (AT )


Scheme 880A_001 Scheme 880A_002
Applies for modelsManufacture periodSpec
W04.2002 - 02.2004rear ｼ-ﾄ ﾐｷﾞｶﾞﾜ

Open full screen pictureOpen full screen picture
Up to the top

86400N - headrest assembly, rear seat
88000A - bolt
88000AA - bolt
88000AB - bolt
88000AC - bolt
88000AH - bolt
88111A - screw
88111AA - screw
88300Q - cushion assembly, rear seat RH
88302 - bar assembly, guard rear seat cushion
88306M - cover, hinge rear cushion center
88323 - retainer, cushion rear seat
88405MA - cover, reclining device
88407 - cover, inner hinge second RH seat
88418M - knob, reclining device lever
88451X - cover, reclining device outer
88452R - cover, hinge RH
88452X - cover, reclining device inner
88461M - cover, device arm
88461MA - cover, device arm
88501 - slide,RH seat outside
88502 - slide,RH seat inside
88507M - cover, slide rail
88507MA - cover, slide rail
88522 - rod assembly, seat lift
88600A - screw
88600AA - screw
88600B - nut
88600Q - back assembly, rear seat RH
88604Q - bush
88604QA - bush
88604QB - bush
88616M - cover, hinge
88619P - bolt, hinge
88692M - wire
88700 - armrest assembly, rear seat
88705 - hinge, armrest lid

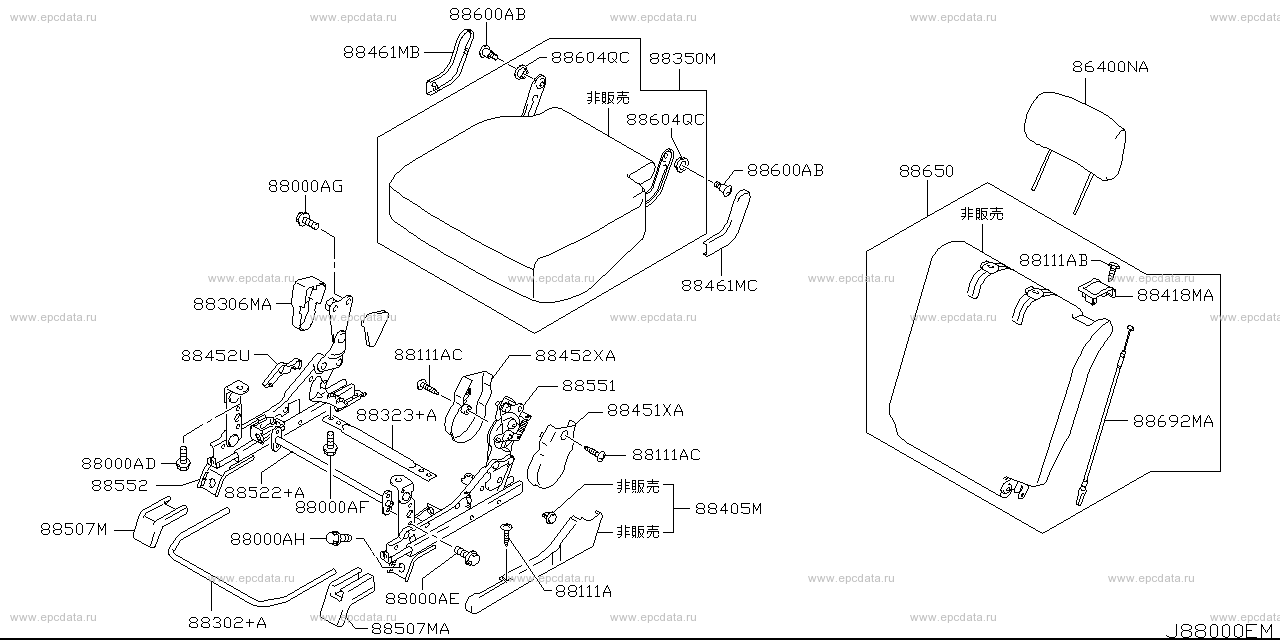

Applies for modelsManufacture periodSpec
W04.2002 - 02.2004rear ｼ-ﾄ ﾋﾀﾞﾘｶﾞﾜ

Open full screen pictureOpen full screen picture
Up to the top

86400NA - headrest assembly, rear seat
88000AD - bolt
88000AE - bolt
88000AF - bolt
88000AG - bolt
88000AH - bolt
88111A - screw
88111AB - screw
88111AC - screw
88302+A - bar assembly, guard rear seat cushion
88306MA - cover, hinge rear cushion center
88323+A - retainer, cushion rear seat
88350M - cushion assembly, rear seat LH
88405M - cover, reclining device
88418MA - knob, reclining device lever
88451XA - cover, reclining device outer
88452U - cover, hinge LH
88452XA - cover, reclining device inner
88461MB - cover, device arm
88461MC - cover, device arm
88507M - cover, slide rail
88507MA - cover, slide rail
88522+A - rod assembly, seat lift
88551 - slide,LH seat outside
88552 - slide,LH seat inside
88600AB - screw
88604QC - bush
88650 - back assembly, rear seat LH
88692MA - wire
