214 - radiator (fan motor & shroud) (Denso) for Nissan Mistral KR20

	Frame / Series KR20 / R20 body K (hardtop ) engine TD27TI (2700 diesel intercooler ) grade R (type R) Manufacture period 10.1996 - ... transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
TD27T	11.1995 - 10.1996	ラジエーター本体

Open full screen picture Up to the top

083636162D 083636165G 21400 - radiator assembly 21400F - screw 21408M - core assembly, radiator 21412 - tank, radiator upper 21412E - seal, packing radiator 21413K - tank kit, radiator lower 21430 - cap assembly, radiator 21435+A - label, caution radiator 21480 - cock, water drain 21480E - packing, drain 21488QA - seal, radiator upper 21488R - seal, radiator side 21508 - mounting, radiator 21560E - mounting rubber, radiator upper

---

Applies for models	Manufacture period	Spec
TD27T	11.1995 - 10.1996	取付部品

Open full screen picture Up to the top

083636162D 083636165G 21476 - shroud, upper 21477 - shroud, lower 21488Q - seal, radiator upper 21497L - seal, radiator lower 21497LA - seal, radiator lower 21497LB - seal, radiator lower 21501 - hose, radiator upper 21501AA - clamp, hose 21501AB - clamp, hose 21501E - clamp, hose 21503 - hose, radiator lower 21503A - clamp, hose 21504 - hose, radiator drain 21510 - tank assembly, reserve 21510G - screw 21515 - hose, reserve tank 21515+A - hose, reserve tank 21515E - clip 21515EA - clip 21516 - cap, reservoir tank 21546M - bracket, radiator RH 21546N - bracket, radiator LH 21560P - bracket, radiator mounting lower 21595Q - switch, thermal 21596F - packing 21599N - label, caution motor fan 21631 - hose, auto transmission oil cooler 21631+A - hose, auto transmission oil cooler

---

Applies for models	Manufacture period	Spec
TD27TI	10.1996 - ...

Open full screen picture Up to the top

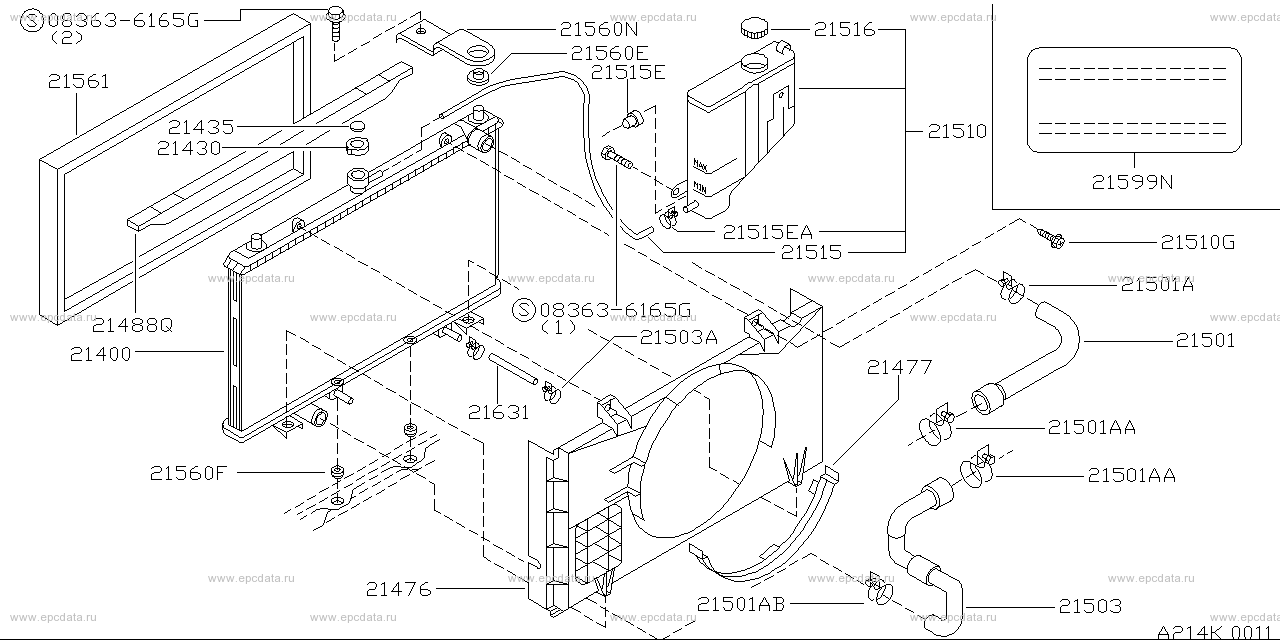

083636165G 21400 - radiator assembly 21430 - cap assembly, radiator 21435 - label, caution radiator 21476 - shroud, upper 21477 - shroud, lower 21488Q - seal, radiator upper 21501 - hose, radiator upper 21501A - clamp, hose 21501AA - clamp, hose 21501AB - clamp, hose 21503 - hose, radiator lower 21503A - clamp, hose 21510 - tank assembly, reserve 21510G - screw 21515 - hose, reserve tank 21515E - clip 21515EA - clip 21516 - cap, reservoir tank 21560E - mounting rubber, radiator upper 21560F - mounting rubber, radiator lower 21560N - bracket, radiator mounting upper 21561 - baffle, radiator 21599N - label, caution motor fan 21631 - hose, auto transmission oil cooler
