349 - automatic transmission control device (unit) for Nissan March K11

	Frame / Series K11 / K11 body 3HB (3-door hatchback ) engine CG10DE (1000 gasoline ) drive 2WD (2 wheel drive ) Manufacture period 05.1999 - ... grade IZ transmission AT.F4 (automatic transmission floor 4-speed )

---

Applies for models	Manufacture period	Spec
CG10DE.AT.F4 +CG13DE.AT.F4	05.1997 - 05.1999

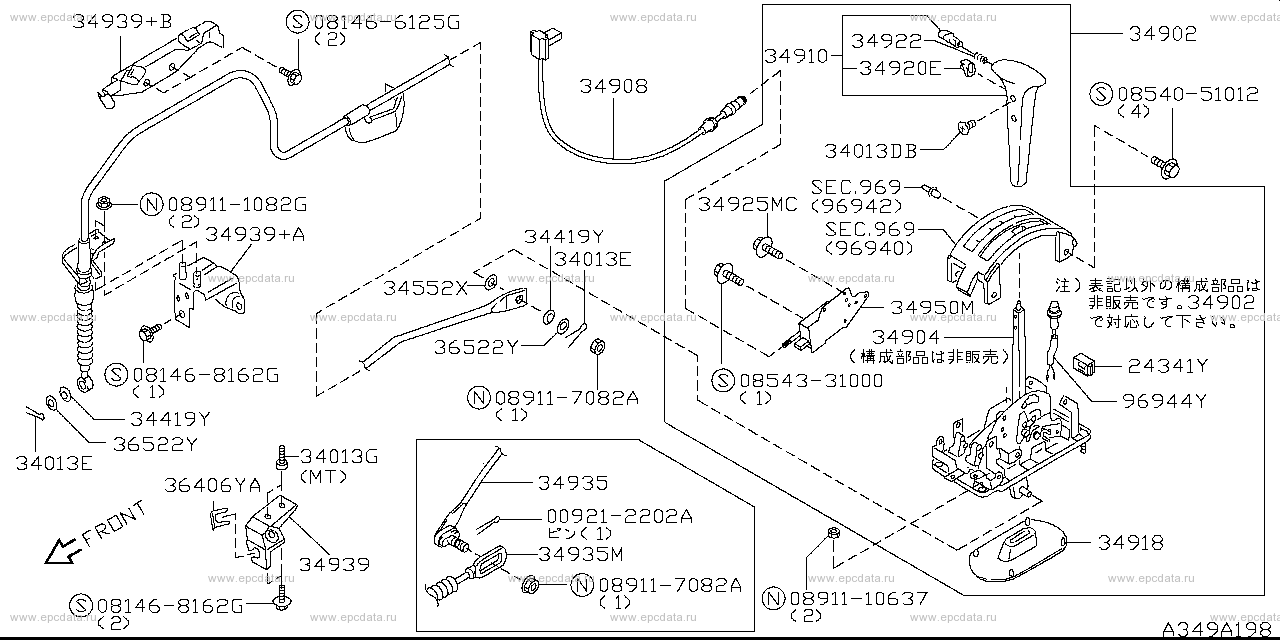

Open full screen picture Up to the top

009212202A 081466125G 081468162G 0854051012 0854331000 0891110637 089111082G 089117082A 24341Y - housing, connector 34013DB - screw 34013E - pin, snap 34013G - plug 34419Y - washer 34552X - insulator 34902 - device assembly, transmission control 34904 - bracket complete, control lever 34908 - cable assembly, key inter lock 34910 - knob assembly, control lever auto 34918 - cover, dust 34920E - switch assembly, over drive 34922 - spring, return button 34925MC - screw 34935 - rod, selector 34935M - cable assembly, control 34939 - bracket, cable mounting 34939+A - bracket, cable mounting 34939+B - bracket, cable mounting 34950M - shift lock solenoid & park switch assembly 36406YA - plate, lock 36522Y - washer 96944Y - bulb, indicator

---

Applies for models	Manufacture period	Spec
CG10DE.AT.F4 +CG13DE.AT.F4	05.1999 - 11.1999

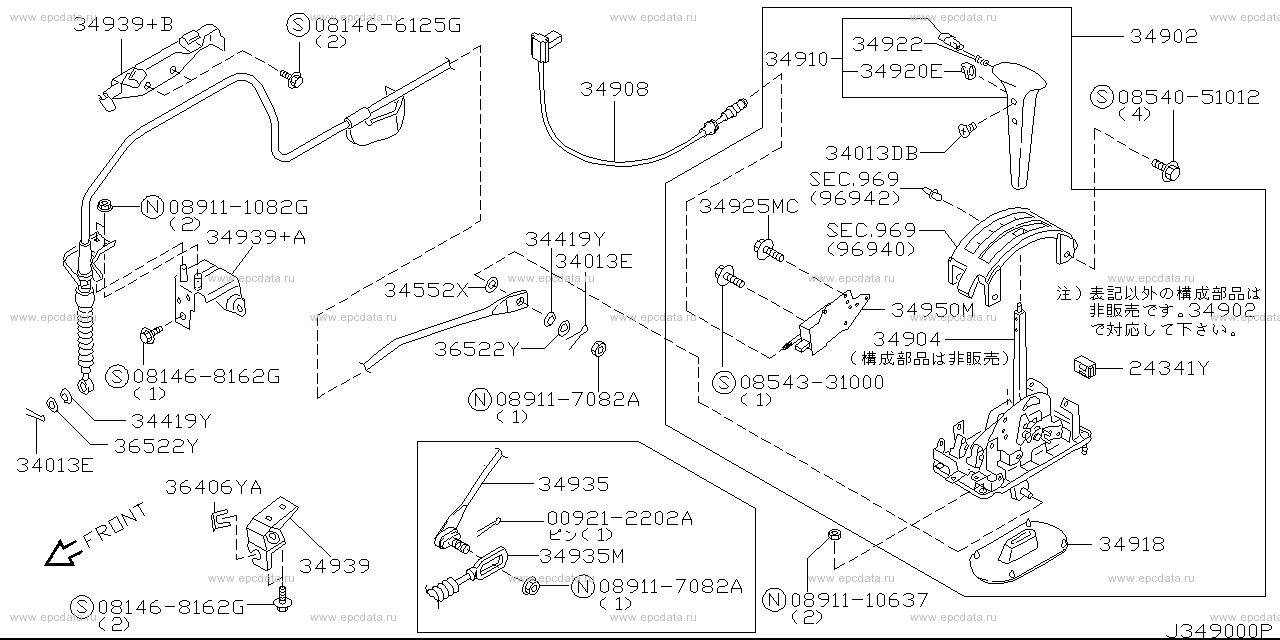

Open full screen picture Up to the top

009212202A 081466125G 081468162G 0854051012 0854331000 0891110637 089111082G 089117082A 24341Y - housing, connector 34013DB - screw 34013E - pin, snap 34419Y - washer 34552X - insulator 34902 - device assembly, transmission control 34904 - bracket complete, control lever 34908 - cable assembly, key inter lock 34910 - knob assembly, control lever auto 34918 - cover, dust 34920E - switch assembly, over drive 34922 - spring, return button 34925MC - screw 34935 - rod, selector 34935M - cable assembly, control 34939 - bracket, cable mounting 34939+A - bracket, cable mounting 34939+B - bracket, cable mounting 34950M - shift lock solenoid & park switch assembly 36406YA - plate, lock 36522Y - washer

---

Applies for models	Manufacture period	Spec
CG10DE.AT.F4 +CGA3DE.AT.F4	11.1999 - 10.2000
CG10DE.AT.F4 +CGA3DE.AT.F4	10.2000 - ...

Open full screen picture Up to the top

009212202A 081466125G 081468162G 0854051012 0854331000 0891110637 089111082G 089117082A 24341Y - housing, connector 34013D - screw 34013E - pin, snap 34419Y - washer 34552X - insulator 34902 - device assembly, transmission control 34904 - bracket complete, control lever 34908 - cable assembly, key inter lock 34910 - knob assembly, control lever auto 34918 - cover, dust 34920E - switch assembly, over drive 34922 - spring, return button 34925M - screw 34935 - rod, selector 34935M - cable assembly, control 34939 - bracket, cable mounting 34939+A - bracket, cable mounting 34939+B - bracket, cable mounting 34950M - shift lock solenoid & park switch assembly 36406YA - plate, lock 36522Y - washer 96940Y - indicator assembly, auto transmission control 96944Y - bulb, indicator

March K11
