327 - speedometer pinion (unit) for Nissan March K11

	Frame / Series K11 / K11 body 3HB (3-door hatchback ) engine CG10DE (1000 gasoline ) drive 2WD (2 wheel drive ) Manufacture period 05.1999 - ... grade IZ transmission AT.F4 (automatic transmission floor 4-speed )

---

Applies for models	Manufacture period	Spec
AT.F4	05.1997 - 05.1999	AT.F4
AT.F4 +AT.CVT	05.1999 - 11.1999	AT.F4

Open full screen picture Up to the top

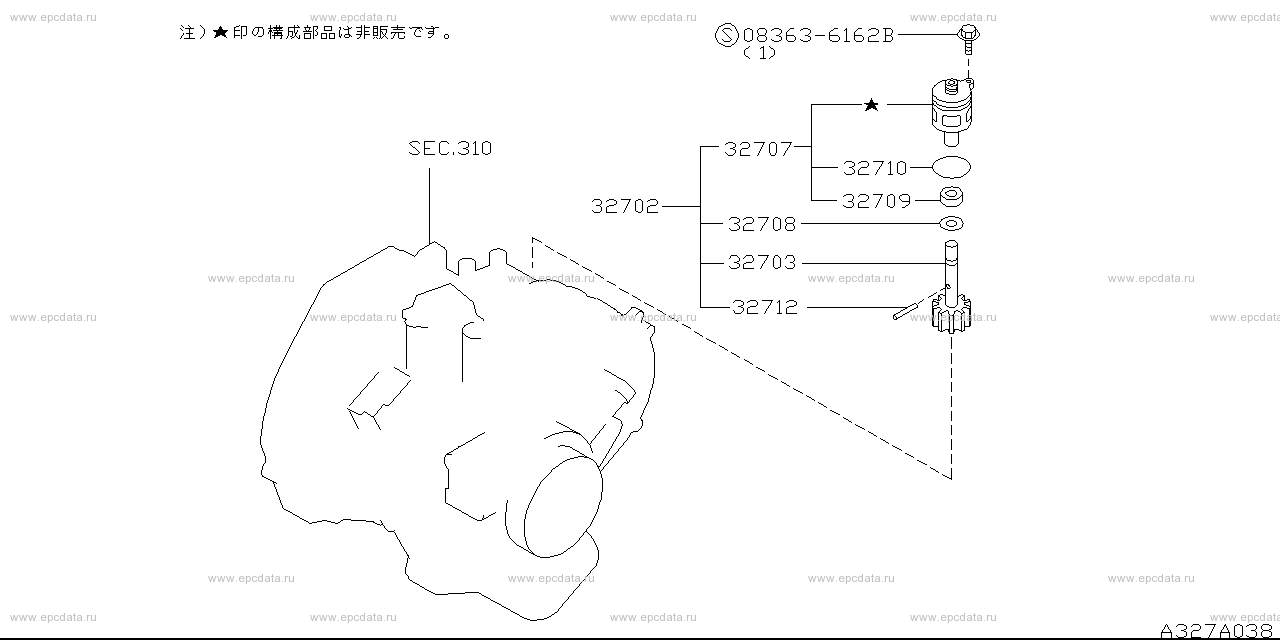

083636162B 32702 - pinion assembly, speedometer 32703 - pinion, speedometer 32707 - sleeve, speedometer pinion 32708 - washer, speedometer pinion 32709 - seal, oil speedometer pinion 32710 - seal,O ring speedometer pinion 32712 - pin, retainer speedometer pinion

---

Applies for models	Manufacture period	Spec
AT.F4 +AT.CVT	05.1999 - 11.1999	AT.CVT

Open full screen picture Up to the top

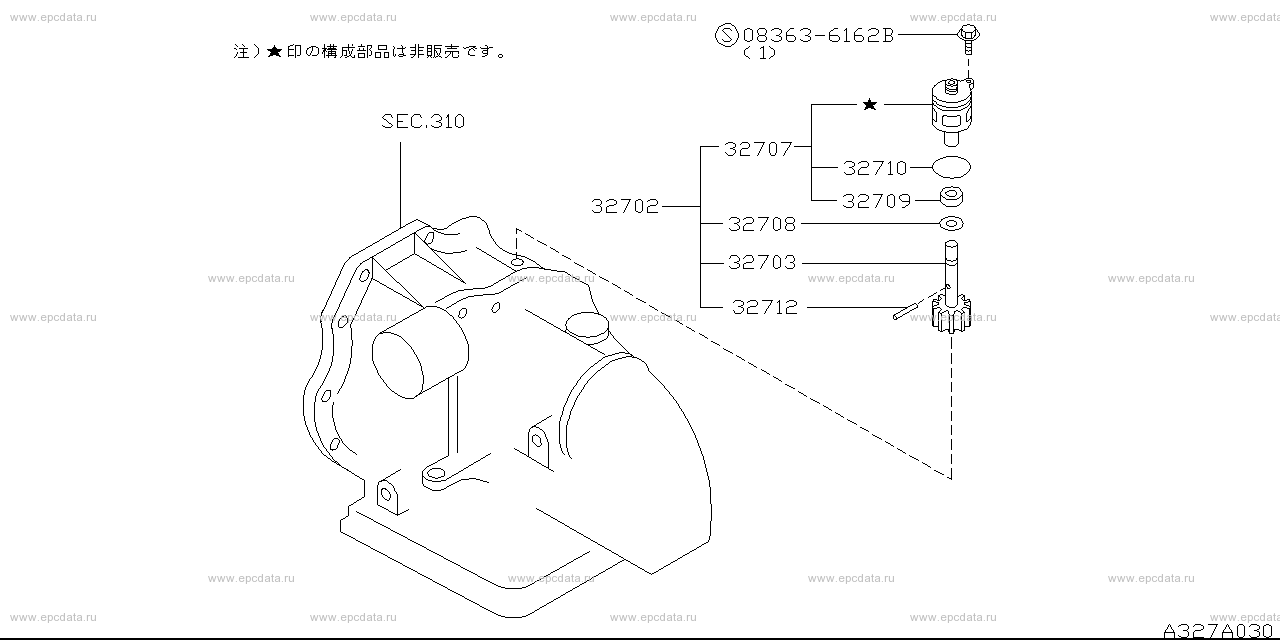

083636162B 32702 - pinion assembly, speedometer 32703 - pinion, speedometer 32707 - sleeve, speedometer pinion 32708 - washer, speedometer pinion 32709 - seal, oil speedometer pinion 32710 - seal,O ring speedometer pinion 32712 - pin, retainer speedometer pinion

---

Applies for models	Manufacture period	Spec
AT.F4	11.1999 - 10.2000
*CG10DE.AT.F4	10.2000 - ...	ｱﾝﾁｽｷｯﾄﾞ ﾅｼ

Open full screen picture Up to the top

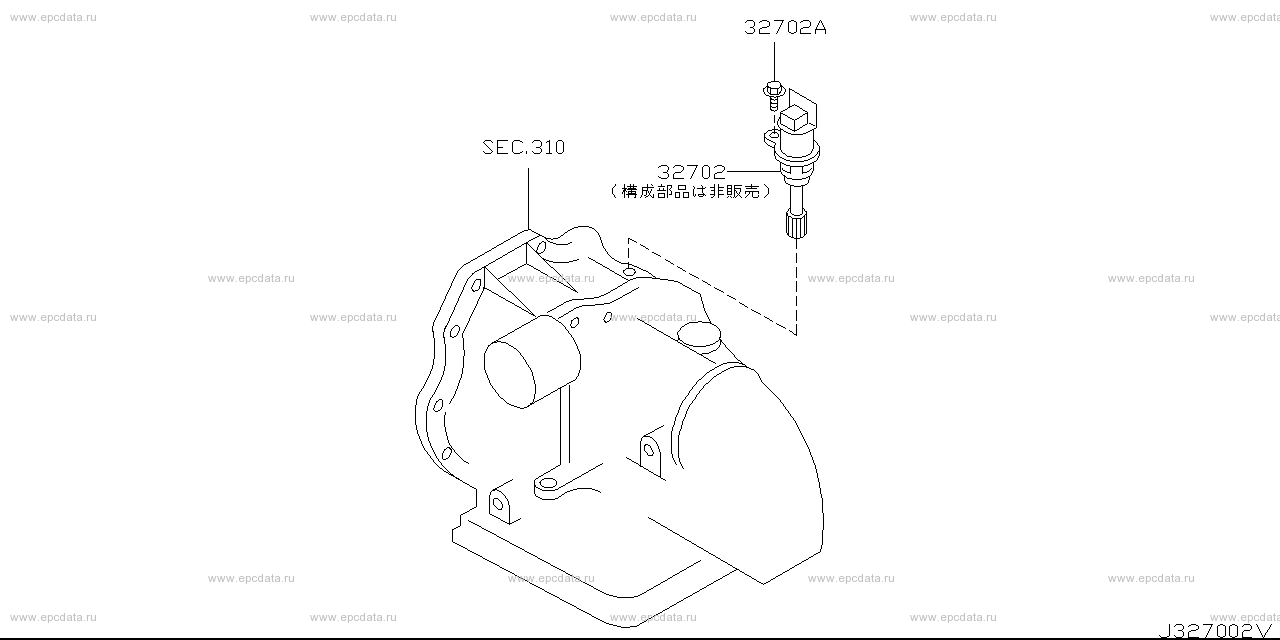

32702 - pinion assembly, speedometer 32702A - bolt

---

Applies for models	Manufacture period	Spec
AT.F4	10.2000 - ...	ｱﾝﾁｽｷｯﾄﾞ ﾂｷ

Open full screen picture Up to the top

32702A - bolt 32707N - plug assembly, speed pinion 32710 - seal,O ring speedometer pinion

March K11
