G2204 - alternator (engine) for Nissan Laurel Spirit FB12

	Frame / Series FB12 / B12L engine GA15S (1500 gasoline single cab GA type ) grade GRL (Grand limited ) transmission MT (manual transmission ) Manufacture period 09.1987 - ... ｼﾌﾄﾀﾞﾝｽｳ F5 (shift 5-speed ) drive 2WD (two-wheel drive )

---

Applies for models	Manufacture period	Spec
GA15#	07.1988 - ...	ミツビシ

Open full screen picture Up to the top

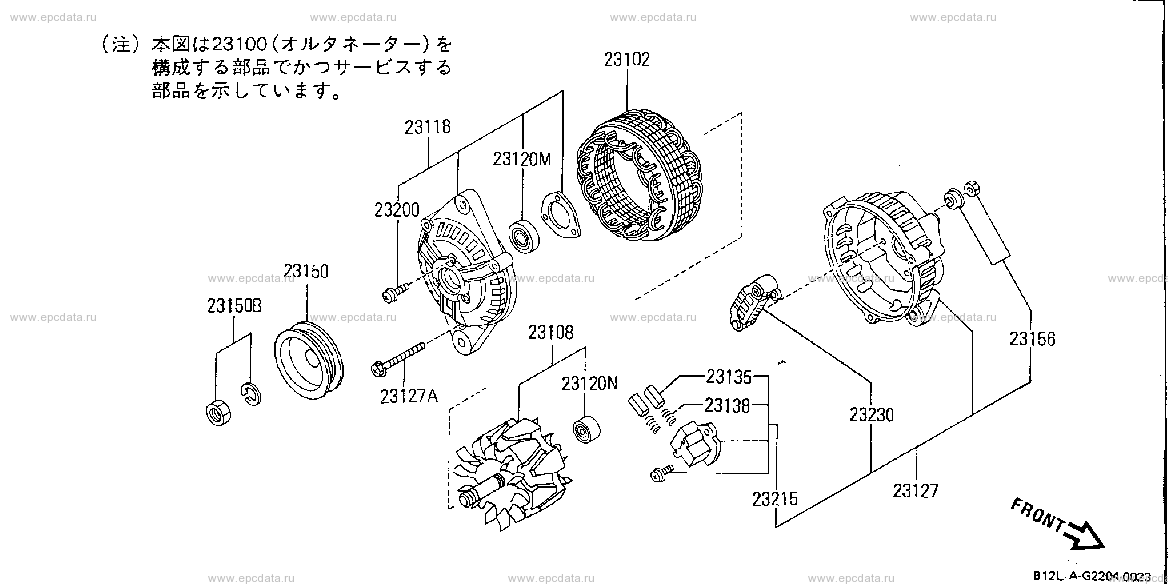

23102 - stator assembly 23108 - rotor assembly 23118 - cover assembly, front 23120M - bearing, ball 23120N - bearing, ball 23127 - cover assembly, rear 23127A - bolt, through 23135 - brush assembly 23138 - spring, brush 23150 - pulley assembly 23150B - nut assembly, pulley 23156 - terminal assembly,B 23200 - screw set 23215 - regulator assembly,IC 23230 - diode assembly

---

Applies for models	Manufacture period	Spec
GA15#	09.1987 - ...	ヒタチ

Open full screen picture Up to the top

23102 - stator assembly 23108 - rotor assembly 23118 - cover assembly, front 23120M - bearing, ball 23120N - bearing, ball 23127 - cover assembly, rear 23127A - bolt, through 23133 - holder assembly, brush 23135 - brush assembly 23150 - pulley assembly 23150B - nut assembly, pulley 23163 - guide, alternator fan 23200 - screw set 23230 - diode assembly

Laurel Spirit FB12
