E3601 - parking brake control (chassis) for Nissan Langley / Liberta Villa BFN13

	Frame / Series BFN13 / N13P ﾊﾝｹｲ P# (ﾌﾟﾘﾝｽｹｲ(Langley)) body 3HB (3-door hatchback ) engine GA15E (1500 gasoline EGI GA type ) Manufacture period 09.1988 - ... grade GT transmission AT (automatic transmission ) ｼﾌﾄﾀﾞﾝｽｳ F4 (4-speed )     drive 2WD (two-wheel drive (FF))

Applies for models	Manufacture period	Spec
ALL	10.1986 - ...

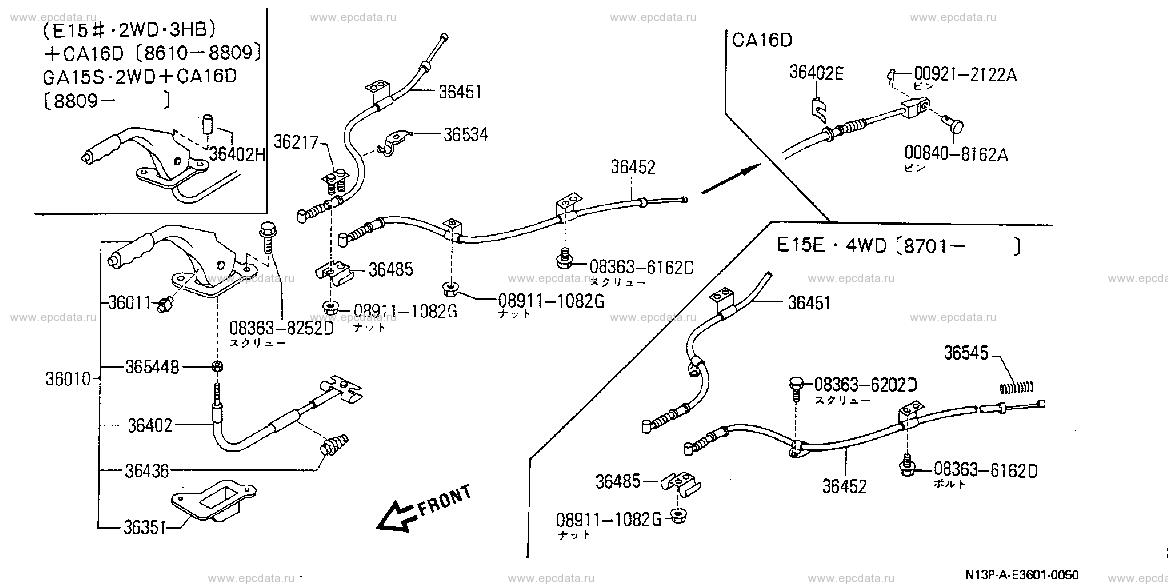

Open full screen picture

008408162A 009212122A 083636162D 083636202D 083638252D 089111082G 36010 - device assembly, parking brake control 36011 - switch assembly, parking brake lamp 36217 - bolt, parking brake 36351 - cover, dust parking brake 36402 - cable assembly, parking brake front 36402E - plate, cable lock 36402H - cap, adjust 36436 - boot, parking brake control 36451 - cable assembly, brake rear RH 36452 - cable assembly, brake rear LH 36485 - bracket assembly, parking brake wire 36534 - bracket, parking brake cable 36544B - nut 36545 - spring, return parking brake

Langley / Liberta Villa BFN13
