462 - brake piping (chassis) for Nissan Lafesta B30

	Frame / Series B30 / B30 body W (wagon ) engine MR20DE (MR20DE engine ) drive 2WD (2 wheel drive ) Manufacture period 12.2004 - 05.2007 grade 20S/20G (20S/ 20SP selection /20G grade ) transmission CVT (continuously variable transmission )

---

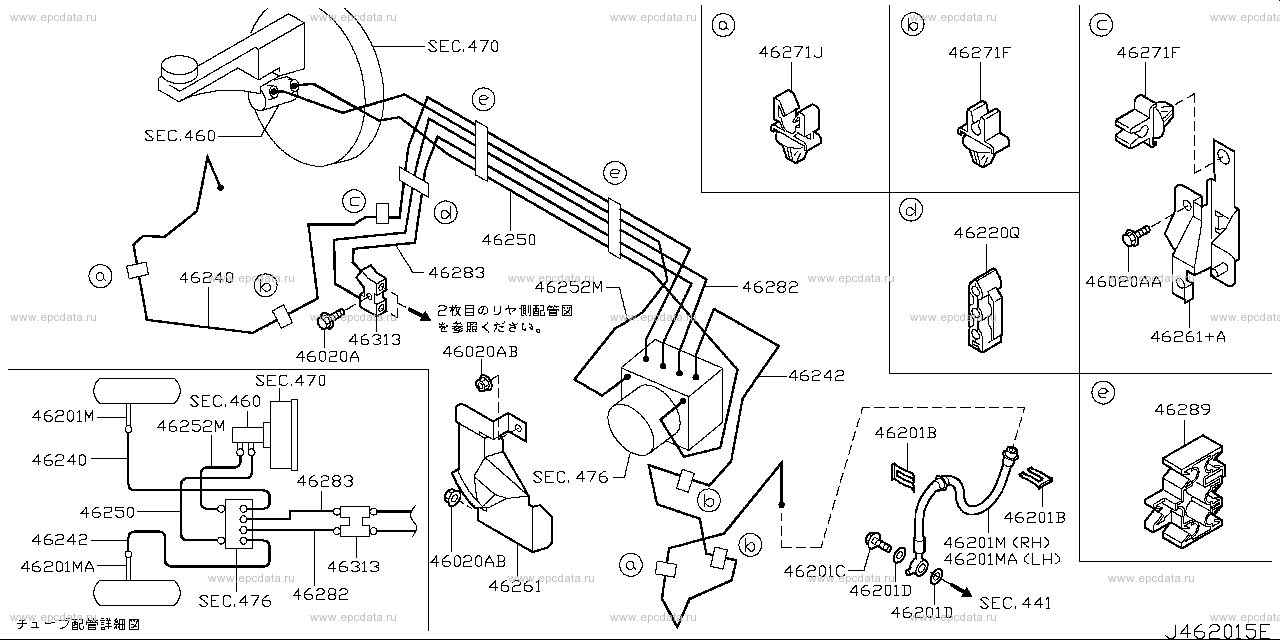

Applies for models	Manufacture period	Spec
W.2WD	12.2004 - 05.2007	フロント パイピング
W.2WD	05.2007 - ...	フロント パイピング

Open full screen picture Up to the top

46020A - bolt 46020AA - bolt 46020AB - bolt 46201B - spring, lock brake hose 46201C - bolt, union front brake hose 46201D - gasket, brake hose 46201M - hose assembly, brake front 46201MA - hose assembly, brake front 46220Q - clamp 46240 - tube assembly, brake front RH 46242 - tube assembly, brake front LH 46250 - tube assembly, brake front master cylinder 46252M - tube assembly, brake rear master cylinder 46261 - bracket, brake tube 46261+A - bracket, brake tube 46271F - clamp, brake tube 46271J - insulator 46282 - tube assembly, brake rear 46283 - tube assembly, brake rear 46289 - clamp 46313 - connector, brake tube

---

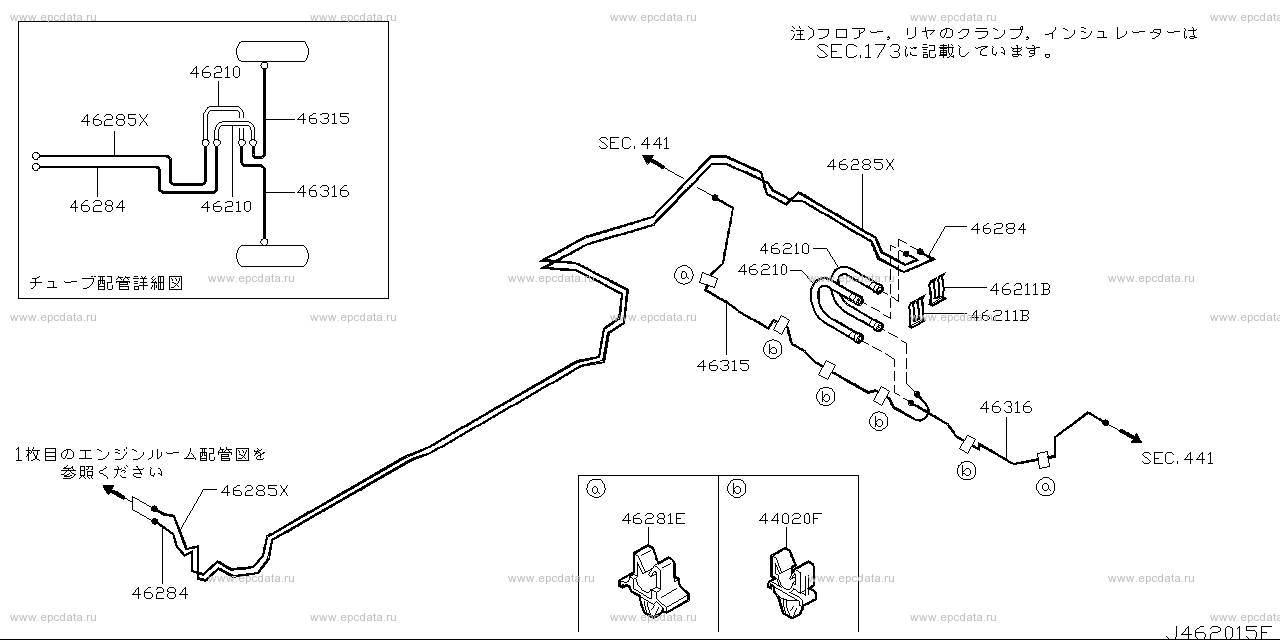

Applies for models	Manufacture period	Spec
W.2WD	12.2004 - 05.2007	リヤ パイピング
W.2WD	05.2007 - ...	リヤ パイピング

Open full screen picture Up to the top

44020F - clamp 46210 - hose assembly, brake rear 46211B - spring, lock brake hose 46281E - clip, brake tube 46284 - tube assembly, brake rear 46285X - tube assembly, brake rear 46315 - tube assembly, brake rear RH 46316 - tube assembly, brake rear LH

Lafesta B30
