401 - front suspension (chassis) for Nissan Lafesta B30

	Frame / Series B30 / B30 body W (wagon ) engine MR20DE (MR20DE engine ) drive 2WD (2 wheel drive ) Manufacture period 12.2004 - 05.2007 grade 20S/20G (20S/ 20SP selection /20G grade ) transmission CVT (continuously variable transmission )

---

Applies for models	Manufacture period	Spec
2WD.MR20DE	12.2004 - 05.2007	suspension ﾒﾝﾊﾞｰ
2WD.MR20DE	05.2007 - ...	suspension ﾒﾝﾊﾞｰ

Open full screen picture Up to the top

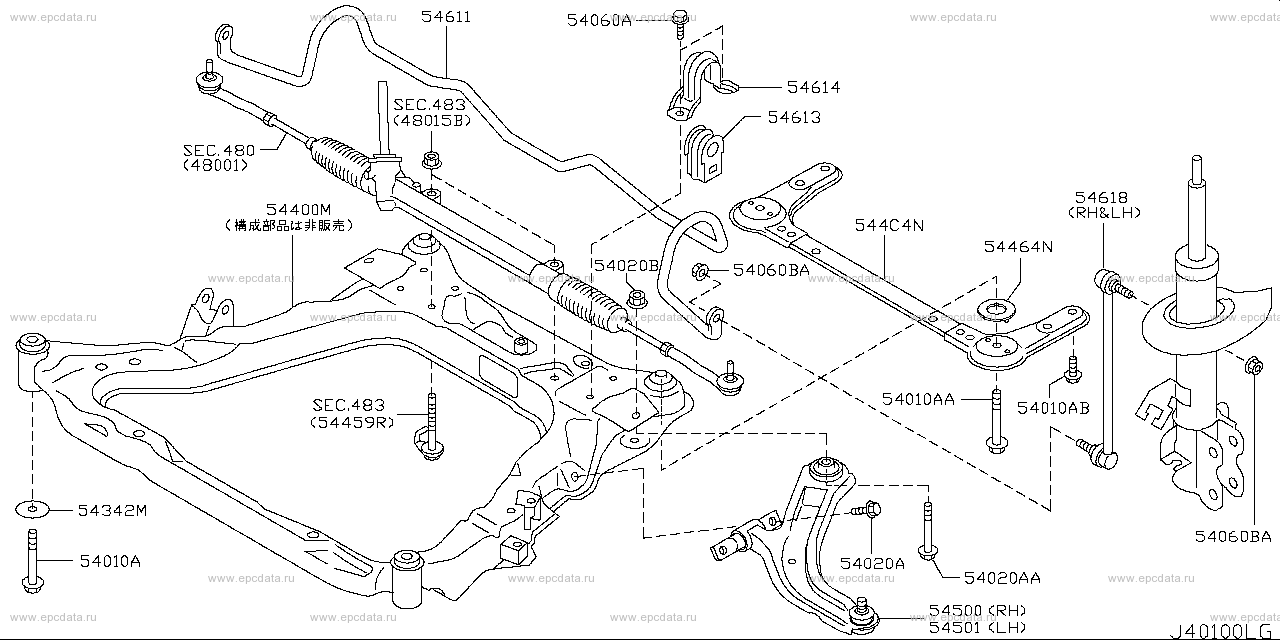

54010A - bolt 54010AA - bolt 54010AB - bolt 54020A - bolt 54020AA - bolt 54020B - nut 54060A - bolt 54060BA - nut 54342M - stopper, insulator rebound 54400M - member complete, front suspension 54464N - stopper, rebound front suspension 544C4N - stay assembly, front suspension member 54500 - link complete, transverse RH 54501 - link complete, transverse LH 54611 - stabilizer, front 54613 - bush, stabilizer 54614 - clamp, stabilizer 54618 - rod assembly, connecting stabilizer

---

Applies for models	Manufacture period	Spec
2WD.MR20DE	12.2004 - 05.2007	ｽﾄﾗｯﾄ
2WD.MR20DE	05.2007 - ...	ｽﾄﾗｯﾄ

Open full screen picture Up to the top

40056X - bolt, knuckle arm 54010M - spring, front 54010MA - spring, front 54035 - seat, front spring lower rubber 54040B - nut 54050M - bumper assembly, bound 54080A - bolt 54080B - nut 54302K - strut kit, front suspension RH 54303K - strut kit, front suspension LH 54320M - insulator assembly, strut mounting RH 54321 - insulator assembly, strut mounting LH 54325 - bearing, strut mounting

Lafesta B30
