310 - automatic transmission, transaxle & fit (unit) for Nissan Lafesta B30

	Frame / Series B30 / B30 body W (wagon ) engine MR20DE (MR20DE engine ) drive 2WD (2 wheel drive ) Manufacture period 12.2004 - 05.2007 grade 20S/20G (20S/ 20SP selection /20G grade ) transmission CVT (continuously variable transmission )

---

Applies for models	Manufacture period	Spec
2WD.CVT	12.2004 - 05.2007	アッセンブリー＆フィッティング パーツ
2WD.CVT	05.2007 - ...	アッセンブリー＆フィッティング パーツ

Open full screen picture Up to the top

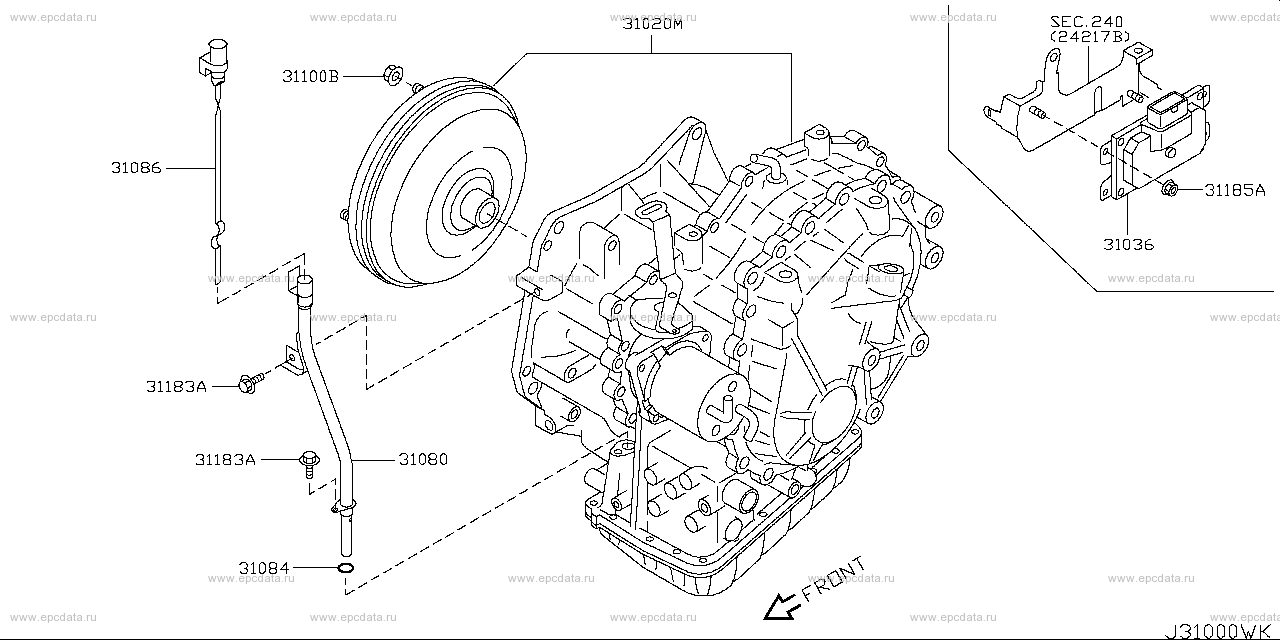

31020M - transaxle assembly, automatic 31036 - control unit, shift,,A/T control unit 31080 - pipe assembly, oil charging 31084 - seal,O ring 31086 - gauge assembly, oil level 31100B - nut 31183A - bolt 31185A - bolt

---

Applies for models	Manufacture period	Spec
2WD.(20S/20G+PLAYFUL).CVT	12.2004 - 05.2007	オイルクーラーチューブパーツ
2WD.CVT	05.2007 - ...	オイルクーラーチューブパーツ

Open full screen picture Up to the top

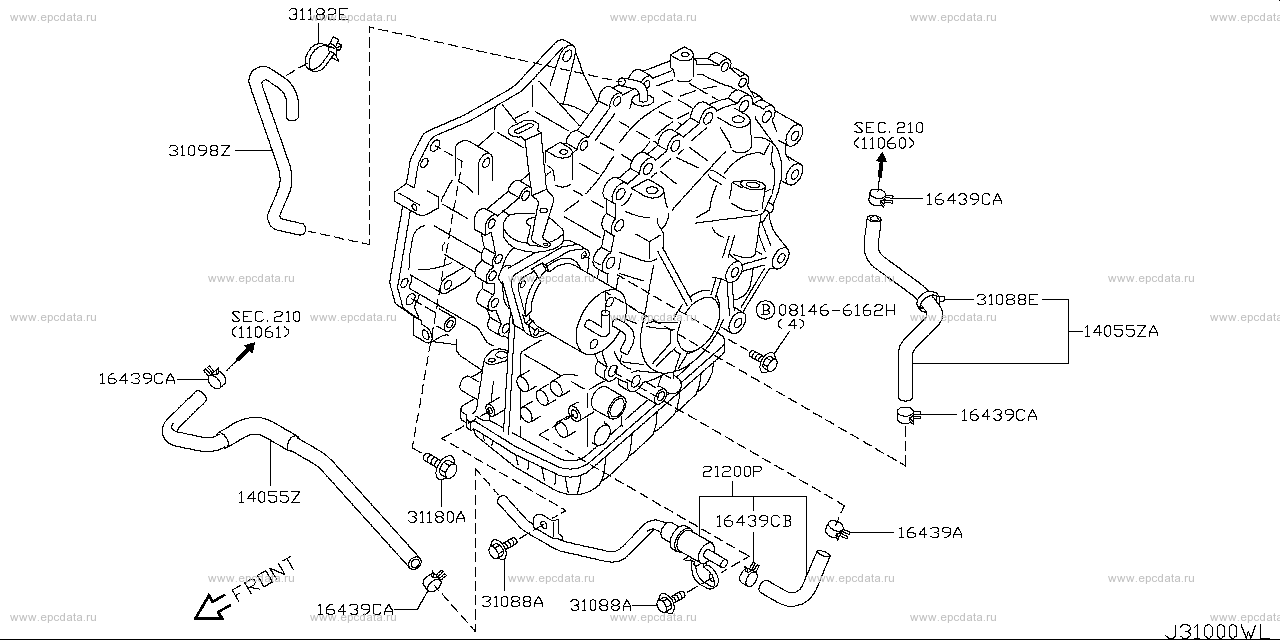

081466162H 14055Z - hose, water 14055ZA - hose, water 16439A - clamp, hose 16439CA - clamp, hose 16439CB - clamp, hose 21200P - thermo assy 31088A - bolt 31088E - clip 31098Z - hose, breather 31180A - bolt 31182E - clip

---

Applies for models	Manufacture period	Spec
*2WD.20S/20G.CVT	02.2005 - 05.2007	オイルクーラーチューブパーツ
*2WD.20S.CVT	05.2007 - ...	オイルクーラーチューブパーツ

Open full screen picture Up to the top

081466162H 14055Z - hose, water 14055ZA - hose, water 14055ZB - hose, water 16439CA - clamp, hose 21619 - tube assembly, oil cooler 31088A - bolt 31088E - clip 31180A - bolt

Lafesta B30
