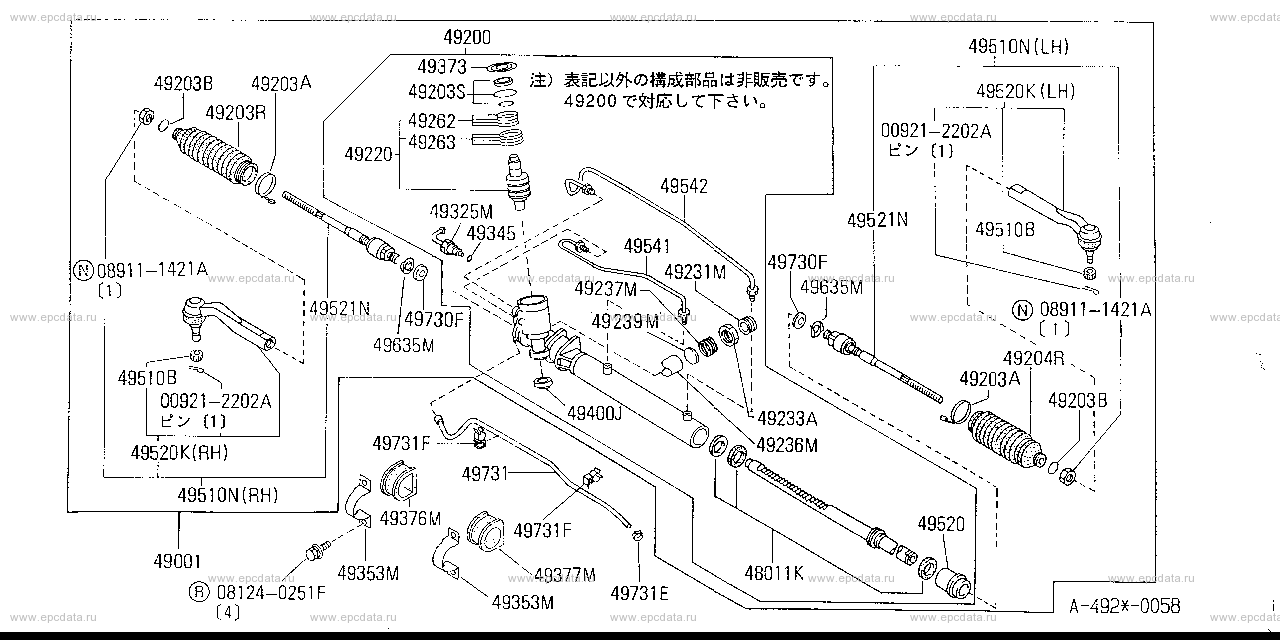

  Open full screen picture
| 009212202A
081240251F
089111421A
48011K - seal kit, housing power steering gear
49001 - gear & linkage, power steering
49200 - gear assembly, power steering
49203A - clamp, boot
49203B - clamp, boot
49203R - boot
49203S - seal kit, oil worm gear
49204R - boot
49220 - pinion assembly, power steering
49231M - screw, adjust retainer
49233A - nut
49236M - retainer, power steering gear
49237M - spring, retainer
49239M - seat, spring retainer power steering gear
49262 - seal,O ring
49263 - ring,ｳｵ-ﾑ ﾌﾛﾝ
49325M - port assembly, drain power steering
49345 - seal,O ring
49353M - bracket
49373 - cap, seal rear cover
49376M - insulator RH
49377M - insulator LH
49400J - plug
49510B - nut
49510N - rod assembly, side
49520 - cover assembly, cylinder end
49520K - socket kit, tie rod outer
49521N - socket assembly, tie rod inner
49541 - tube assembly, cylinder
49542 - tube assembly, cylinder
49635M - plate, lock side rod
49730F - spacer
49731 - tube, air breather
49731E - clip, air breather
49731F - clip, air breather |
