| 0812082062
0812402028
0851051010

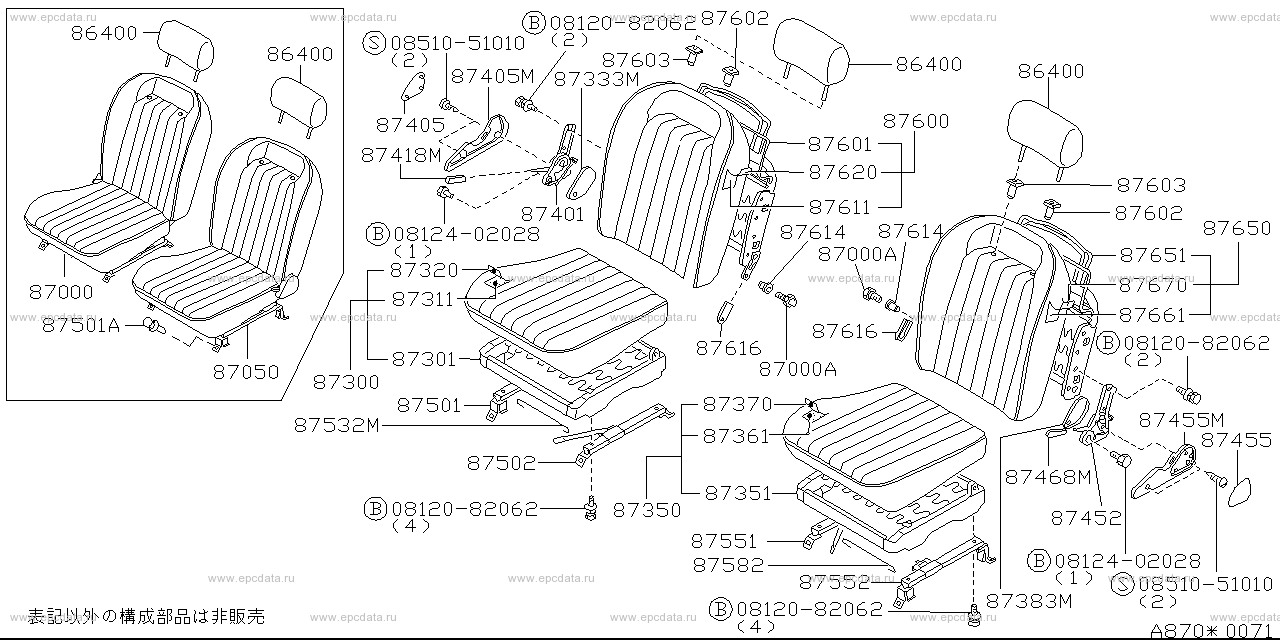

86400 - head rest assembly, front seat
87000 - seat assembly, front RH
87000A - bolt, special
87050 - seat assembly, front LH
87300 - cushion assembly, seat RH
87301 - frame assembly, front seat cushion RH
87311 - pad, front seat cushion RH
87320 - trim assembly, seat cushion RH
87333M - cover, reclining device RH inner
87350 - cushion assembly, seat LH
87351 - frame assembly, front seat cushion LH
87361 - pad, front seat cushion LH
87370 - trim assembly, cushion front seat LH
87383M - cover, reclining device LH inner
87401 - device, reclining RH seat outside
87405 - cover, reclining device RH
87405M - cover, reclining device RH outer
87418M - knob, reclining device RH
87452 - device, reclining LH seat outside
87455 - cover, reclining device LH
87455M - cover, reclining device LH outer
87468M - knob, reclining device LH
87501 - slide,RH seat outside
87501A - bolt
87502 - slide,RH seat inside
87532M - wire, release seat slide RH
87551 - slide,LH seat inside
87552 - slide,LH seat outside
87582 - wire, release seat slide LH
87600 - back assembly, front seat RH
87601 - frame assembly, front seat back RH
87602 - holder assembly, head rest lock
87603 - holder assembly, headrest free
87611 - pad, front seat back RH
87614 - bush, front seat
87616 - cover, front seat hinge
87620 - trim assembly, back front seat RH
87650 - back assembly, front seat LH
87651 - frame assembly, front seat back LH
87661 - pad, front seat back LH
87670 - trim assembly, seat back LH |
