843 - trunk lid & fitting (body) for Nissan Figaro FK10

	Frame / Series FK10 / FK10 body K (coupe ) engine MA10T (1000 gasoline turbo ) transmission AT (automatic transmission ) Manufacture period 02.1991 - ...

---

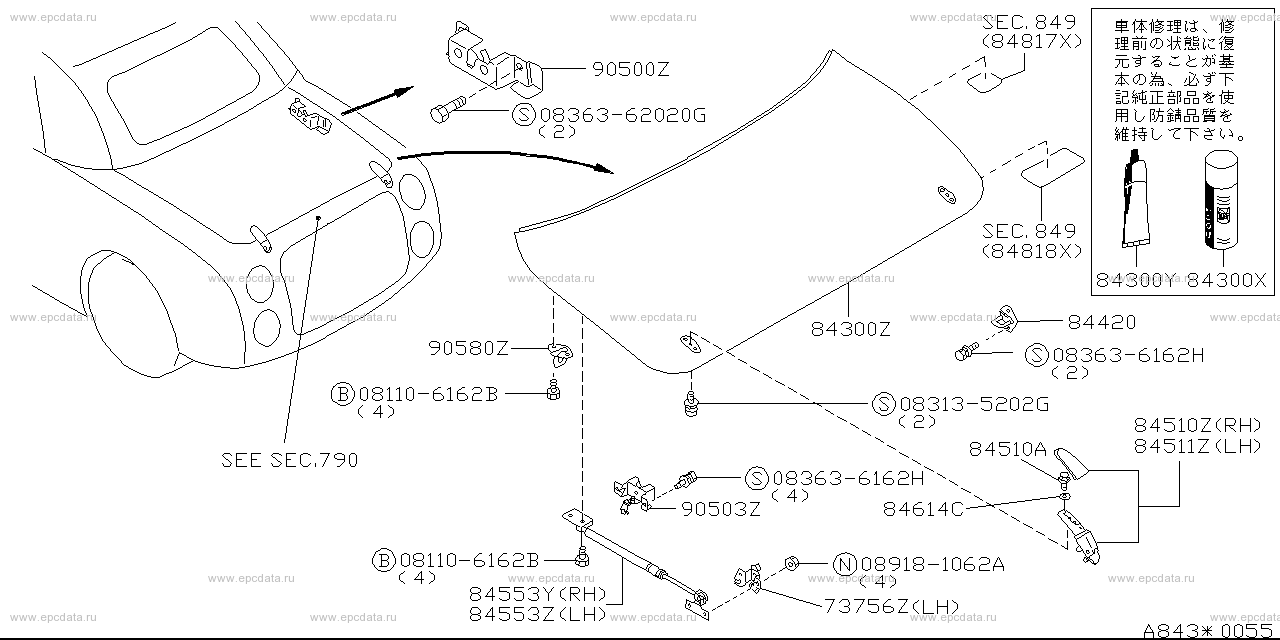

Applies for models	Manufacture period	Spec
ALL	02.1991 - ...	トランク リッド，Ａ

Open full screen picture Up to the top

081106162B 083135202G 083636162H 089181062A 73756Z - opener assembly, roof LH 84300X - metal keep wax 84300Y - paint sealer 84300Z - lid, trunk A 84420 - striker assembly, trunk lid lock 84510A - bolt 84510Z - hinge assembly, trunk lid A RH 84511Z - hinge assembly, trunk lid A LH 84553Y - stay assembly, trunk lid A RH 84553Z - stay assembly, trunk lid A LH 84614C - washer 90500Z - lock & remote control assembly, trunk lid B 90503Z - lock assembly, trunk lid A 90580Z - striker assembly, trunk lid A

---

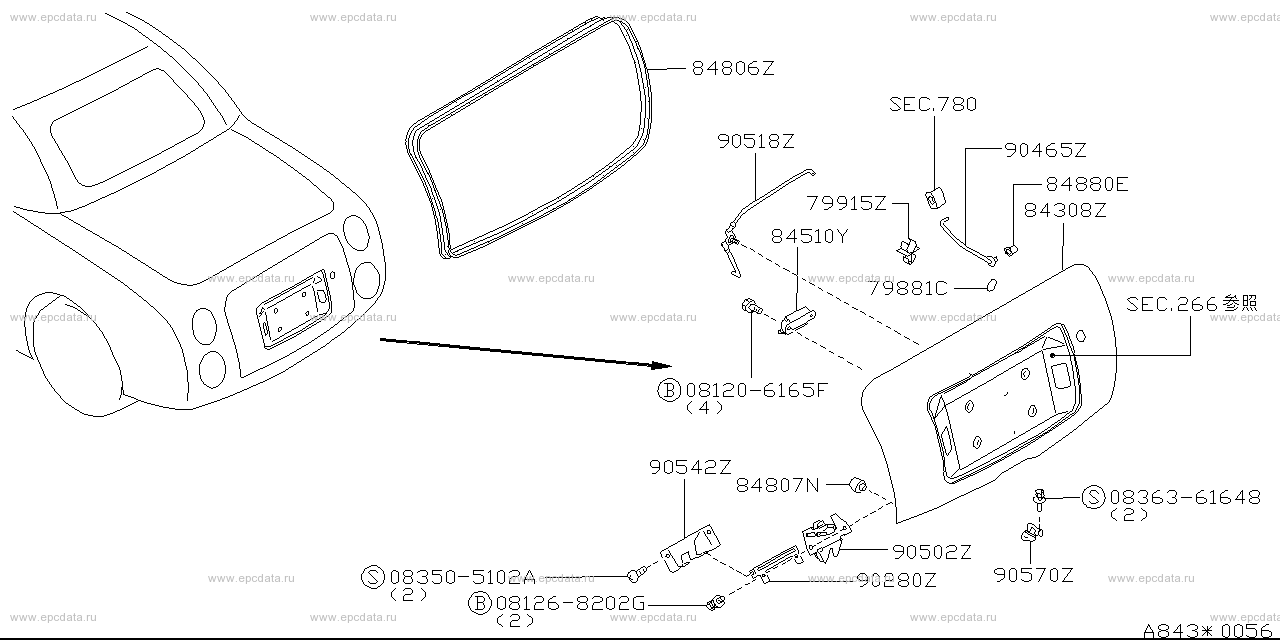

Applies for models	Manufacture period	Spec
ALL	02.1991 - ...	トランク リッド，Ｂ

Open full screen picture Up to the top

081206165F 081268202G 083505102A 0836361648 79881C - washer 79915Z - holder 84308Z - lid, trunk B 84510Y - hinge, trunk lid B 84806Z - weather strip, trunk lid B 84807N - bumper, rubber trunk lid 84880E - clip 90280Z - bracket, trunk lid B 90465Z - rod, trunk support 90502Z - lock assembly, trunk lid B 90518Z - rod assembly, trunk lid B 90542Z - cover, trunk lid B lock 90570Z - striker assembly, trunk lid B lock

Figaro FK10
