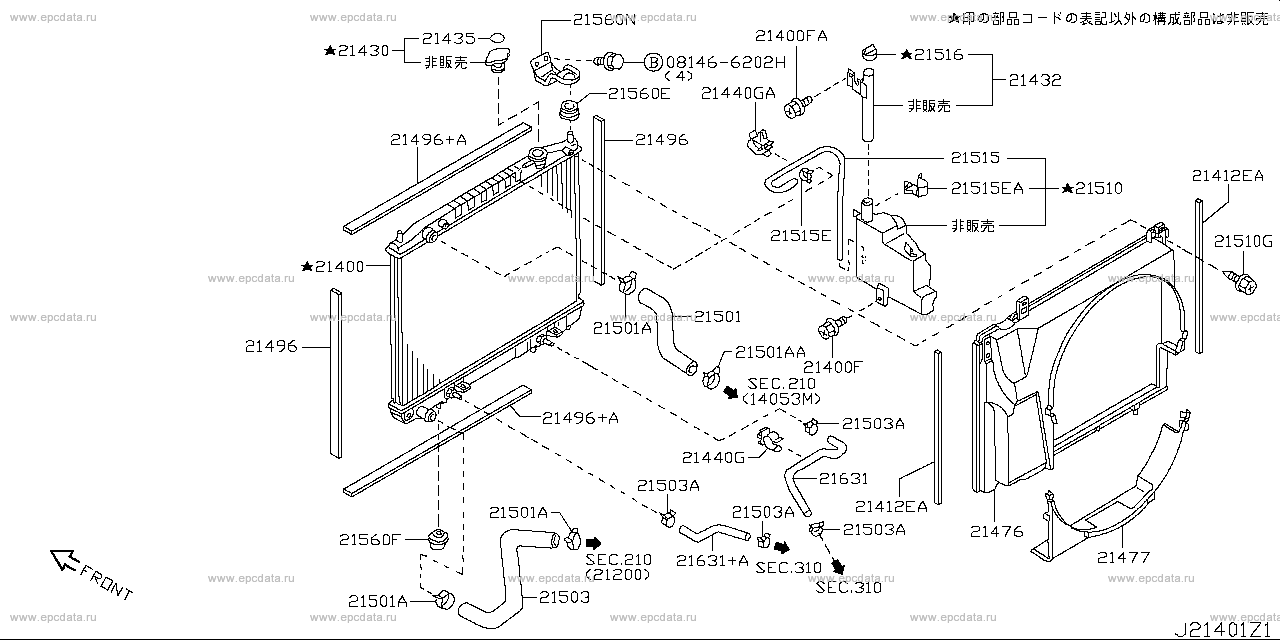

214 - radiator (fan motor & shroud) (Denso) for Nissan Elgrand E51

	Frame / Series E51 / E51 body 5K (5-door coach ) engine VQ35DE (3500 gasoline ) drive 2WD (two-wheel drive ) Manufacture period 05.2002 - ... seating capacity 7P (7-seater ) grade XL transmission AT (AT )

---

Applies for models	Manufacture period	Spec
VQ35DE	05.2002 - 08.2003	ラジエーター
VQ35DE	08.2003 - 12.2006	ラジエーター
VQ35DE	12.2006 - 10.2007	ラジエーター

Open full screen picture Up to the top

21400 - radiator assembly 21408M - core assembly, radiator 21412 - tank, radiator upper 21412E - seal, packing radiator 21463M - tank, radiator RH & oil cooler 21480 - cock, water drain 21480G - packing, drain cock

---

Applies for models	Manufacture period	Spec
VQ35DE	05.2002 - 08.2003	フィッティングパーツ
VQ35DE	08.2003 - 08.2004	フィッティングパーツ

Open full screen picture Up to the top

081466202H 21400 - radiator assembly 21400F - screw 21400FA - screw 21430 - cap assembly, radiator 21432 - neck assembly, filler 21435 - label, caution radiator 21440G - clip 21440GA - clip 21475 - shroud assembly 21476 - shroud, upper 21477 - shroud, lower 21501 - hose, radiator upper 21501A - clamp, hose 21503 - hose, radiator lower 21503A - clamp, hose 21510 - tank assembly, reserve 21510G - screw 21515 - hose, reserve tank 21515E - clip 21515EA - clip 21516 - cap, reservoir tank 21560E - mounting rubber, radiator upper 21560F - mounting rubber, radiator lower 21560N - bracket, radiator mounting upper 21590 - motor & fan assembly, with shroud 21599N - label, caution motor fan 21631 - hose, auto transmission oil cooler 21631+A - hose, auto transmission oil cooler 21631B - nut 92121M - fan, condenser 92122 - motor assembly, condenser

---

Applies for models	Manufacture period	Spec
VQ35DE	08.2004 - 12.2006	フィッティングパーツ

Open full screen picture Up to the top

081466202H 21400 - radiator assembly 21400F - screw 21400FA - screw 21412EA - seal, packing radiator 21430 - cap assembly, radiator 21432 - neck assembly, filler 21435 - label, caution radiator 21440G - clip 21440GA - clip 21476 - shroud, upper 21477 - shroud, lower 21496 - seal, radiator 21496+A - seal, radiator 21501 - hose, radiator upper 21501A - clamp, hose 21501AA - clamp, hose 21503 - hose, radiator lower 21503A - clamp, hose 21510 - tank assembly, reserve 21510G - screw 21515 - hose, reserve tank 21515E - clip 21515EA - clip 21516 - cap, reservoir tank 21560E - mounting rubber, radiator upper 21560F - mounting rubber, radiator lower 21560N - bracket, radiator mounting upper 21599N - label, caution motor fan 21631 - hose, auto transmission oil cooler 21631+A - hose, auto transmission oil cooler

---

Applies for models	Manufacture period	Spec
VQ35DE	12.2006 - 10.2007	フィッティングパーツ

Open full screen picture Up to the top

081466202H 21400 - radiator assembly 21400F - screw 21400FA - screw 21412EA - seal, packing radiator 21430 - cap assembly, radiator 21432 - neck assembly, filler 21435 - label, caution radiator 21440G - clip 21440GA - clip 21476 - shroud, upper 21477 - shroud, lower 21496 - seal, radiator 21496+A - seal, radiator 21501 - hose, radiator upper 21501A - clamp, hose 21501AA - clamp, hose 21503 - hose, radiator lower 21503A - clamp, hose 21510 - tank assembly, reserve 21510G - screw 21515 - hose, reserve tank 21515E - clip 21515EA - clip 21516 - cap, reservoir tank 21560E - mounting rubber, radiator upper 21560F - mounting rubber, radiator lower 21560N - bracket, radiator mounting upper 21631 - hose, auto transmission oil cooler 21631+A - hose, auto transmission oil cooler

---

Applies for models	Manufacture period	Spec
VQ35DE	10.2007 - ...	ラジエーター

Open full screen picture Up to the top

21400 - radiator assembly 21408M - core assembly, radiator 21412 - tank, radiator upper 21412E - seal, packing radiator 21463M - tank, radiator RH & oil cooler 21480 - cock, water drain 21480G - packing, drain cock

---

Applies for models	Manufacture period	Spec
VQ35DE	10.2007 - ...	フィッティングパーツ

Open full screen picture Up to the top

081466202H 21400 - radiator assembly 21400F - screw 21400FA - screw 21412EA - seal, packing radiator 21430 - cap assembly, radiator 21432 - neck assembly, filler 21435 - label, caution radiator 21440G - clip 21440GA - clip 21476 - shroud, upper 21477 - shroud, lower 21496 - seal, radiator 21496+A - seal, radiator 21501 - hose, radiator upper 21501A - clamp, hose 21501AA - clamp, hose 21501AB - clamp, hose 21501AD - clamp, hose 21503 - hose, radiator lower 21503A - clamp, hose 21503AA - clamp, hose 21503AB - clamp, hose 21503AC - clamp, hose 21510 - tank assembly, reserve 21510G - screw 21515 - hose, reserve tank 21515E - clip 21515EA - clip 21516 - cap, reservoir tank 21560E - mounting rubber, radiator upper 21560F - mounting rubber, radiator lower 21560N - bracket, radiator mounting upper 21631 - hose, auto transmission oil cooler 21631+A - hose, auto transmission oil cooler

Elgrand E51
