310 - automatic transmission, transaxle & fit (unit) for Nissan Crew TSK30

	Frame / Series TSK30 / K30 body S (sedan ) engine RD28E (2800 diesel ) type TRN (driving school car ) Manufacture period 06.2002 - 12.2005 grade E transmission AT (AT )

---

Applies for models	Manufacture period	Spec
RD28E.AT	08.1999 - 06.2002	トランスミッション アッセンブリー
RD28E.MT +RD28E.AT	06.2002 - 12.2005	トランスミッション アッセンブリー

Open full screen picture Up to the top

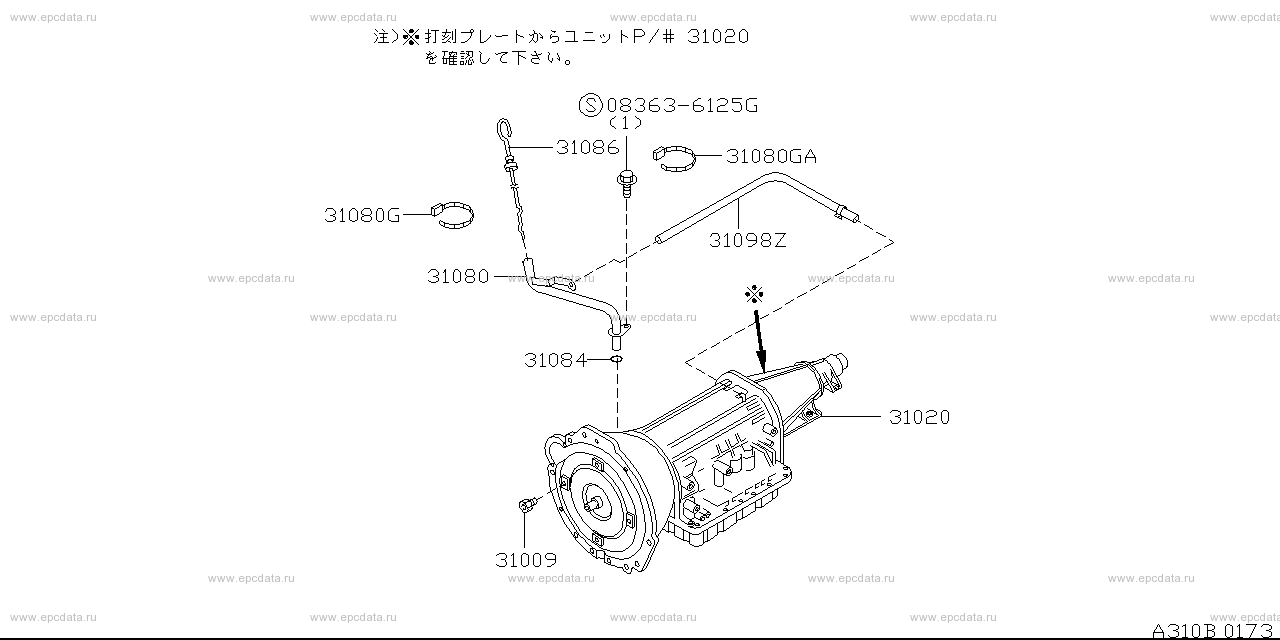

083636125G 31009 - bolt, self lock 31020 - transmission assembly, automatic 31080 - pipe assembly, oil charging 31080G - band 31080GA - band 31084 - seal,O ring 31086 - gauge assembly, oil level 31098Z - hose, breather

---

Applies for models	Manufacture period	Spec
RD28E.AT	03.2000 - 06.2002	Ｔ／ＭＴＯＥＮＧ．フィッティングパーツ

Open full screen picture Up to the top

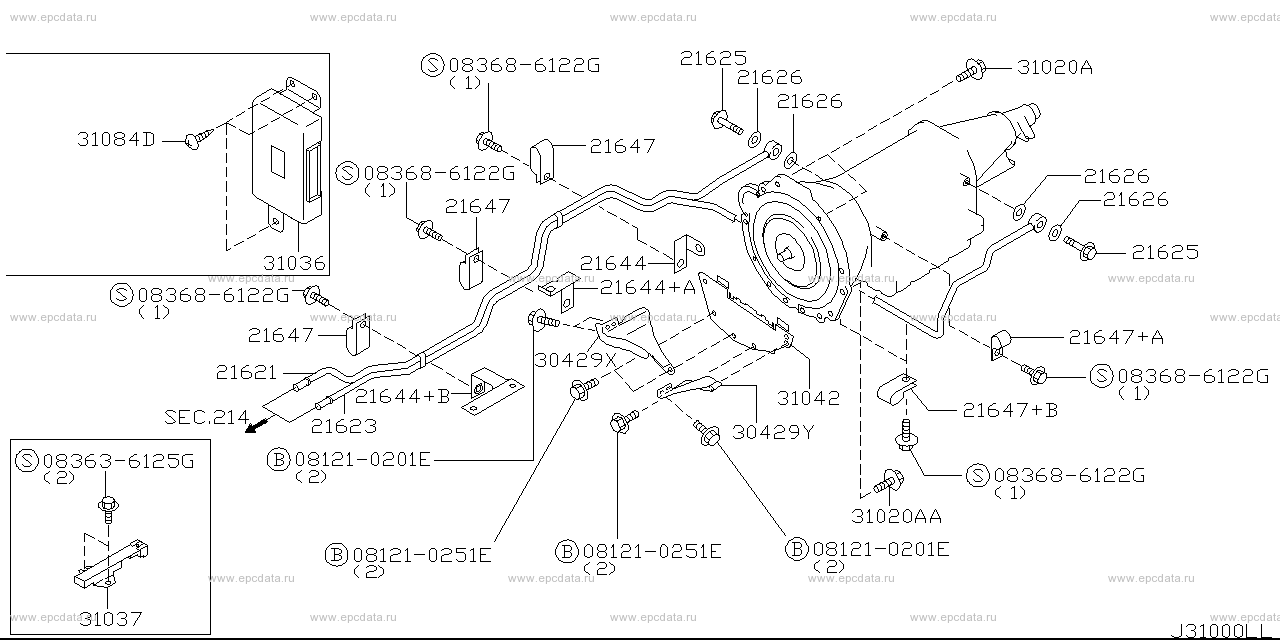

081210201E 081210251E 083636125G 083686122G 21621 - tube assembly, oil cooler 21623 - tube assembly, oil cooler 21625 - bolt, connector 21626 - washer, seal 21644 - bracket, tube clamp 21644+A - bracket, tube clamp 21644+B - bracket, tube clamp 21647 - clamp, tube 21647+A - clamp, tube 21647+B - clamp, tube 30429X - gusset, transmission to engine 30429Y - gusset, transmission to engine 31020A - bolt 31020AA - bolt 31036 - control unit, shift,,A/T control unit 31037 - register assembly, auto transmission 31042 - cover, dust 31084D - screw

---

Applies for models	Manufacture period	Spec
RD28E.MT +RD28E.AT	06.2002 - 12.2005	Ｔ／Ｍ ＴＯ ＥＮＧ．フィッティングパーツ

Open full screen picture Up to the top

081210201E 081210251E 083636125G 083686122G 085406162A 21621 - tube assembly, oil cooler 21623 - tube assembly, oil cooler 21625 - bolt, connector 21626 - washer, seal 21644 - bracket, tube clamp 21644+A - bracket, tube clamp 21644+B - bracket, tube clamp 21647 - clamp, tube 21647+A - clamp, tube 21647+B - clamp, tube 30429X - gusset, transmission to engine 30429Y - gusset, transmission to engine 31020A - bolt 31020AA - bolt 31036 - control unit, shift,,A/T control unit 31037 - register assembly, auto transmission 31042 - cover, dust

Crew TSK30
