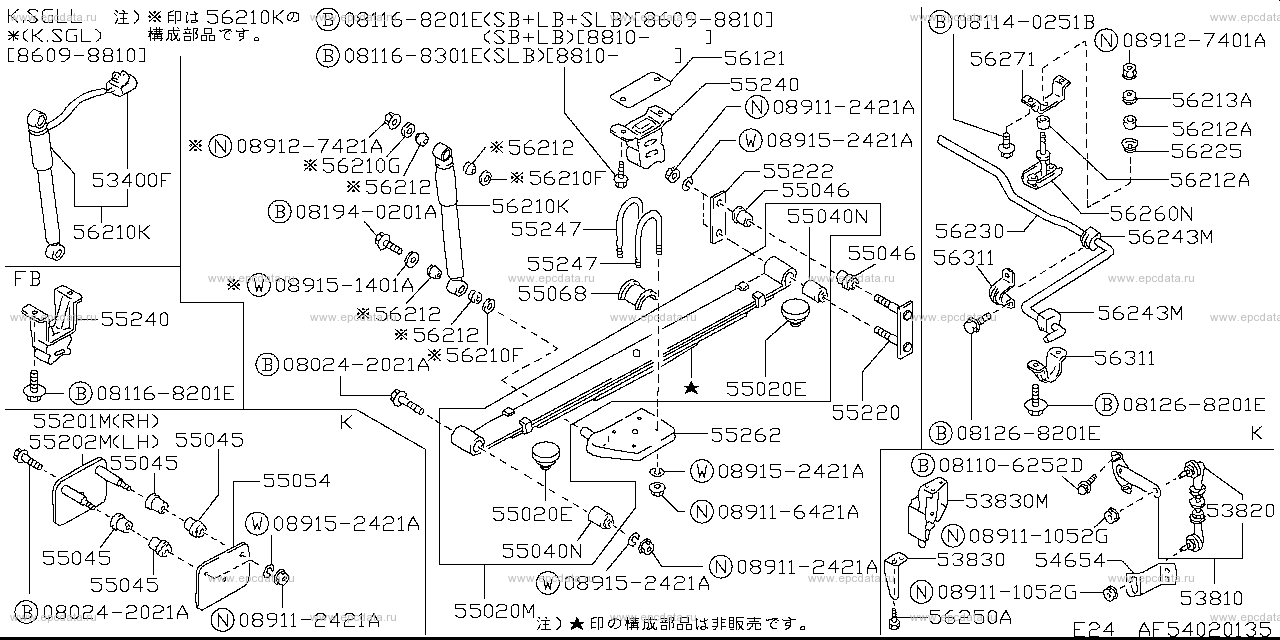

F5402 - rear suspension (chassis) for Nissan Caravan / Homy KSE24

	Frame / Series KSE24 / E24 body K (coach ) truck body / door SB/4D (short body 4-door ) seating capacity 9 (9-seater ) Manufacture period 09.1986 - 10.1990 engine LD20T (2000 diesel turbo ) grade GL transmission F5 (manual transmission 5-speed )     minor MAE (9305 before minor ) drive 2WD (2 wheel drive (FR))

Applies for models	Manufacture period	Spec
K.2WD	09.1986 - ...

Open full screen picture

080242021A 081106252D 081140251B 081168201E 081168301E 081268201E 081940201A 089111052G 089112421A 089116421A 089127401A 089127421A 089151401A 089152421A 53400F - clip 53810 - sensor assembly, height front RH 53820 - rod assembly, sensor 53830 - protector, sensor 53830M - bracket assembly, sensor RH 54654 - bracket, connector rod mounting 55020E - spacer rear spring 55020M - spring, rear suspension 55040N - bush, rear spring 55045 - bush, rear spring 55046 - bush, rear spring 55054 - plate, location rear spring 55068 - protector, shock absorber 55201M - bracket assembly, rear spring front RH 55202M - bracket assembly, rear spring front LH 55220 - shackle assembly, rear spring 55222 - shackle, rear spring 55240 - bumper assembly, bound rear suspension 55247 - clip, rear spring 55262 - seat assembly, rear spring lower RH 56121 - bumper, bound 56210F - washer 56210G - washer, lock 56210K - absorber kit, shock rear 56212 - bushing, shock absorber 56212A - bushing, shock absorber 56213A - washer 56225 - washer, special 56230 - stabilizer, rear 56243M - bushing, rear stabilizer 56250A - screw 56260N - rod assembly, connecting stabilizer 56271 - bracket, rear stabilizer 56311 - bracket, rear stabilizer

Caravan / Homy KSE24
