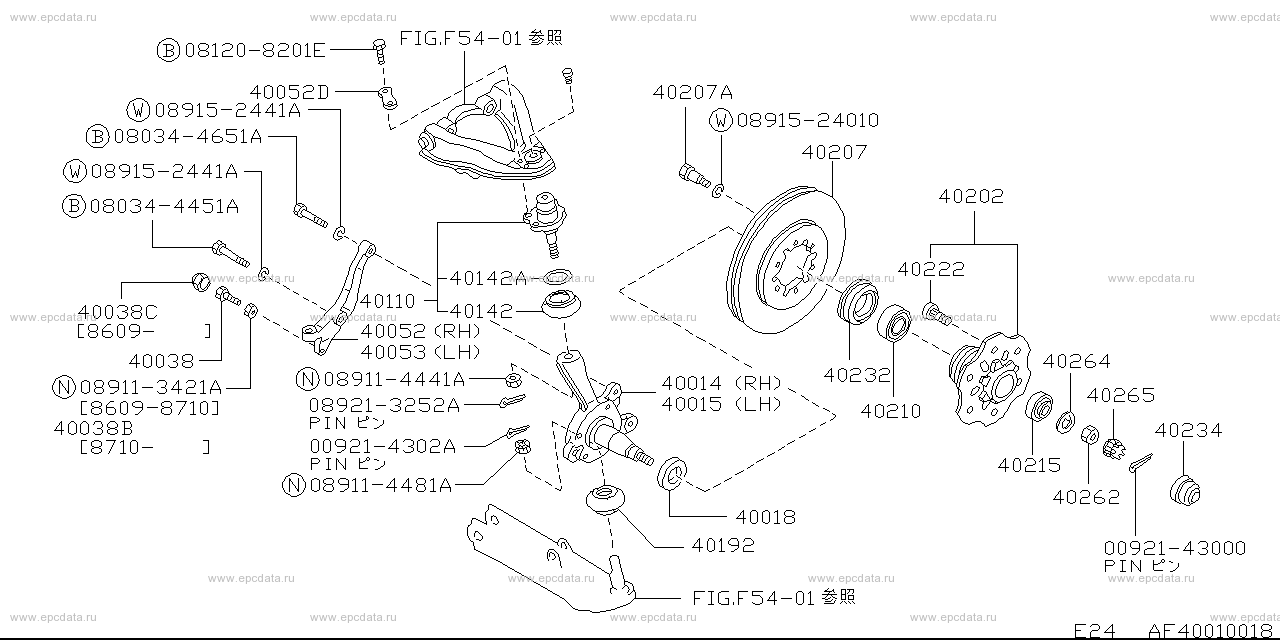

F4001 - front axle (chassis) for Nissan Caravan / Homy KSE24

	Frame / Series KSE24 / E24 body K (coach ) truck body / door SB/4D (short body 4-door ) seating capacity 9 (9-seater ) Manufacture period 09.1986 - 10.1990 engine LD20T (2000 diesel turbo ) grade GL transmission F5 (manual transmission 5-speed )     minor MAE (9305 before minor ) drive 2WD (2 wheel drive (FR))

Applies for models	Manufacture period	Spec
2WD	09.1986 - ...

Open full screen picture

0092143000 009214302A 080344451A 080344651A 081208201E 089113421A 089114441A 089114481A 0891524010 089152441A 089213252A 40014 - spindle, knuckle RH 40015 - spindle, knuckle LH 40018 - collar, spindle 40038 - bolt, stopper 40038B - nut, stopper bolt 40038C - cap, stopper bolt 40052 - arm, knuckle RH 40052D - washer, lock 40053 - arm, knuckle LH 40110 - joint assembly, ball upper RH 40142 - cover, dust ball joint upper 40142A - clamp, dust cover 40192 - cover, dust ball joint lower inner 40202 - hub assembly, road wheel front RH 40207 - rotor, disc brake front 40207A - bolt, rotor 40210 - bearing assembly, front wheel 40215 - bearing assembly, front wheel 40222 - bolt, hub 40232 - seal, grease front hub 40234 - cap, hub front wheel 40262 - nut, lock front wheel bearing 40264 - washer, front wheel bearing 40265 - cap, adjusting

Caravan / Homy KSE24
