D3802 - rear final drive (unit) for Nissan Caravan / Homy KSE24

	Frame / Series KSE24 / E24 body K (coach ) truck body / door SB/4D (short body 4-door ) seating capacity 9 (9-seater ) Manufacture period 09.1986 - 10.1990 engine LD20T (2000 diesel turbo ) grade GL transmission F5 (manual transmission 5-speed )     minor MAE (9305 before minor ) drive 2WD (2 wheel drive (FR))

Applies for models	Manufacture period	Spec
C200	09.1986 - ...	スタンダード

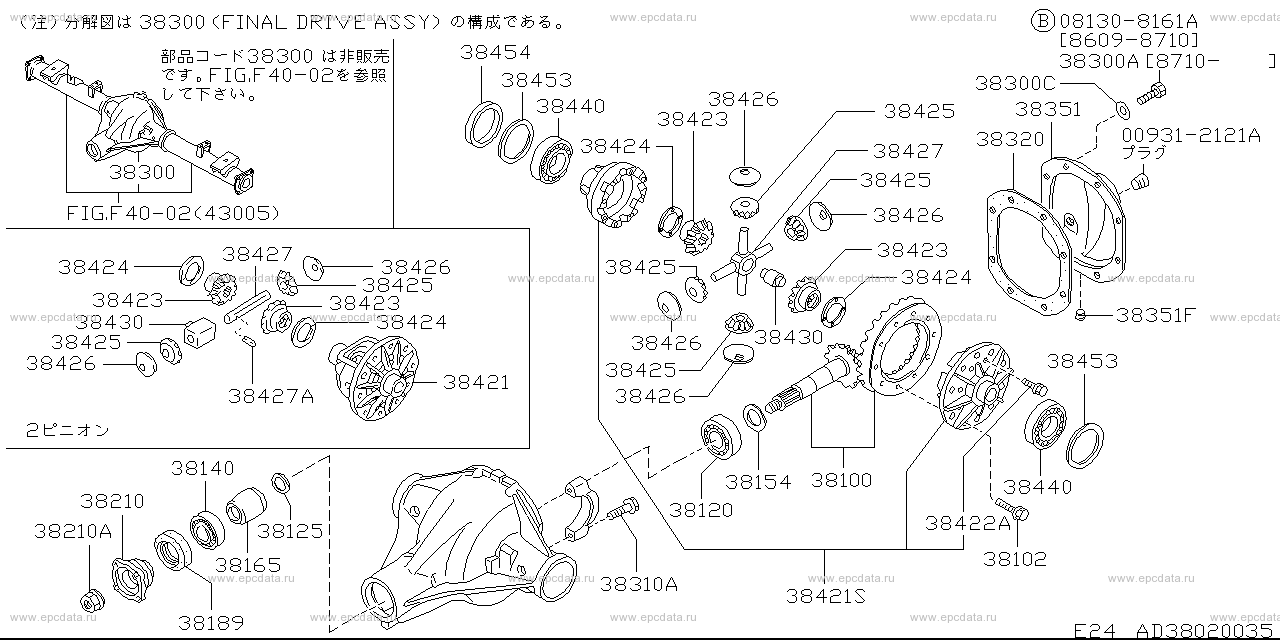

Open full screen picture

009312121A 081308161A 38100 - gear set, final drive 38102 - bolt, drive gear 38120 - bearing, drive pinion rear 38125 - washer, adjust drive pinion bearing 38140 - bearing, drive pinion front 38154 - washer, adjust drive pinion 38165 - spacer, drive pinion bearing 38189 - seal, oil drive pinion 38210 - flange assembly, companion 38210A - nut, drive pinion 38300 - final drive assembly 38300A - bolt, final drive 38300C - washer, final drive 38310A - bolt, bearing cap 38320 - gasket, gear carrier 38351 - cover, rear final drive 38351F - plug, drain 38421 - case, differential 38421S - case set, differential 38422A - bolt, coupling differential case 38423 - gear, side 38424 - washer, thrust side gear 38425 - pinion, mate 38426 - washer, thrust pinion mate 38427 - shaft, pinion mate 38427A - pin, lock pinion shaft 38430 - block, thrust 38440 - bearing, differential side 38453 - shim, adjust side bearing 38454 - spacer, differential side

Caravan / Homy KSE24
