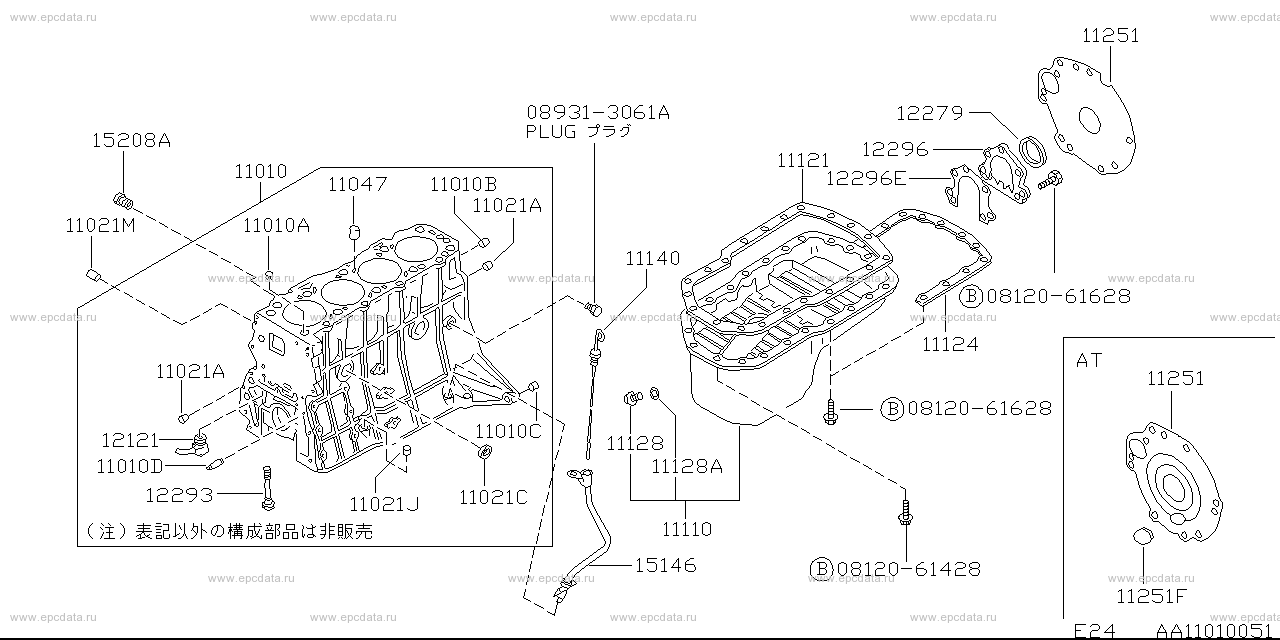

A1101 - cylinder block & oil pan (engine) for Nissan Caravan / Homy KSE24

	Frame / Series KSE24 / E24 body K (coach ) truck body / door SB/4D (short body 4-door ) seating capacity 9 (9-seater ) Manufacture period 09.1986 - 10.1990 engine LD20T (2000 diesel turbo ) grade DX (deluxe ) transmission F5 (manual transmission 5-speed )     minor MAE (9305 before minor ) drive 2WD (2 wheel drive (FR))

Applies for models	Manufacture period	Spec
LD20T	09.1986 - ...

Open full screen picture

0812061428 0812061628 089313061A 11010 - block assembly, cylinder 11010A - dowel, block to head 11010B - dowel, block to transmission 11010C - dowel, block 11010D - dowel, block 11021A - plug, taper 11021C - plug, welch 11021J - plug, taper level gauge 11021M - plug, taper 11047 - jet, oil cylinder head 11110 - pan assembly, oil 11121 - gasket, oil pan 11124 - reinforcement, oil pan 11128 - plug, drain 11128A - washer, drain plug 11140 - gauge, oil level 11251 - plate, engine rear 11251F - plug, rear plate 12121 - jet assembly, oil 12279 - seal, oil crankshaft rear 12293 - bolt, main bearing cap 12296 - retainer, oil seal rear 12296E - gasket, retainer 15146 - guide, oil level gauge 15208A - stud, oil filter

Caravan / Homy KSE24
