480 - manual steering gear (chassis) for Nissan Bluebird Sylphy KG11

	Frame / Series KG11 / G11 body S (sedan ) engine MR20DE (MR20DE engine ) drive 2WD (two wheel drive ) Manufacture period 05.2007 - 05.2009 grade 20M transmission CVT (continuously variable transmission )

---

Applies for models	Manufacture period	Spec
HR15DE +MR20DE	12.2005 - 05.2007

Open full screen picture Up to the top

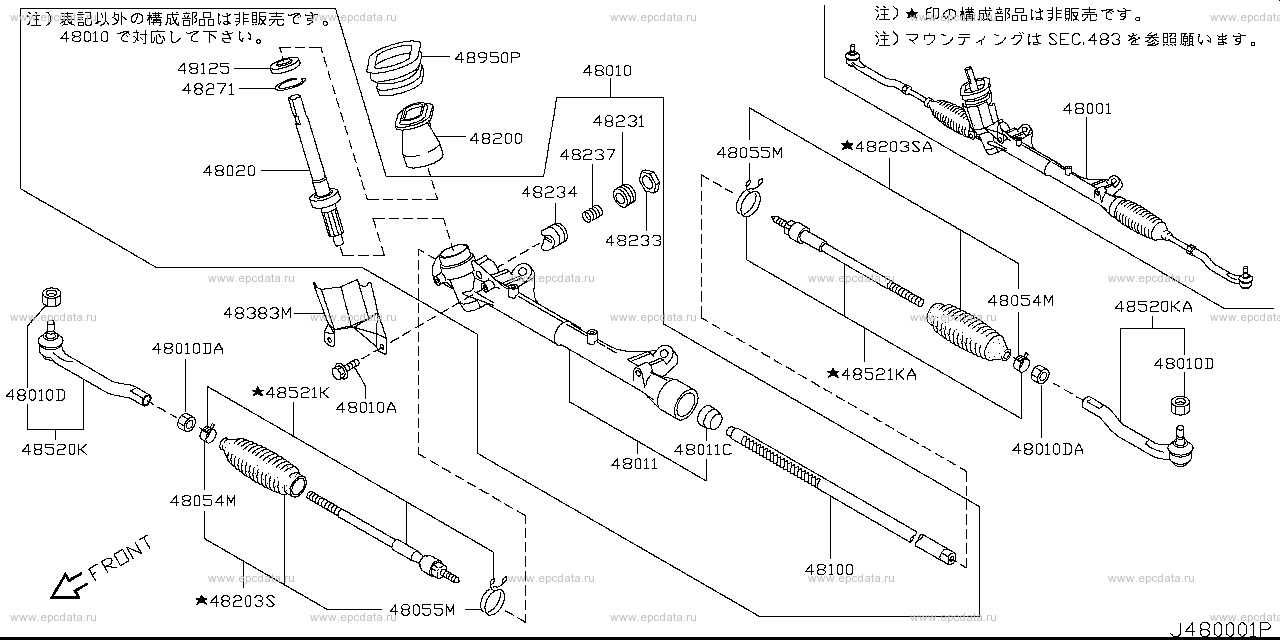

48001 - gear & linkage, steering 48010 - gear assembly, steering 48010A - bolt 48010D - nut 48010DA - nut 48011 - housing, steering gear 48020 - pinion assembly, steering gear 48054M - clamp, boot 48055M - clamp, boot 48100 - rack, steering gear 48125 - seal, oil 48200 - cover, gear box rear 48203S - boot kit, manual steering gear 48203SA - boot kit, manual steering gear 48231 - screw, adjust 48233 - nut 48234 - retainer steering gear 48237 - spring, retainer 48271 - ring, snap 48383M - bracket, heat insulator steering 48520K - socket kit, tie rod outer 48520KA - socket kit, tie rod outer 48521K - socket kit, tie rod inner 48521KA - socket kit, tie rod inner 48950P - cover assembly, hole

---

Applies for models	Manufacture period	Spec
HR15DE +MR20DE	05.2007 - ...

Open full screen picture Up to the top

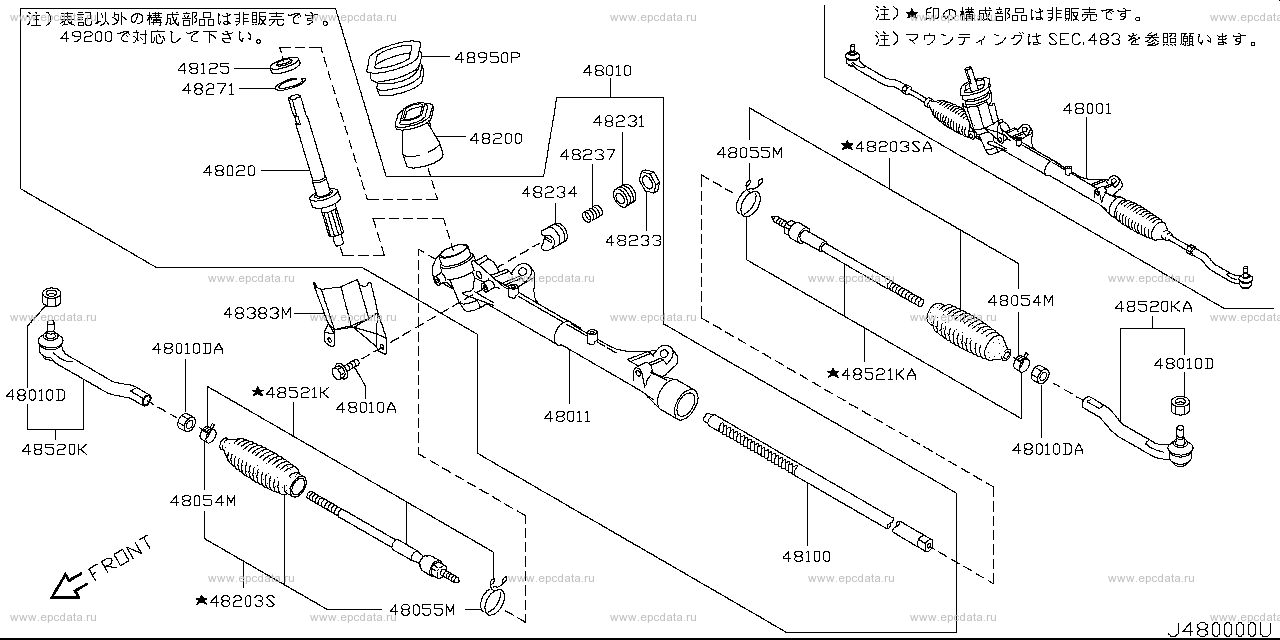

48001 - gear & linkage, steering 48010 - gear assembly, steering 48010A - bolt 48010D - nut 48010DA - nut 48011 - housing, steering gear 48011C - bush 48020 - pinion assembly, steering gear 48054M - clamp, boot 48055M - clamp, boot 48100 - rack, steering gear 48125 - seal, oil 48200 - cover, gear box rear 48203S - boot kit, manual steering gear 48203SA - boot kit, manual steering gear 48231 - screw, adjust 48233 - nut 48234 - retainer steering gear 48237 - spring, retainer 48271 - ring, snap 48383M - bracket, heat insulator steering 48520K - socket kit, tie rod outer 48520KA - socket kit, tie rod outer 48521K - socket kit, tie rod inner 48521KA - socket kit, tie rod inner 48950P - cover assembly, hole

Bluebird Sylphy KG11
