B85 - corner sensor for Nissan Bluebird Sylphy KG11

	Frame / Series KG11 / G11 body S (sedan ) engine MR20DE (MR20DE engine ) drive 2WD (two wheel drive ) Manufacture period 05.2007 - 05.2009 grade 20M transmission CVT (continuously variable transmission )

---

Applies for models	Manufacture period	Spec

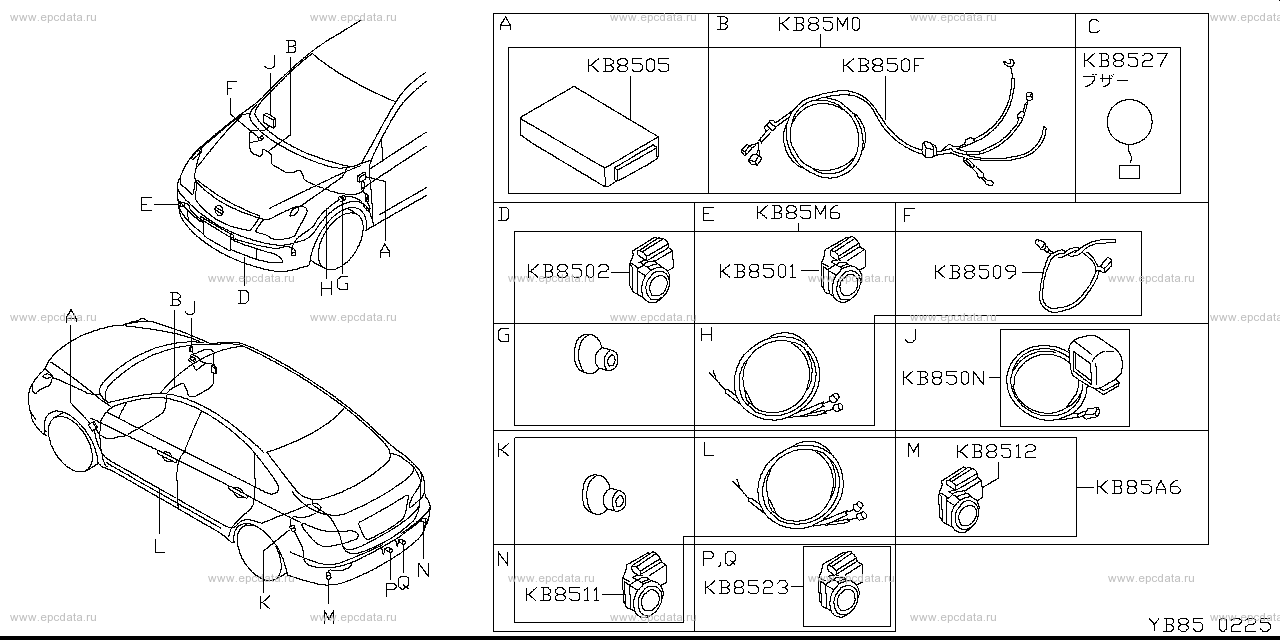

ALL	12.2005 - ...	コーナーセンサー（フロント）

Open full screen picture Up to the top

KB8501 - sensor FR,RH KB8502 - sensor FR,LH KB8505 - controller sensor FR KB8509 - SW, sensor KB850F - harness sensor main KB850N - indicator, sensor KB8527 - buzzer, corner sensor KB85M0 - controller sensor KB85M6 - harness sensor FR

---

Applies for models	Manufacture period	Spec

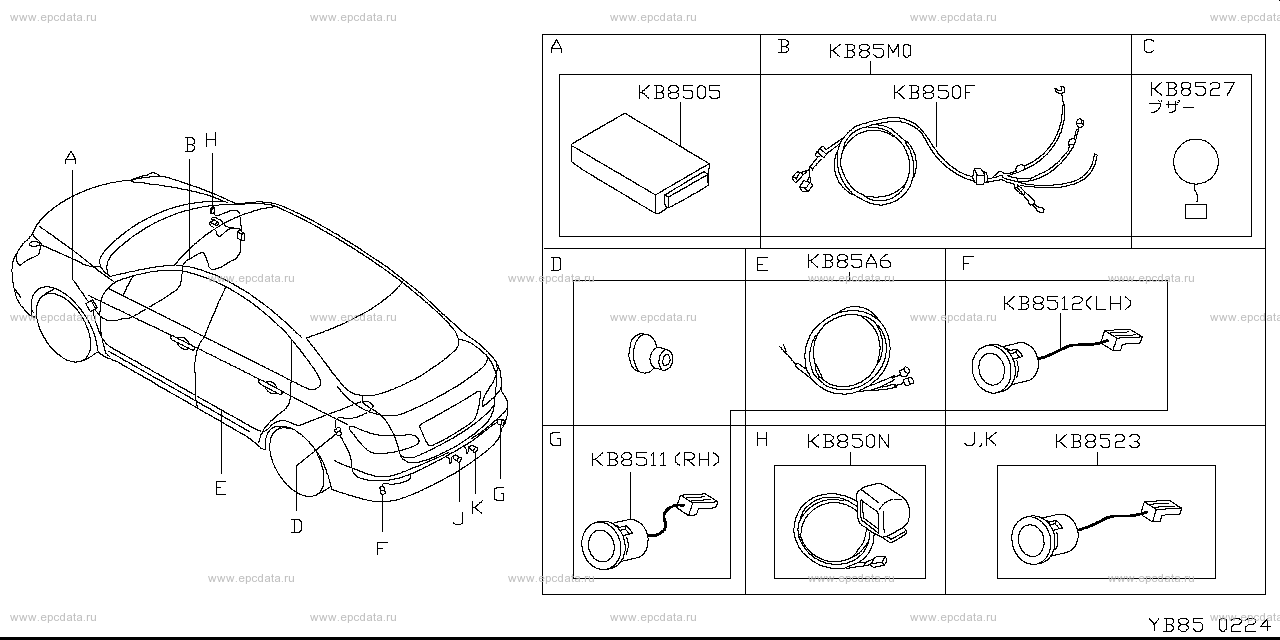

ALL	12.2005 - ...	コーナーセンサー（リヤ）

Open full screen picture Up to the top

KB8505 - controller sensor FR KB850F - harness sensor main KB850N - indicator, sensor KB8511 KB8512 - sensor rear,LH KB8523 - sensor unit, back A KB8527 - buzzer, corner sensor KB85A6 - harness sensor rear KB85M0 - controller sensor

---

Applies for models	Manufacture period	Spec
ALL	12.2005 - ...	コーナーセンサー（フロント＋リヤ）

Open full screen picture Up to the top

KB8501 - sensor FR,RH KB8502 - sensor FR,LH KB8505 - controller sensor FR KB8509 - SW, sensor KB850F - harness sensor main KB850N - indicator, sensor KB8511 KB8512 - sensor rear,LH KB8523 - sensor unit, back A KB8527 - buzzer, corner sensor KB85A6 - harness sensor rear KB85M0 - controller sensor KB85M6 - harness sensor FR

Bluebird Sylphy KG11
