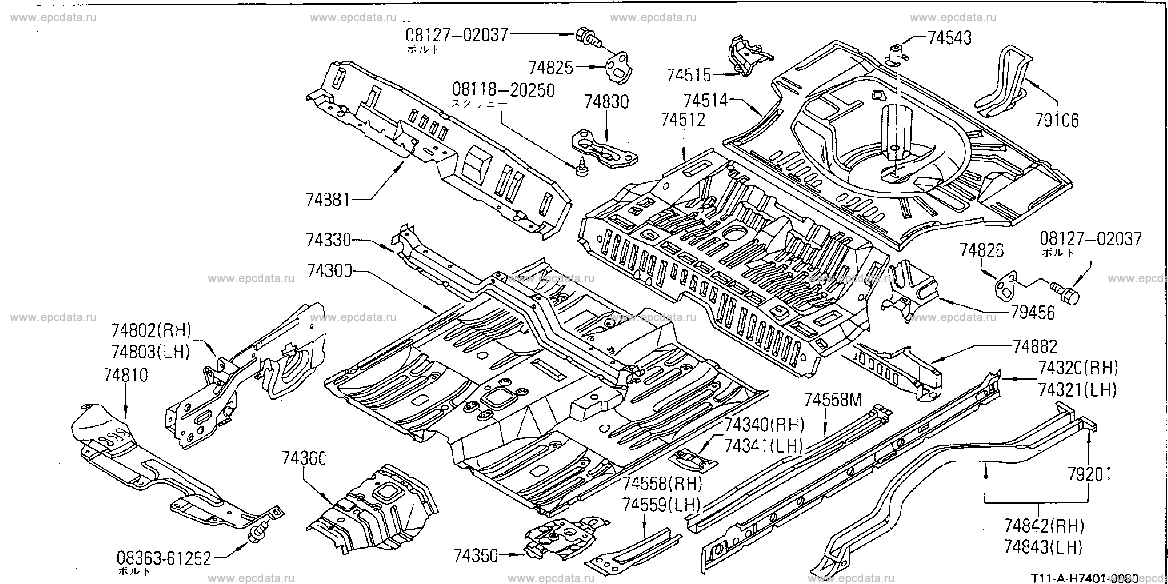

H7401 - floor panel (body) for Nissan Auster / Stanza / Violet T11



Frame / SeriesT11 / T11 シャケイSTZ (Stanza )body S (sedan )engine CA16S (1600 gasoline single cab )
Manufacture period06.1981 - 05.1983grade SGLtransmission AT (floor automatic )


Applies for modelsManufacture periodSpec
ALL06.1981 - ...

Open full screen pictureOpen full screen picture

0812702037
0836361252
74300 - floor, front
74320 - sill, inner RH
74321 - sill, inner LH
74330 - member, second cross RH
74340 - member, front seat mounting RH
74341 - member, front seat mounting LH
74350 - bracket, seat belt anchor
74360 - bolster, front
74512 - floor, rear front
74514 - floor, rear rear
74515 - bracket, jack mounting
74543 - bracket, spare tire clamp
74558 - extension, front floor side RH
74558M - extension, front floor side rear
74559 - extension, front floor side LH
74802 - member, side front RH
74803 - member, side front LH
74810 - board, splash shield
74825 - hook, rear RH
74826 - hook, rear LH
74830 - bracket, suspension rod RH
74842 - member, side rear RH
74843 - member, side rear LH
74881 - member, cross rear outer
74882 - member, cross rear inner
79106 - reinforcement, tail gate striker
79201 - extension, bulkhead
79456 - brace assembly, rear seat back
