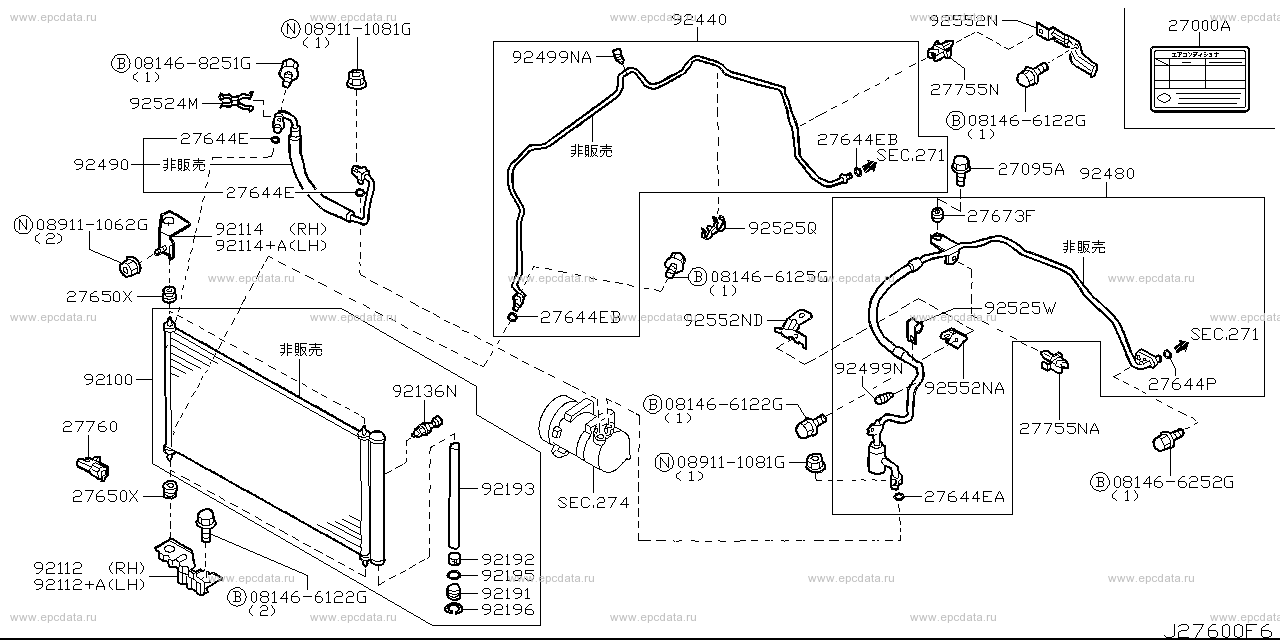

276 - air conditioner (engine room) (Denso) for Nissan X-Trail T30
| |||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.QR20DE | 10.2000 - 06.2003 |
| 081466122G 081466125G 081466252G 081468251G 089111062G 089111081G 27000A - label, air conditioner 27095A - screw 27644E - seal,O ring 27644EA - seal,O ring 27644EB - seal,O ring 27644P - O ring 27650X - mounting rubber, condenser upper 27673F - protector, clamp tube 27755N - insulator 27755NA - insulator 27760 - sensor assembly, ambient 92100 - condenser & liquid tank assembly 92112 - bracket assembly, condenser 92112+A - bracket assembly, condenser 92114 - bracket, condenser 92114+A - bracket, condenser 92136N - sensor assembly, pressure 92191 - cap, liquid tank 92192 - filter, liquid tank 92193 - dehumidifier 92195 - seal,O ring 92196 - ring, liquid tank 92440 - pipe, front cooler high 92480 - hose, flexible low 92490 - hose, flexible high 92499N - cap, charge valve 92499NA - cap, charge valve 92524M - clip 92525Q - clip 92525W - clip 92552N - bracket, tube clip 92552NA - bracket, tube clip 92552ND - bracket, tube clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.QR20DE | 06.2003 - 12.2005 |
| 081466122G 081466125G 081466252G 081468251G 083605202D 083606122D 089111062G 089111081G 27000A - label, air conditioner 27095A - screw 27640 - tank assembly, liquid 27640E - bracket, liquid tank 27640EA - bracket, liquid tank 27644E - seal,O ring 27644EA - seal,O ring 27644EB - seal,O ring 27644EC - seal,O ring 27644P - O ring 27650 - condenser assembly 27650X - mounting rubber, condenser upper 27673F - protector, clamp tube 27755N - insulator 27755NA - insulator 27760 - sensor assembly, ambient 92112 - bracket assembly, condenser 92112+A - bracket assembly, condenser 92114 - bracket, condenser 92114+A - bracket, condenser 92136N - sensor assembly, pressure 92440 - pipe, front cooler high 92480 - hose, flexible low 92490 - hose, flexible high 92499N - cap, charge valve 92499NA - cap, charge valve 92524M - clip 92525Q - clip 92525W - clip 92552N - bracket, tube clip 92552NA - bracket, tube clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W.QR20DE | 12.2005 - ... |
| 081466122G 081466125G 081466252G 081468251G 083606122D 089111062G 089111081G 27000A - label, air conditioner 27095A - screw 27640 - tank assembly, liquid 27640A - screw 27640E - bracket, liquid tank 27640EA - bracket, liquid tank 27644E - seal,O ring 27644EA - seal,O ring 27644EB - seal,O ring 27644EC - seal,O ring 27644P - O ring 27650 - condenser assembly 27650X - mounting rubber, condenser upper 27673F - protector, clamp tube 27755N - insulator 27755NA - insulator 27760 - sensor assembly, ambient 92112 - bracket assembly, condenser 92112+A - bracket assembly, condenser 92114 - bracket, condenser 92114+A - bracket, condenser 92136N - sensor assembly, pressure 92440 - pipe, front cooler high 92480 - hose, flexible low 92490 - hose, flexible high 92499N - cap, charge valve 92499NA - cap, charge valve 92524M - clip 92525Q - clip 92525W - clip 92552N - bracket, tube clip 92552NA - bracket, tube clip |
