226 - engine control unit (engine) for Nissan X-Trail T30

	Frame / Series T30 / T30 body W (wagon ) engine QR20DE (QR20DE engine ) drive 2WD (two-wheel drive ) Manufacture period 10.2000 - ... grade S transmission AT (automatic transmission )

---

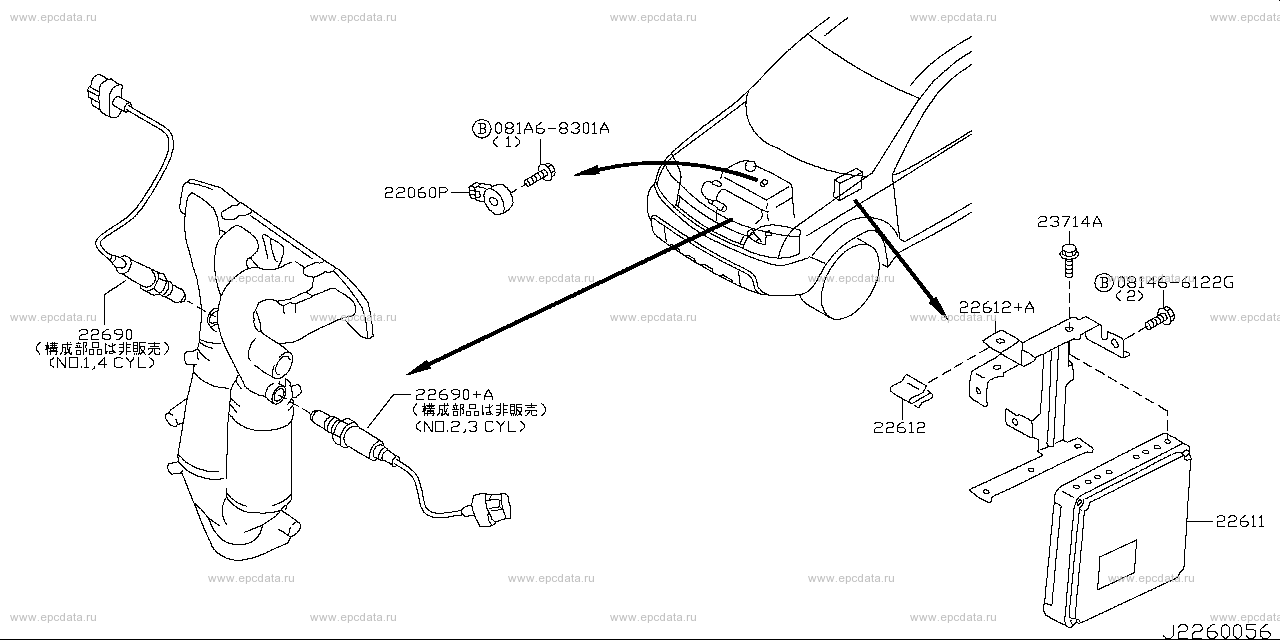

Applies for models	Manufacture period	Spec
QR20DE	06.2003 - 12.2005	STD

Open full screen picture Up to the top

081666161A 081A68301A 22060P - sensor assembly, knock 22611 - engine control module 22611A - screw 22612 - bracket, control unit 22690 - sensor assembly,O2 23714 - bracket, control module

---

Applies for models	Manufacture period	Spec
QR20DE	12.2005 - ...	STD

Open full screen picture Up to the top

081A68301A 081A86161A 22060P - sensor assembly, knock 22611 - engine control module 22612 - bracket, control unit 22690 - sensor assembly,O2 23714 - bracket, control module

---

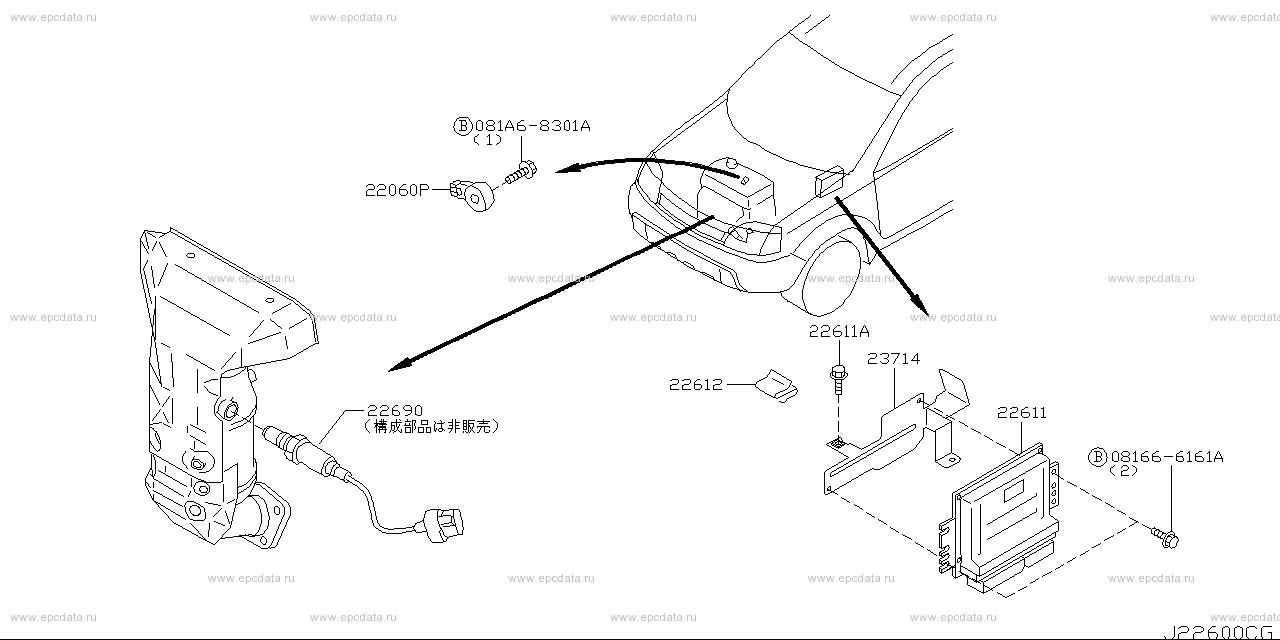

Applies for models	Manufacture period	Spec
QR20DE	10.2000 - 06.2003

Open full screen picture Up to the top

081466122G 081A68301A 22060P - sensor assembly, knock 22611 - engine control module 22612 - bracket, control unit 22612+A - bracket, control unit 22690 - sensor assembly,O2 22690+A - sensor assembly,O2 23714A - bolt

X-Trail T30
