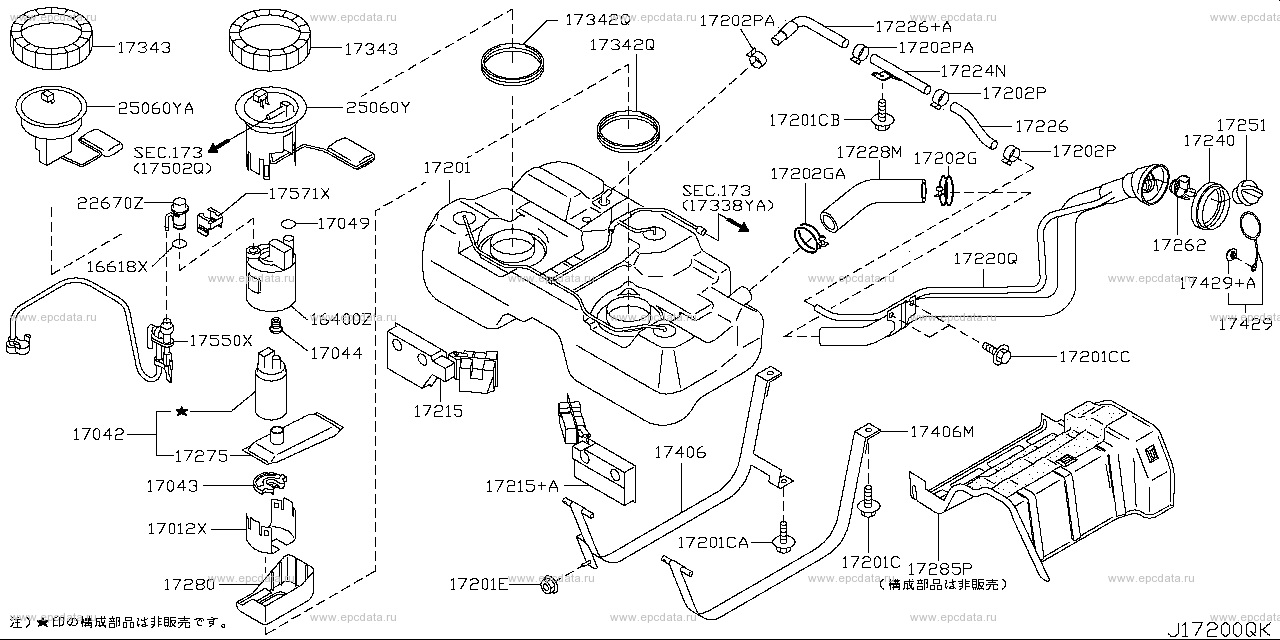

| 16400Z - strainer assembly, fuel
16618X - seal,0 ring
17012X - bracket, fuel pump
17042 - pump assembly, fuel
17043 - support, pump rubber
17044 - packing, fuel pump
17049 - seal,O ring
17201 - tank assembly, fuel
17201C - bolt
17201CA - bolt
17201CB - bolt
17201CC - bolt
17201E - nut
17202G - clamp
17202GA - clamp
17202P - clamp
17202PA - clamp
17215 - baffle assembly, fuel tank
17215+A - baffle assembly, fuel tank
17220Q - tube assembly, filler
17224N - tube, ventilation
17226 - hose, ventilation
17226+A - hose, ventilation
17228M - hose, filler
17240 - grommet, filler base
17251 - cap assembly, filler
17262 - shutter, filler tube
17275 - filter, fuel tank
17280 - chamber assembly, fuel tank
17285P - protector, fuel tank
17342Q - packing, fuel gauge
17343 - plate, lock fuel gauge
17406 - band assembly, fuel tank mounting
17406M - band assembly, fuel tank mounting
17429 - pin, fuel cap mounting
17429+A - pin, fuel cap mounting
17550X - hose, fuel
17571X - clip
22670Z - regulator assembly, pressure
25060Y - sender unit, fuel gauge
25060YA - sender unit, fuel gauge |
