210 - water pump & cooling fan & thermostat (engine) for Nissan Wingroad / AD Wagon VY11

	Frame / Series VY11 / Y11 body V (van ) engine QG13DE (QG13DE engine ) drive 2WD Manufacture period 06.1999 - ... grade DX (DX grade ) transmission AT.F4 (AT floor 4-speed ) spec BASIC (standard spec )

---

Applies for models	Manufacture period	Spec
QG13DE	10.2001 - 08.2002	サ−モスタット

Open full screen picture Up to the top

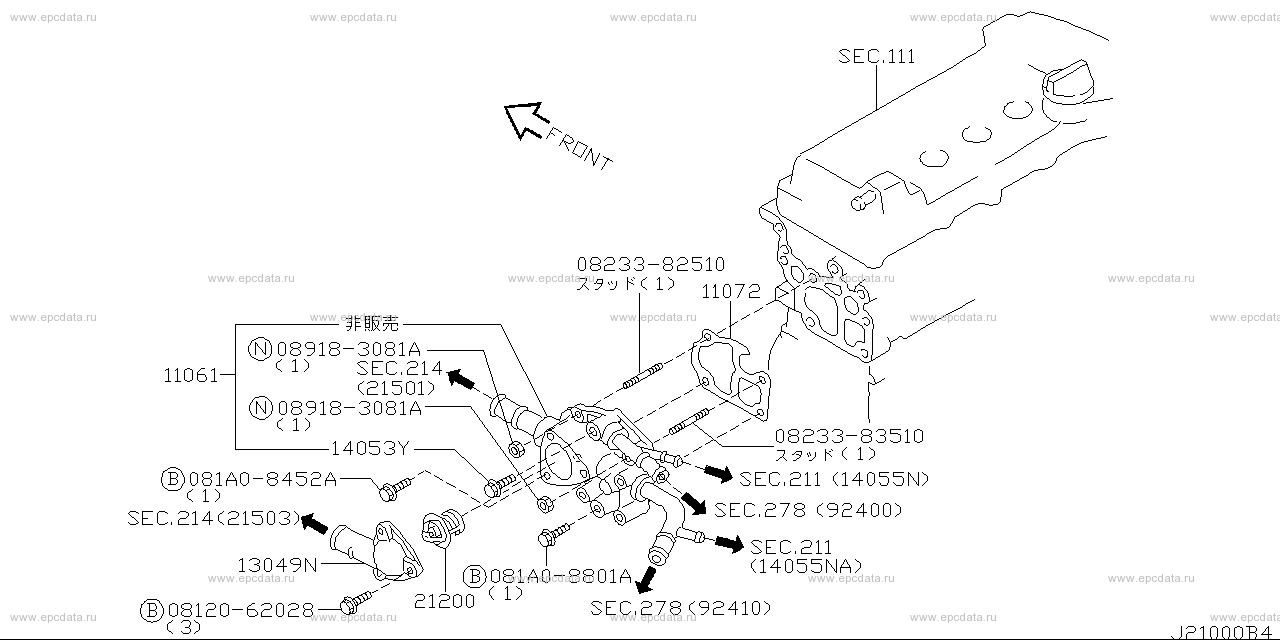

0812062028 081A08452A 081A08801A 0823382510 0823383510 089183081A 11061 - housing, thermostat 11072 - gasket, thermostat housing 13049N - inlet, water 14053Y - plug assembly, air relief 21200 - thermostat assembly

---

Applies for models	Manufacture period	Spec
QG13DE	08.2002 - ...	サ−モスタット

Open full screen picture Up to the top

0812062028 081A08452A 081A08801A 0823382510 0823383510 089183081A 11061 - housing, thermostat 11072 - gasket, thermostat housing 13049N - inlet, water 14053Y - plug assembly, air relief 21200 - thermostat assembly

---

Applies for models	Manufacture period	Spec
QG13DE	06.1999 - 10.2000	ウオ−タ−ポンプ
QG13DE	10.2000 - ...	ウオ−タ−ポンプ

Open full screen picture Up to the top

081A08201A 081A08301A 11061B - bolt 21010 - pump assembly, water 21014 - gasket, water pump 21051 - pulley, fan & water pump 22630 - sensor assembly, temperature (water temperature sensor)

---

Applies for models	Manufacture period	Spec
QG13DE	06.1999 - 10.2000	サ−モスタット
QG13DE	10.2000 - 10.2001	サ−モスタット

Open full screen picture Up to the top

0812062028 081A08452A 081A08801A 0823382510 0823383510 089183081A 11061 - housing, thermostat 11072 - gasket, thermostat housing 13049N - inlet, water 14053V - gasket, plug 14053Y - plug assembly, air relief 21200 - thermostat assembly 21435P - label, caution water

Wingroad / AD Wagon VY11
