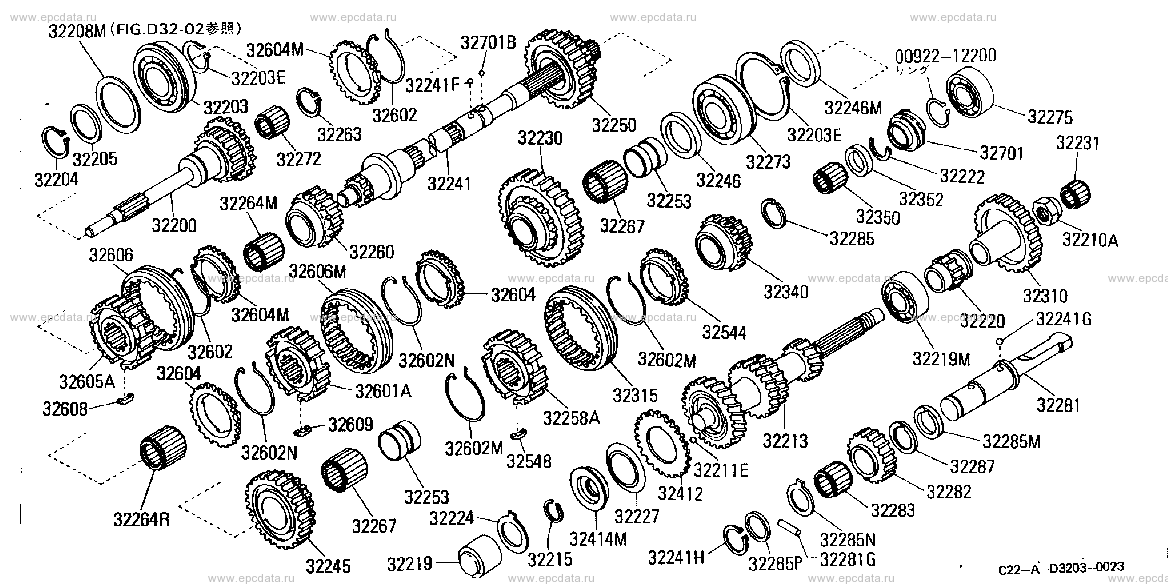

  Open full screen picture
| 0092212200
32200 - gear assembly, main drive
32203 - bearing, main drive
32203E - ring, main bearing
32204 - ring, snap
32205 - spacer, bearing main drive gear
32208M - shim, adjusting front cover
32210A - nut
32211E - ball, steel
32213 - gear, counter
32215 - ring, snap
32219 - bearing, counter shaft
32219M - bearing, counter shaft
32220 - gear, reverse counter
32222 - ring, snap
32224 - washer, thrust counter shaft
32227 - spring, sub gear counter drive gear
32230 - gear assembly, first
32231 - bearing, counter shaft
32241 - shaft, main
32241F - ball, steel
32241G - ball, steel
32241H - ring, snap
32245 - gear, reverse main shaft
32246 - washer, thrust
32246M - washer, thrust main shaft
32250 - gear assembly, second
32253 - bush, first gear
32258A - hub, synchronizer reverse & over drive
32260 - gear assembly, third
32263 - ring, snap
32264M - bearing, needle main shaft
32264R - bearing, needle main shaft
32267 - bush, main gear
32272 - bearing, pilot main
32273 - bearing, main shaft
32275 - bearing, main shaft
32281 - shaft, reverse idler
32281G - pin, retaining
32282 - gear, reverse idler
32283 - bearing, reverse idler gear
32285 - ring, snap
32285M - spacer, reverse idler
32285N - washer, thrust reverse idler
32285P - spacer, reverse idler
32287 - washer, thrust reverse idler
32310 - gear, over drive counter
32315 - sleeve, coupling
32340 - gear assembly, over drive
32350 - bearing, over drive gear
32352 - washer, thrust
32412 - gear, sub counter drive gear
32414M - bracket, sub gear counter drive gear
32544 - ring, balk
32548 - insert, shifting balk ring
32601A - hub, synchronizer first & second
32602 - spring, shifting insert
32602M - spring, shifting insert
32602N - spring, shifting insert
32604 - ring, balk
32604M - ring, balk
32605A - hub, synchronizer third & fourth
32606 - sleeve, coupling
32606M - sleeve, coupling
32608 - insert, shifting
32609 - insert, shifting
32701 - gear, drive speedometer
32701B - ball, steel |
