A1201 - piston & crankshaft & flywheel (engine) for Nissan Vanette KPC22

	Frame / Series KPC22 / C22 ｼｬｶﾞﾀ LK (standard roof coach ) deck S9 seating capacity A15S (1500 gasoline single cab ) Manufacture period 09.1985 - 09.1988 engine GL grade MT (manual transmission ) transmission R5 (shift 5-speed (column))     ｼﾌﾄﾀﾞﾝｽｳ 2WD (two-wheel drive ) drive

Applies for models	Manufacture period	Spec
A12+A15	09.1985 - ...

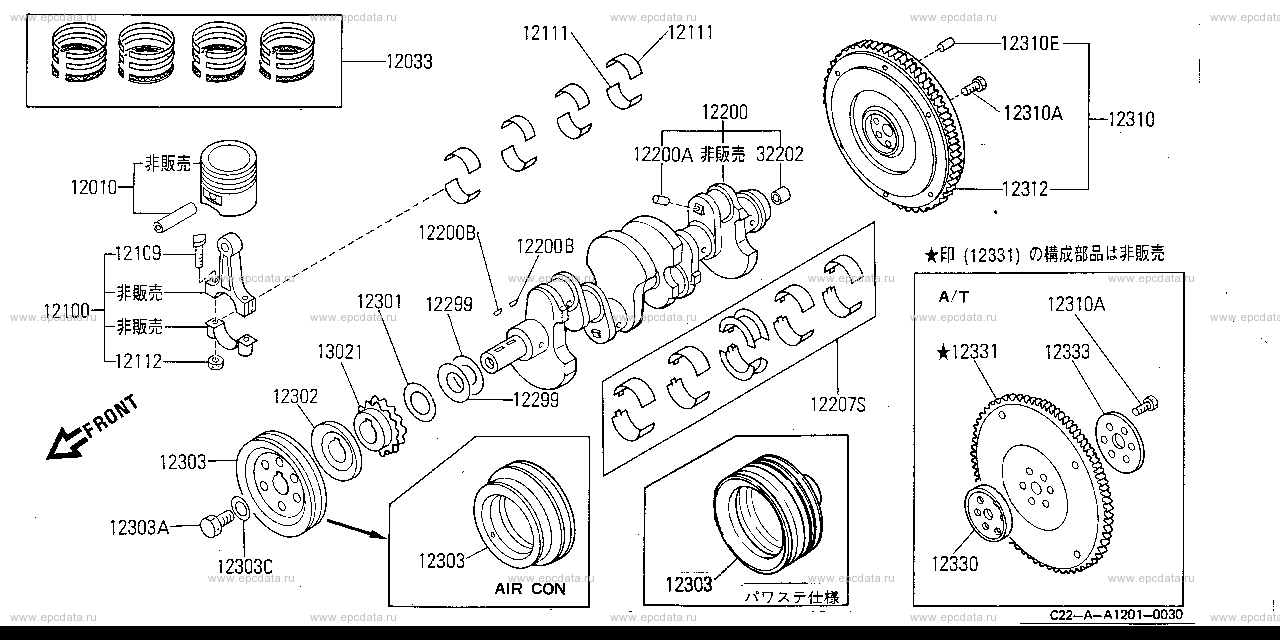

Open full screen picture

12010 - piston with pin 12033 - ring set, piston 12100 - rod complete, connecting 12109 - bolt, connecting rod 12111 - bearing, connecting rod 12112 - nut, connecting rod 12200 - crankshaft assembly 12200A - plug, crankshaft oil hole 12200B - key 12207S - bearing set, crankshaft 12299 - shim, crank sprocket 12301 - washer, packing crankshaft 12302 - thrower, oil crankshaft 12303 - pulley, crankshaft 12303A - bolt, pulley crankshaft 12303C - washer, pulley crankshaft 12310 - flywheel assembly 12310A - bolt, flywheel 12310E - dowel, clutch to flywheel 12312 - gear, ring 12330 - pilot, converter 12331 - plate assembly, drive & gear 12333 - plate, crankshaft to converter 13021 - sprocket, crankshaft 32202 - bushing, crankshaft

Vanette KPC22
