NissanPulsar / Langley / Liberta villaHN1205.1982 - ...Engine and fuel systemC1601 - carburetor & mixer (engine)16010: carburetor assembly C1601 - carburetor & mixer (engine) for Nissan Pulsar / Langley / Liberta villa HN12
| |||||||||||||||||||
16010: carburetor assembly
More than 1 spare part found. Please define it more accurately before ordering. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|

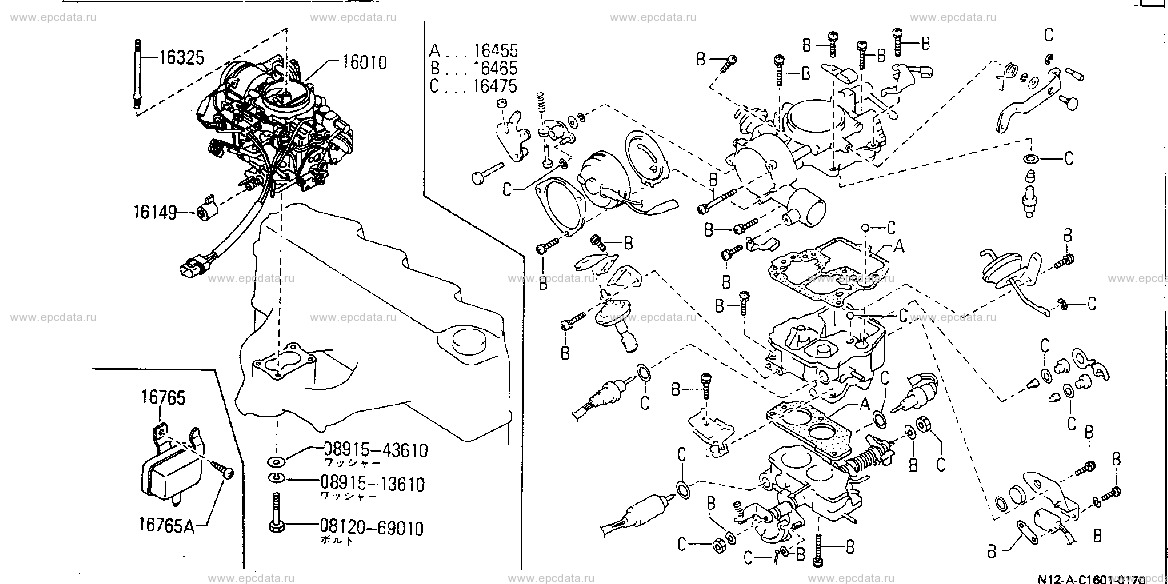

| E15S-E15S.(D,TS,FC).F5 | 05.1982 - 03.1984 | アッセンブリー＆フイッティング |
| 0812069010 0891513610 0891543610 16010 - carburetor assembly 16149 - cap, idle screw 16455 - gasket kit 16465 - screw & washer kit,A 16475 - screw & washer kit,B 16765 - switch, engine revolution 16765A - screw |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| E15S-E15S.(D,TS,FC).F5 | 05.1982 - 03.1984 | チヨークチヤンバー関係構成部品 |
| Applies for models | Manufacture period | Spec |
|---|---|---|

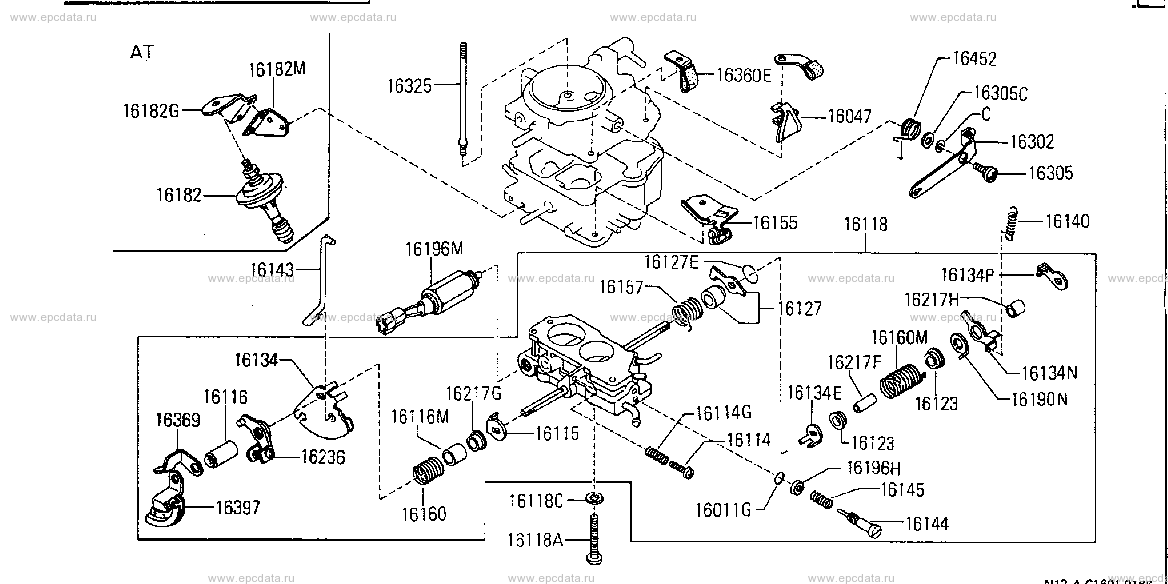

| E15S-E15S.(D,TS,FC).F5 | 05.1982 - 03.1984 | スロットル チャンバー関係構成部品 |
| 16011G - seal,O ring 16047 - plate 16114 - screw, adjust throttle 16114G - spring, screw adjust 16115 - plate, adjust 16116 - sleeve,A 16116M - sleeve,B 16118 - chamber assembly, throttle 16118A - screw 16118C - washer 16123 - collar, throttle first 16127 - plate, return 16127E - clip 16134 - lever, throttle 16134E - lever, connecting 16134N - lever, throttle switch 16134P - lever, throttle switch 16140 - spring, diaphragm 16143 - rod, pump 16144 - screw, adjust idle 16145 - spring, screw adjust 16155 - arm, wire throttle 16157 - spring, connecting 16160 - spring, throttle primary 16160M - spring, throttle assist 16182 - dashpot assembly 16182G - bracket, dashpot 16182M - bracket, dashpot 16190N - hanger, spring 16196H - holder 16196M - valve, solenoid 16217F - ｶﾗ- 16217G - ｶﾗ- 16217H - ｶﾗ- 16236 - lever 16302 - lever, pump 16305 - shaft, pump lever 16305C - washer 16325 - stud, air cleaner 16360E - clamp 16369 - lever, dashpot 16397 - lever, counter 16452 - spring, pump lever |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| E15S-5F.(D,TS,FC) | 03.1984 - ... | アッセンブリー ＆ フィッティング |
| 0812069010 0891513610 0891543610 16010 - carburetor assembly 16149 - cap, idle screw 16325 - stud, air cleaner 16455 - gasket kit 16465 - screw & washer kit,A 16475 - screw & washer kit,B 16765 - switch, engine revolution 16765A - screw |
| Applies for models | Manufacture period | Spec |
|---|---|---|

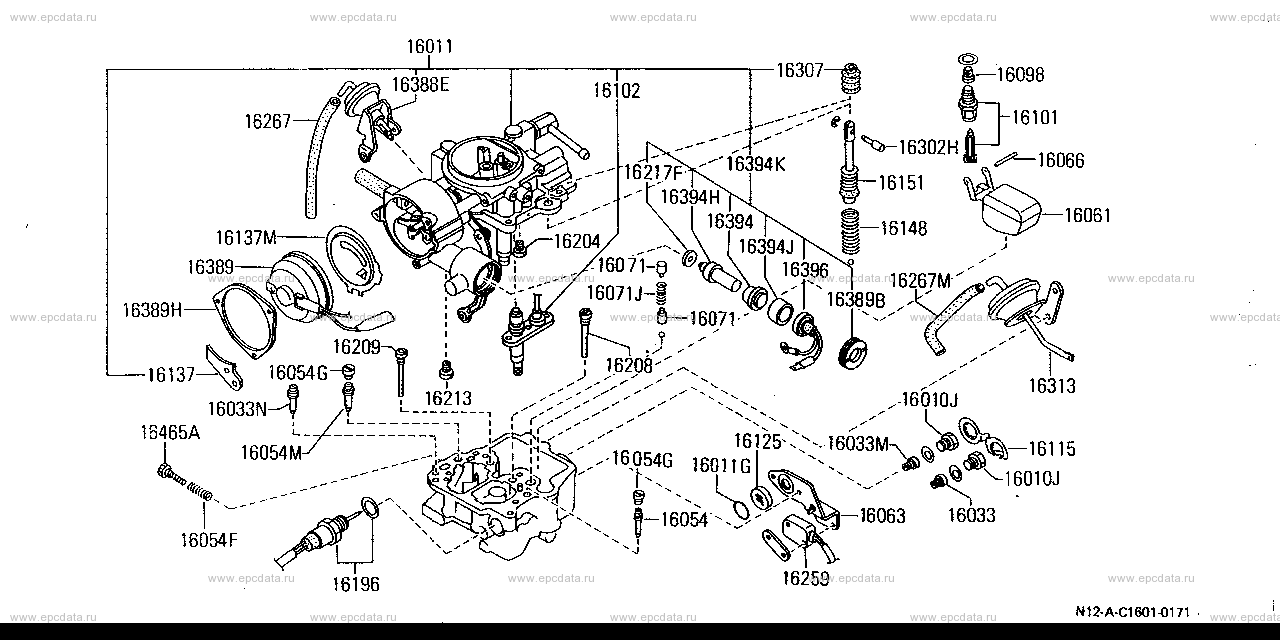

| E15S-5F.(D,TS,FC) | 03.1984 - ... | チョークチャンバー関係構成部品 |
| 16010J - plug, drain 16011 - chamber assembly, choke 16011G - seal,O ring 16033 - jet, main 16033M - jet, main 16033N - jet, mixture 16054 - jet, slow 16054F - spring 16054G - plug 16054M - jet, slow 16061 - float 16063 - cover, gauge lever 16066 - shaft, float 16071 - weight, injector 16071J - spring, injector 16098 - filter 16101 - valve, needle 16102 - valve, solenoid duty 16115 - plate, adjust 16125 - gauge, level 16137 - plate, stopping 16137M - plate, stopping rear 16148 - spring, return piston 16151 - piston 16196 - valve, solenoid anti dieseling 16204 - bleed, slow air 16208 - bleed, main air 16209 - bleed, main air 16213 - bleed, slow air 16217F - ｶﾗ- 16259 - switch, throttle 16267 - pipe, rubber 16267M - pipe, rubber carburetor 16302H - pin, cotter 16307 - cover, pump 16313 - diaphragm assembly, chamber 16388E - piston, choke 16389 - cover, thermo 16389B - nut 16389H - plate, thermo cover 16394 - PTC 16394H - ﾜﾂｸｽ 16394J - stopper 16394K - ﾜﾂｸｽ kit 16396 - cord 16465A - screw |
| Applies for models | Manufacture period | Spec |
|---|---|---|

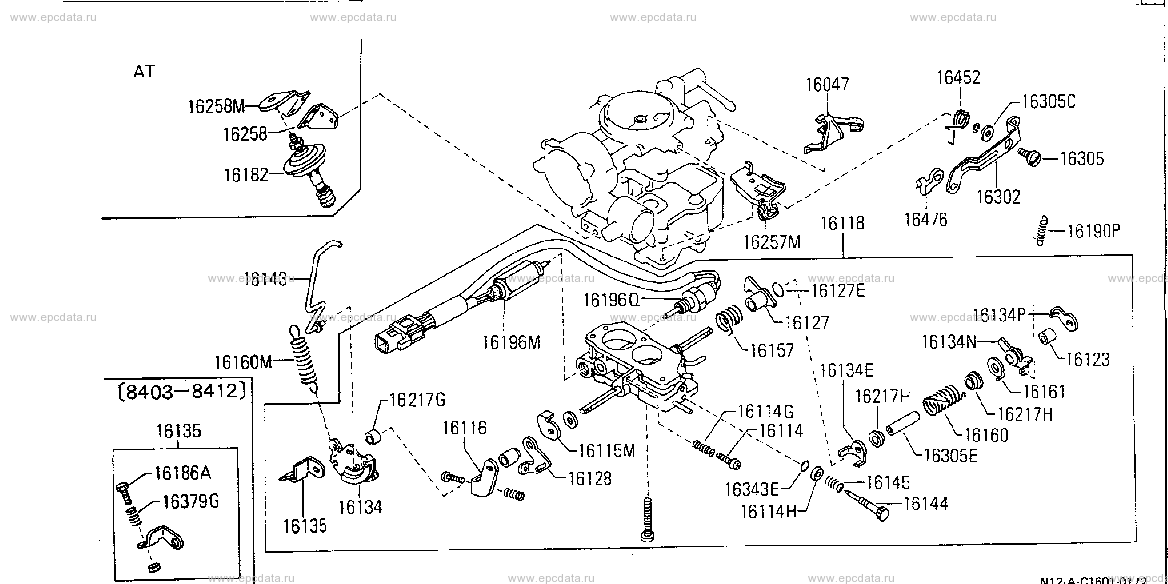

| E15S-5F.(D,TS,FC) | 03.1984 - ... | スロットル チャンバー関係構成部品 |
| 16047 - plate 16114 - screw, adjust throttle 16114G - spring, screw adjust 16114H - holder assembly, adjust screw 16115M - plate, adjust 16116 - sleeve,A 16118 - chamber assembly, throttle 16123 - collar, throttle first 16127 - plate, return 16127E - clip 16128 - cam, fast idle 16134 - lever, throttle 16134E - lever, connecting 16134N - lever, throttle switch 16134P - lever, throttle switch 16135 - lever,FICD 16143 - rod, pump 16144 - screw, adjust idle 16145 - spring, screw adjust 16157 - spring, connecting 16160M - spring, throttle assist 16161 - hanger, spring 16182 - dashpot assembly 16186A - screw 16190P - spring, lever 16196M - valve, solenoid 16196Q - valve, solenoid 16217G - ｶﾗ- 16217H - ｶﾗ- 16257M - holder, throttle wire 16258 - holder, dashpot 16258M - holder, dashpot 16302 - lever, pump 16305 - shaft, pump lever 16305C - washer 16305E - ｶﾗ- 16343E - ring 16379G - spring, adjust screw 16452 - spring, pump lever 16476 - stopper, limiter 18160 |
