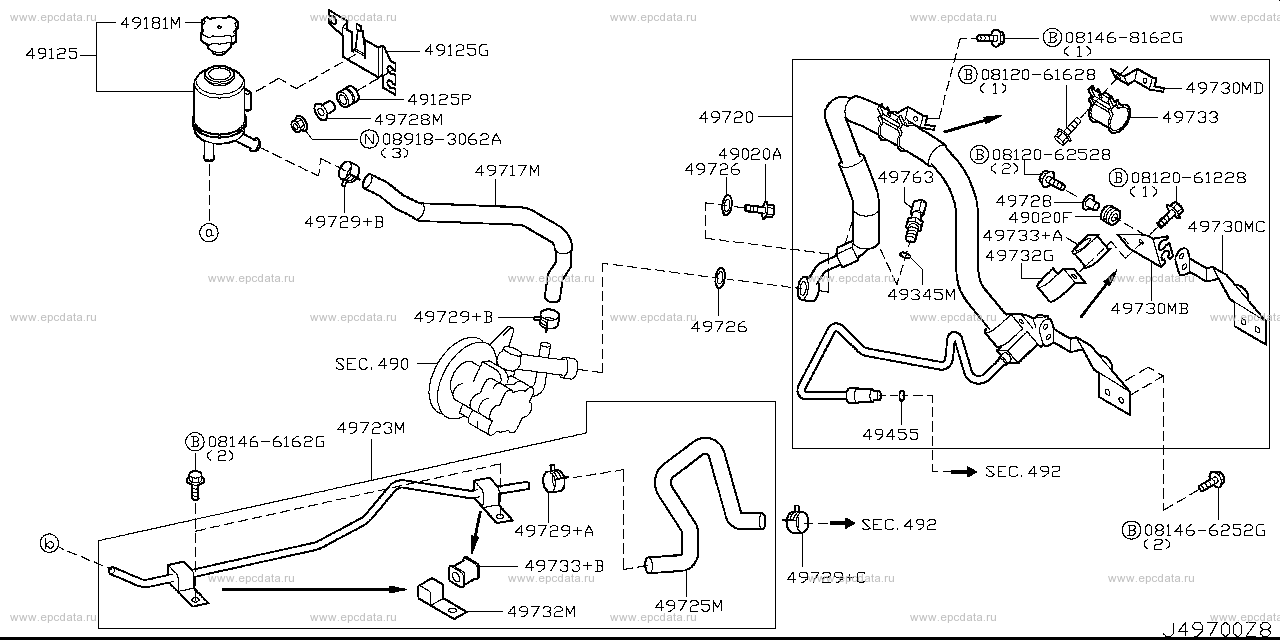

497 - power steering piping (chassis) for Nissan Presage PNU31

	Frame / Series PNU31 / U31 body W (wagon ) engine VQ35DE (gasoline 3500) drive 4WD (4 wheel drive ) Manufacture period 06.2007 - ... grade 350HWS transmission CVT (continuously variable transmission )

---

Applies for models	Manufacture period	Spec
4WD.VQ35DE	06.2007 - ...	PART-1

Open full screen picture Up to the top

0812061228 0812061628 0812062528 081466162G 081466252G 081468162G 089183062A 49020A - bolt 49020F - insulator 49125 - tank assembly, reservoir 49125G - bracket, reservoir tank 49125P - insulator 49181M - cap assembly, reservoir 49345M - seal,O ring 49455 - seal,O ring 49717M - hose assembly, suction power steering 49720 - hose assembly, pressure power steering 49723M - hose & tube assembly, power steering 49725M - hose, return power steering 49726 - washer, copper 49728 - collar, insulator 49728M - collar, insulator 49729+A - clamp 49729+B - clamp 49729+C - clamp 49730MB - bracket, tube 49730MC - bracket, tube 49730MD - bracket, tube 49732G - clamp 49732M - bracket, power steering tube 49733 - insulator 49733+A - insulator 49733+B - insulator 49763 - sensor assembly, pressure power steering

---

Applies for models	Manufacture period	Spec
4WD.VQ35DE	06.2007 - ...	PART-2

Open full screen picture Up to the top

081466122G 49020E - clip 49020EA - clip 49723MA - hose & tube assembly, power steering 49725MA - hose, return power steering 49725MB - hose, return power steering 49725MC - hose, return power steering 49729 - clamp 49729+C - clamp 49729+D - clamp 49732MA - bracket, power steering tube 49733+C - insulator 49790 - oil cooler assembly, power steering

Presage PNU31
