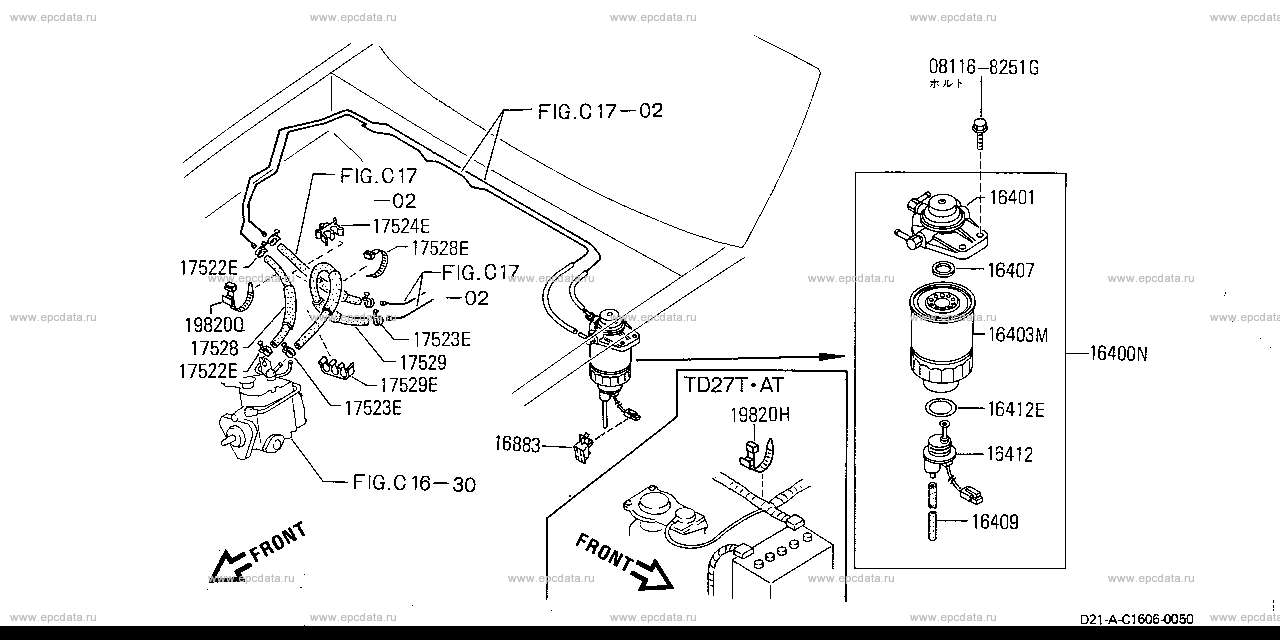

C1606 - fuel strainer & piping (engine) for Nissan Datsun Truck PMD21

	Frame / Series PMD21 / D21 ｼｬｶﾞﾀ T/LB (truck long body ) engine TD23 (2300 diesel TD type ) grade AD Manufacture period 08.1987 - 09.1989 transmission MT (manual transmission ) ｼﾌﾄﾀﾞﾝｽｳ F5 (shift 5-speed (floor)) drive 4WD (four-wheel drive )

---

Applies for models	Manufacture period	Spec
TD23	08.1987 - 08.1992	標準

Open full screen picture Up to the top

081168251G 16400N - strainer assembly, fuel 16401 - pump assembly, priming 16403M - cartridge assembly, fuel filter 16407 - packing 16409 - tube, drain 16412 - sensor assembly 16412E - seal,O ring 16883 - clip 17522E - clamp, hose 17523E - clamp, hose 17524E - clamp, hose 17528 - hose assembly, fuel 17528E - clamp, hose 17529 - hose assembly, fuel return 17529E - clamp, hose 19820H - clip 19820Q - clip

---

Applies for models	Manufacture period	Spec
*TD23	08.1987 - 08.1992	寒冷地仕様

Open full screen picture Up to the top

16401 - pump assembly, priming 16403M - cartridge assembly, fuel filter 16407 - packing 16409 - tube, drain 16412 - sensor assembly 16412E - seal,O ring 16412F - seal,O ring 16454M - connector 16464M - switch assembly, temperature 16753M - bolt, eye

Datsun Truck PMD21
