497 - power steering piping (chassis) for Nissan Cefiro PA33
| |||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|

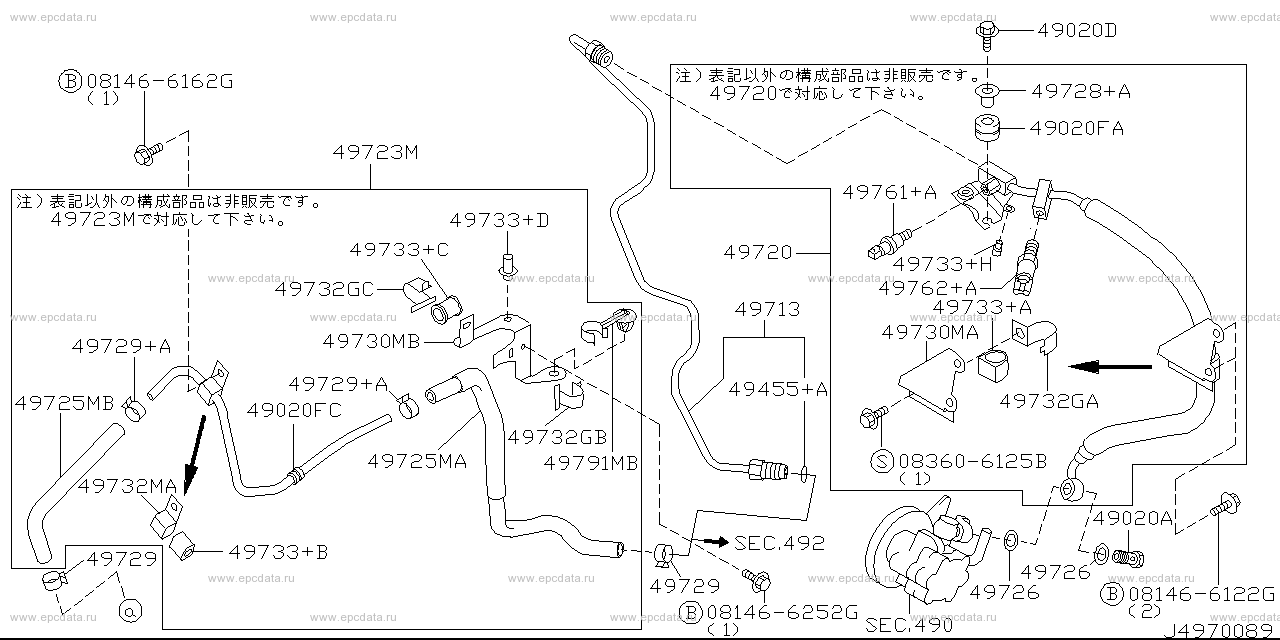

| VQ25DD | 12.1998 - 02.2000 | パート １ |
| 081466122G 081466162G 081466252G 083606125B 49020A - bolt 49020FA - insulator 49455+A - seal,O ring 49713 - tube, connector to pump 49720 - hose assembly, pressure power steering 49723M - hose & tube assembly, power steering 49725MA - hose, return power steering 49725MB - hose, return power steering 49726 - washer, copper 49728+A - collar, insulator 49729 - clamp 49729+A - clamp 49730MA - bracket, tube 49730MB - bracket, tube 49732GA - clamp 49732GB - clamp 49732GC - clamp 49732MA - bracket, power steering tube 49733+A - insulator 49733+B - insulator 49733+C - insulator 49733+D - insulator 49733+H - insulator 49761+A - switch, pressure power steering 49762+A - valve assembly, control 49791MB - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|

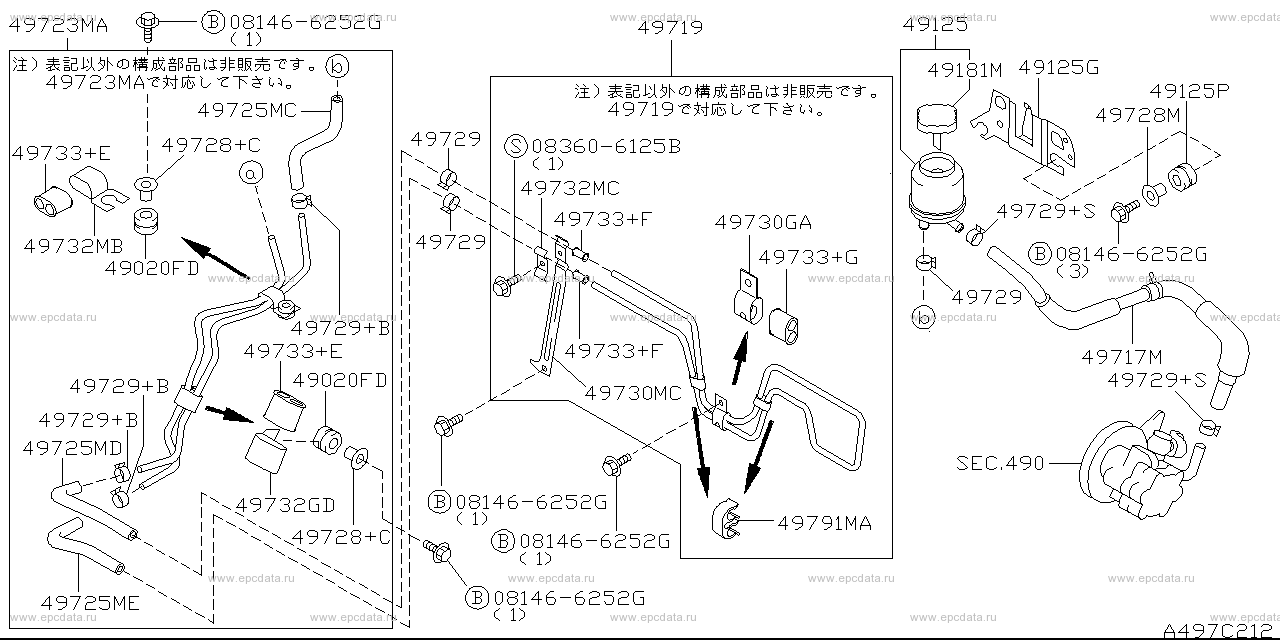

| VQ25DD | 12.1998 - 08.2000 | パート ２ |
| 081466252G 083606125B 49125 - tank assembly, reservoir 49125G - bracket, reservoir tank 49125P - insulator 49181M - cap assembly, reservoir 49717M - hose assembly, suction power steering 49719 - tube assembly, power steering 49723MA - hose & tube assembly, power steering 49725MC - hose, return power steering 49725MD - hose, return power steering 49725ME - hose, return power steering 49728M - collar, insulator 49729 - clamp 49729+B - clamp 49729+S - clamp 49730GA - clamp 49730MC - bracket, tube 49732GD - clamp 49732MB - bracket, power steering tube 49732MC - bracket, power steering tube 49733+E - insulator 49733+F - insulator 49733+G - insulator 49791MA - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| VQ25DD | 01.2001 - 08.2002 | パート １ |
| 081466122G 081466162G 081466252G 083606125B 49020A - bolt 49020D - screw 49020FA - insulator 49020FC - insulator 49455+A - seal,O ring 49713 - tube, connector to pump 49720 - hose assembly, pressure power steering 49723M - hose & tube assembly, power steering 49725MA - hose, return power steering 49725MB - hose, return power steering 49726 - washer, copper 49728+A - collar, insulator 49729 - clamp 49729+A - clamp 49730MA - bracket, tube 49730MB - bracket, tube 49732GA - clamp 49732GB - clamp 49732GC - clamp 49732MA - bracket, power steering tube 49733+A - insulator 49733+B - insulator 49733+C - insulator 49733+D - insulator 49733+H - insulator 49761+A - switch, pressure power steering 49762+A - valve assembly, control 49791MB - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| VQ25DD | 01.2001 - 01.2002 | パート ２ |
| 081466252G 49125 - tank assembly, reservoir 49125G - bracket, reservoir tank 49125P - insulator 49181M - cap assembly, reservoir 49717M - hose assembly, suction power steering 49723MA - hose & tube assembly, power steering 49725MC - hose, return power steering 49725MD - hose, return power steering 49728M - collar, insulator 49729 - clamp 49729+B - clamp 49729+S - clamp 49732GD - clamp 49732MB - bracket, power steering tube 49733 - insulator 49733+E - insulator 49791MA - clip 49791MC - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| VQ25DD | 08.2000 - 01.2001 | パート ２ |
| 081466252G 49125 - tank assembly, reservoir 49125G - bracket, reservoir tank 49125P - insulator 49181M - cap assembly, reservoir 49717M - hose assembly, suction power steering 49723MA - hose & tube assembly, power steering 49725MC - hose, return power steering 49725MD - hose, return power steering 49728M - collar, insulator 49729 - clamp 49729+B - clamp 49729+S - clamp 49732GD - clamp 49732MB - bracket, power steering tube 49733 - insulator 49733+E - insulator 49791MA - clip 49791MC - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| VQ25DD | 01.2002 - 08.2002 | パート ２ |
| 081466252G 49125 - tank assembly, reservoir 49125G - bracket, reservoir tank 49125P - insulator 49181M - cap assembly, reservoir 49717M - hose assembly, suction power steering 49723MA - hose & tube assembly, power steering 49725MC - hose, return power steering 49725MD - hose, return power steering 49728M - collar, insulator 49729 - clamp 49729+B - clamp 49729+S - clamp 49732GD - clamp 49732MB - bracket, power steering tube 49733 - insulator 49733+E - insulator 49791MA - clip 49791MC - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| VQ25DD | 02.2000 - 01.2001 | パート １ |
| 081466122G 081466162G 081466252G 083606125B 49020A - bolt 49020D - screw 49020FA - insulator 49020FC - insulator 49455+A - seal,O ring 49713 - tube, connector to pump 49720 - hose assembly, pressure power steering 49723M - hose & tube assembly, power steering 49725MA - hose, return power steering 49725MB - hose, return power steering 49726 - washer, copper 49728+A - collar, insulator 49729 - clamp 49729+A - clamp 49730MA - bracket, tube 49730MB - bracket, tube 49732GA - clamp 49732GB - clamp 49732GC - clamp 49732MA - bracket, power steering tube 49733+A - insulator 49733+B - insulator 49733+C - insulator 49733+D - insulator 49733+H - insulator 49761+A - switch, pressure power steering 49762+A - valve assembly, control 49791MB - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| *VQ25DD.XCM/G | 12.1998 - 02.2000 | ﾊﾟｰﾄ 1 ｱｸﾃｨﾌﾞ ｻｽﾍﾟﾝｼｮﾝ仕様 |
| 081466122G 081466252G 083606125B 49020A - bolt 49020FA - insulator 49020FC - insulator 49455+A - seal,O ring 49713 - tube, connector to pump 49720 - hose assembly, pressure power steering 49723M - hose & tube assembly, power steering 49725MA - hose, return power steering 49725MB - hose, return power steering 49726 - washer, copper 49728+A - collar, insulator 49728+B - collar, insulator 49729 - clamp 49729+A - clamp 49730MA - bracket, tube 49730MB - bracket, tube 49732GA - clamp 49732GB - clamp 49732GC - clamp 49732MA - bracket, power steering tube 49733+A - insulator 49733+B - insulator 49733+C - insulator 49733+D - insulator 49733+H - insulator 49761+A - switch, pressure power steering 49762+A - valve assembly, control 49791MB - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| *VQ25DD.XCM/G | 12.1998 - 01.2001 | ﾊﾟｰﾄ 2 ｱｸﾃｨﾌﾞ ｻｽﾍﾟﾝｼｮﾝ仕様 |
| 081466252G 083606125B 49020FD - insulator 49125 - tank assembly, reservoir 49125G - bracket, reservoir tank 49125P - insulator 49181M - cap assembly, reservoir 49717M - hose assembly, suction power steering 49719 - tube assembly, power steering 49723MA - hose & tube assembly, power steering 49725MC - hose, return power steering 49725MD - hose, return power steering 49725ME - hose, return power steering 49728+C - collar, insulator 49728M - collar, insulator 49729 - clamp 49729+B - clamp 49729+S - clamp 49730GA - clamp 49730MC - bracket, tube 49732GD - clamp 49732MB - bracket, power steering tube 49732MC - bracket, power steering tube 49733+E - insulator 49733+F - insulator 49733+G - insulator 49791MA - clip |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| *VQ25DD.XCM/G | 02.2000 - 01.2001 | ﾊﾟｰﾄ 1 ｱｸﾃｨﾌﾞ ｻｽﾍﾟﾝｼｮﾝ仕様 |
| 081466122G 081466252G 083606125B 49020A - bolt 49020D - screw 49020FA - insulator 49020FC - insulator 49455+A - seal,O ring 49713 - tube, connector to pump 49720 - hose assembly, pressure power steering 49723M - hose & tube assembly, power steering 49725MA - hose, return power steering 49725MB - hose, return power steering 49726 - washer, copper 49728+A - collar, insulator 49728+B - collar, insulator 49729 - clamp 49729+A - clamp 49730MA - bracket, tube 49730MB - bracket, tube 49732GA - clamp 49732GB - clamp 49732GC - clamp 49732MA - bracket, power steering tube 49733+A - insulator 49733+B - insulator 49733+C - insulator 49733+D - insulator 49733+H - insulator 49761+A - switch, pressure power steering 49762+A - valve assembly, control 49791MB - clip |
