NissanCaravan / HomyVWMGE2405.1997 - ...Chassis and transmission341 - transmission control & linkage (unit)

341 - transmission control & linkage (unit) for Nissan Caravan / Homy VWMGE24



Frame / SeriesVWMGE24 / VE24 body LV (light van )engine QD32 (3200 diesel )wheel base LB (long body )
Manufacture period05.1997 - ...drive 4WD (4 wheel drive )door / deck 4D.LD (4-door low floor )roof /ｲﾝｽｳSR.3/6/9 (standard roof 3/6/9-seater )
  grade DX (DX or DX-S)transmission MT.F5 (manual transmission 5-speed )

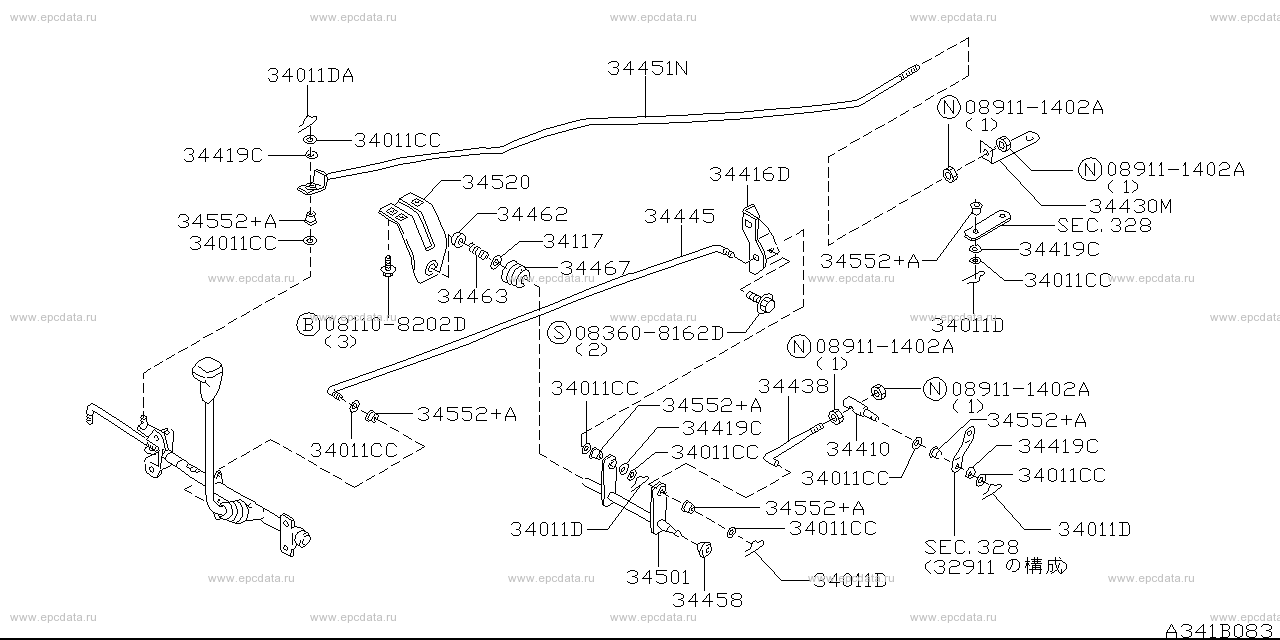

Scheme 341B_001 Scheme 341B_003
Applies for modelsManufacture periodSpec
4WD.QD32.MT.F505.1997 - 06.1999リンケージ
LV.4WD.SR.3.QD32.MT.F5 +RV.4WD.QD32 +SB.4WD.QD32 +LB.4WD.(4D.LD+5D.LD).SR.3/6.QD32.MT.F5 +SLB.4WD.QD32.MT.F5 +4WD.5D.FD.QD32.MT.F5 +4WD.(SR.2/5+SR.3/6/9).QD32.MT.F5 +SR.2/5/8.QD3206.1999 - ...リンケージ

Open full screen pictureOpen full screen picture
Up to the top

081108202D
083608162D
089111402A
34011CC - washer
34011D - pin
34011DA - pin
34117 - seat, spring
34410 - trunnion, shift rod
34416D - bracket, rod guide
34419C - washer, spring
34430M - lever assembly, select
34438 - rod, shift
34445 - rod, shift
34451N - rod, select lower
34458 - cover, dust cross shaft inner RH
34462 - bush, special
34463 - spring, retaining
34467 - cover, dust cross shaft
34501 - shaft assembly, cross
34520 - bracket, cross shaft
34552+A - insulator
Applies for modelsManufacture periodSpec
4WD.QD32.MT.F505.1997 - 06.1999コントロール デバイス
LV.4WD.SR.3.QD32.MT.F5 +RV.4WD.QD32 +SB.4WD.QD32 +LB.4WD.(4D.LD+5D.LD).SR.3/6.QD32.MT.F5 +SLB.4WD.QD32.MT.F5 +4WD.5D.FD.QD32.MT.F5 +4WD.(SR.2/5+SR.3/6/9).QD32.MT.F5 +SR.2/5/8.QD3206.1999 - ...コントロール デバイス

Open full screen pictureOpen full screen picture
Up to the top

009225085A
009231082A
083608162D
089117081A
089151382A
32841C - rubber, control lever
32865 - knob, control lever
34011C - washer
34011CA - washer
34011CB - washer
34011CC - washer
34011CE - washer
34011D - pin
34102 - device assembly, transmission control
34103 - rod assembly, control
34103M - rod assembly, control
34104 - bracket, support upper
34110 - lever assembly, control
34113 - insert, control rod
34116 - spring, return
34122M - boot, dust hand lever
34123 - cover, dust
34123+A - cover, dust
34123+B - cover, dust
34124 - pin, pivot hand lever
34140N - stopper, hand lever
34400P - bracket assembly, support lower
34409M - pin, pivot
34410H - pin
34415 - rod, select
34419C - washer, spring
34430 - lever, select lower control
34430MA - lever assembly, select
34552 - insulator

Nissan Caravan / Homy genuine parts
