NissanAvenirPW1001.1993 - 08.1995Engine and fuel system118 - crank case ventilation (engine)

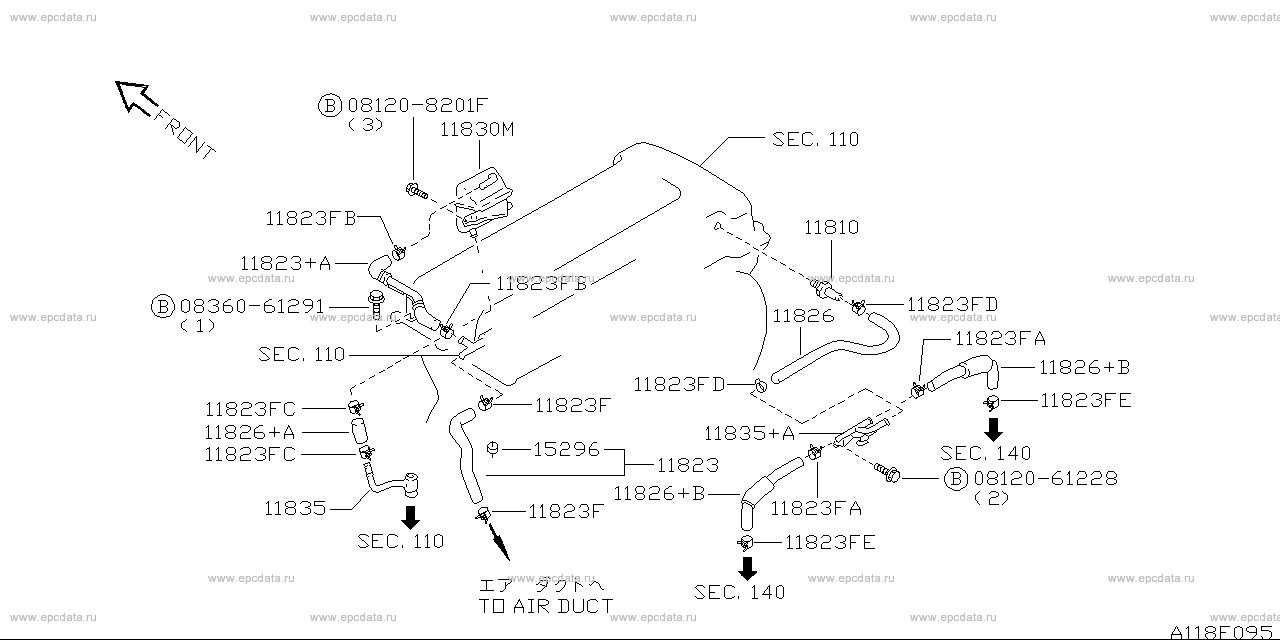

118 - crank case ventilation (engine) for Nissan Avenir PW10



Frame / SeriesPW10 / W10 body W (wagon )engine SR20DE (2000 gasoline twincam EGI)drive 2WD (two-wheel drive )
Manufacture period01.1993 - 08.1995grade 2.0EF (type 2 .0EF)transmission AT (automatic transmission )


Applies for modelsManufacture periodSpec
SR20DE01.1993 - 08.1995

Open full screen pictureOpen full screen picture

0812061228
081208201F
0836061291
11810 - valve assembly, blow-by control
11823 - hose assembly, blow by A
11823+A - hose assembly, blow by A
11823F - clamp, hose A
11823FA - clamp, hose A
11823FB - clamp, hose A
11823FC - clamp, hose A
11823FD - clamp, hose A
11823FE - clamp, hose A
11826 - hose, blow by A
11826+A - hose, blow by A
11826+B - hose, blow by A
11830M - separator assembly, breather
11835 - pipe assembly, blow by
11835+A - pipe assembly, blow by
15296 - arrestor frame

Nissan Avenir genuine parts
